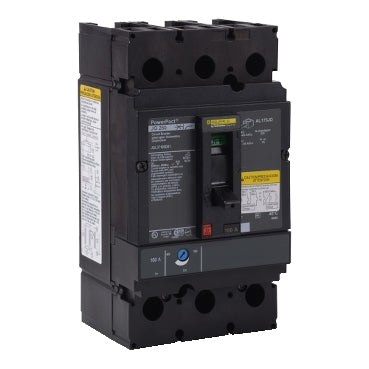

Square D JGL37250D82 Circuit Breaker | 600V 250A 3P 20kA@500VDC Lug In/Lug Out Powerpact

Product Description:
The Square D JGL37250D82 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and an AIC rating of 20kA@500VDC. This breaker uses Lug In/Lug Out connections and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: JGL37250D82
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 20kA@500VDC
✔ Connection: Lug In/Lug Out
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 250A/J
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 3/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901496397
✔ GTIN: 00785901865001
✔ Country of Origin: United States
✔ Dimensions: Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.27
✔ Panel Type: Free Standing
✔ Standards: BS, CCC, CE Marked, CEI, CSA Certified, Federal Specification W-C-375B/GEN, HACR, HID, IEC, NEMA, NMX, NOM, SWD, UL Listed, UNE, UTE, VDE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
