Square D JGP36200 Circuit Breaker | Powerpact JGP 600V 200A

Product Description:

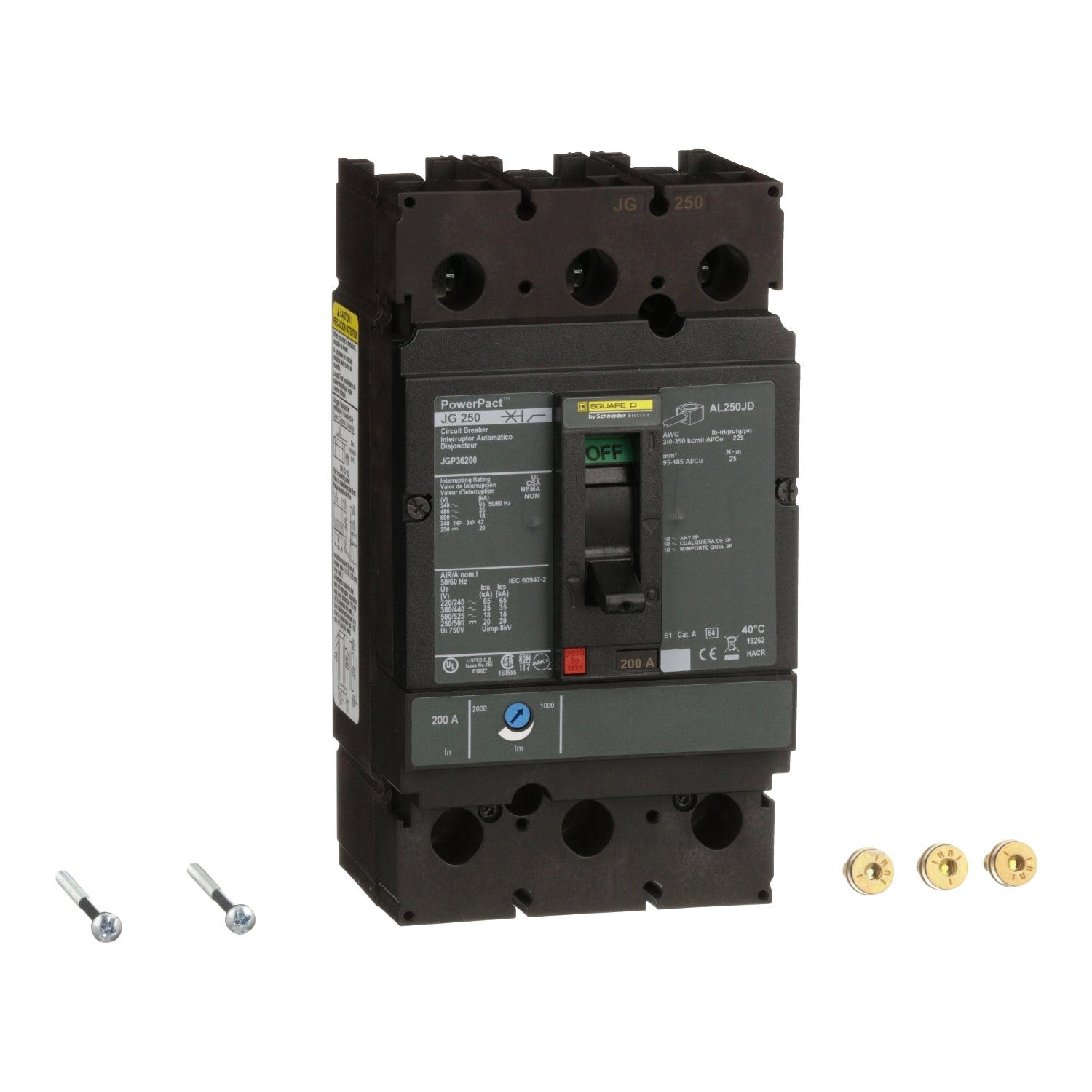

The Square D JGP36200 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 200A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: JGP36200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGP
✔ Voltage: 600V
✔ Amperage: 200A
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: J
✔ Wire Size: Min. 3/0 AWG (Cu/Al), Max. 350 kcmil (Cu/Al)
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901583127
✔ GTIN: 00785901583127
✔ Country of Origin: Mexico
