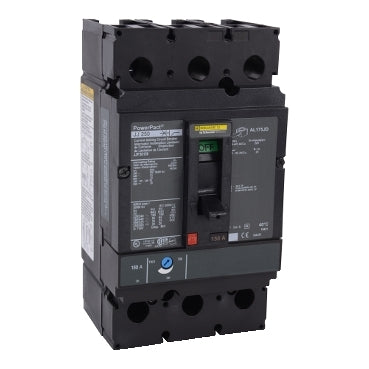

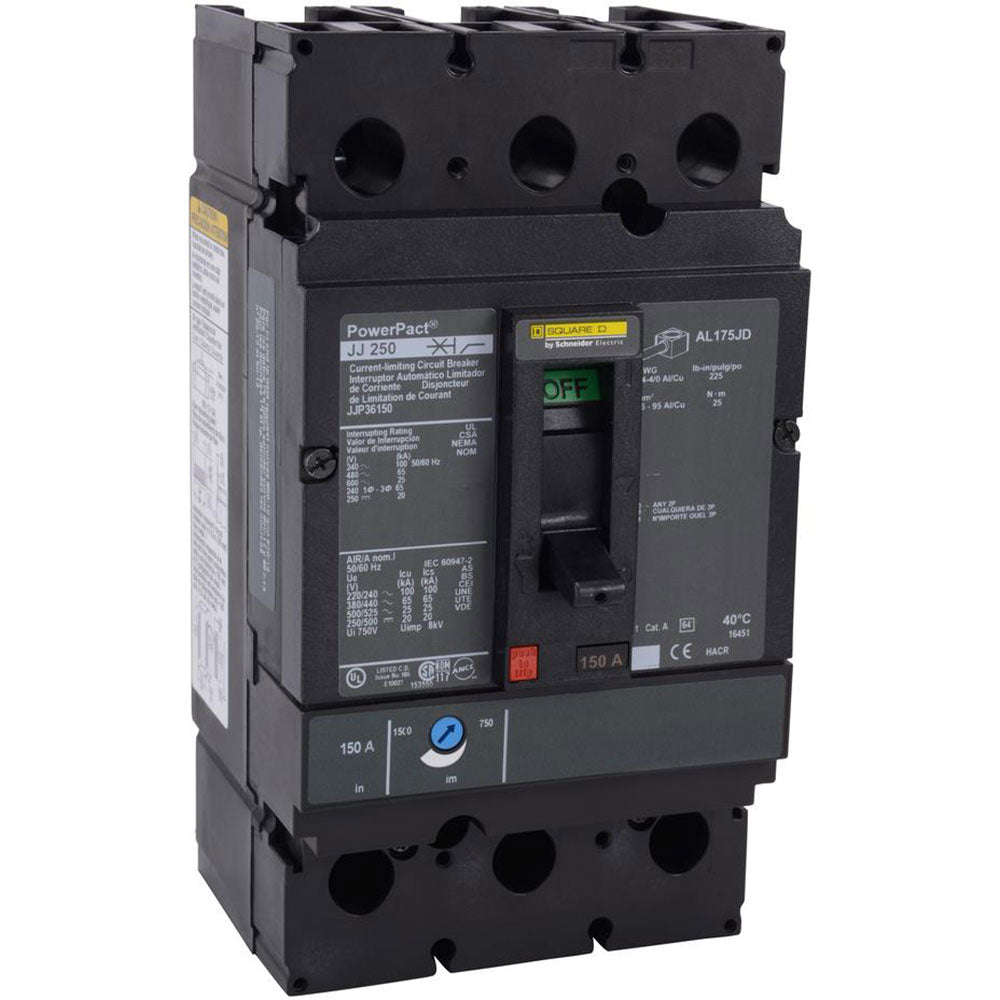

Square D JGP36250U31X Circuit Breaker | 600V 250A 3P 35kA@480V Bolt-On Powerpact

Product Description:
The Square D JGP36250U31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: JGP36250U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGP
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Solid State
✔ UPC: 060648628326
✔ GTIN: 03606486283264
✔ Dimensions: Depth 3.39 in (86 mm) Width 4.09 in (104 mm) Height 7.52 in (191 mm)
✔ Weight: 2.35
✔ Certification: CE, UL, CSA, NEMA, NOM, IEC
✔ Wire Size: AWG 3/0 to 350KCmil aluminium/copper
