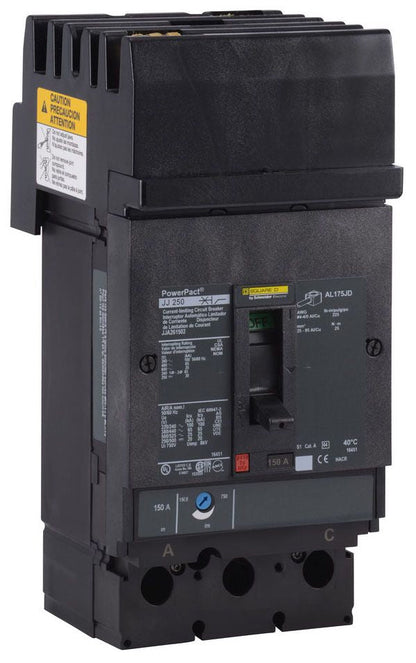

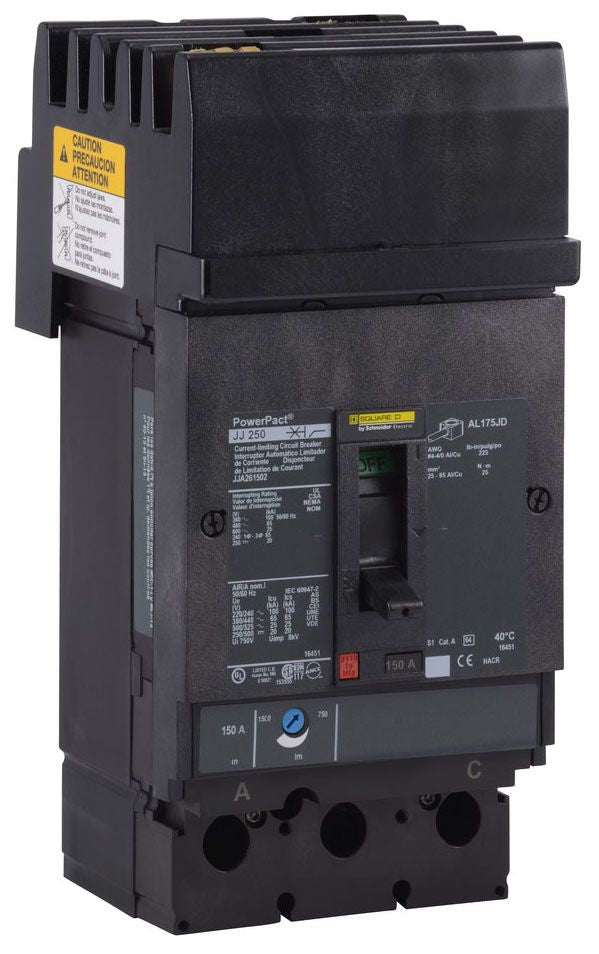

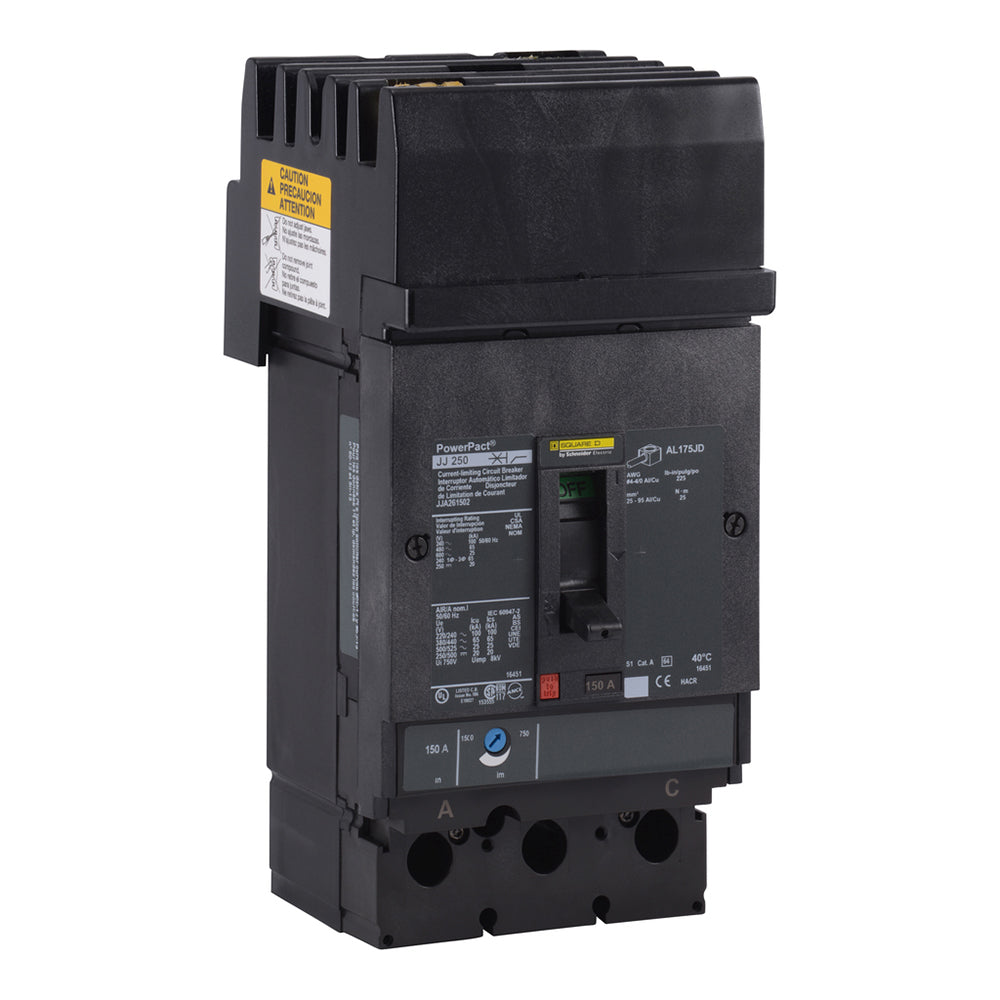

Square D JJA262002 Circuit Breaker | 600V 200A 2P 65kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D JJA262002 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 200A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection. It is ideal for industrial and commercial electrical systems.

Key Features:
✔ Part Number: JJA262002
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJA
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: J
✔ Wire Size: Min. 3/0 AWG (Cu/Al), Max. 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: AC
✔ UPC: 785901939160
✔ GTIN: 00785901939160
✔ Country of Origin: United States
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 2.71
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
