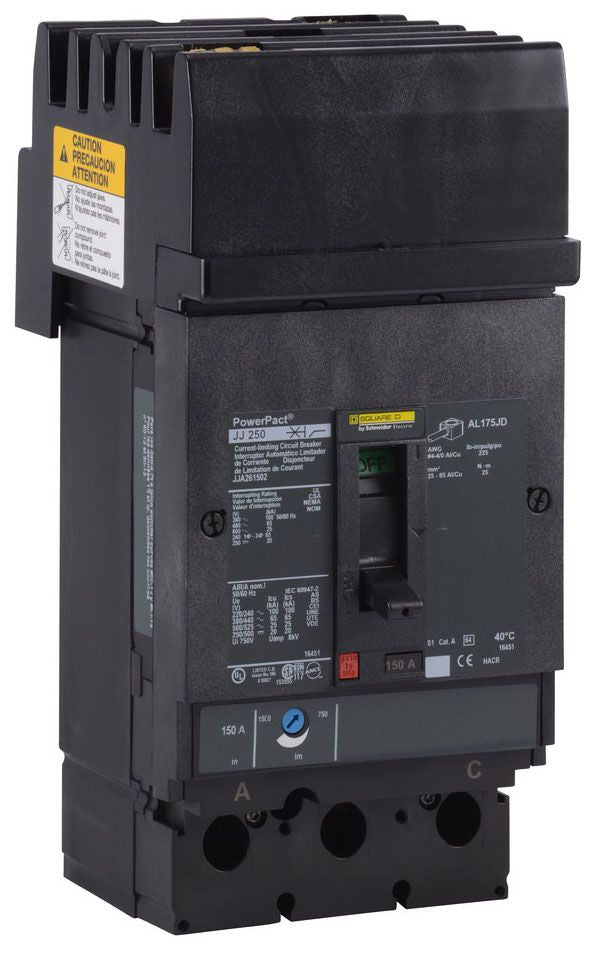

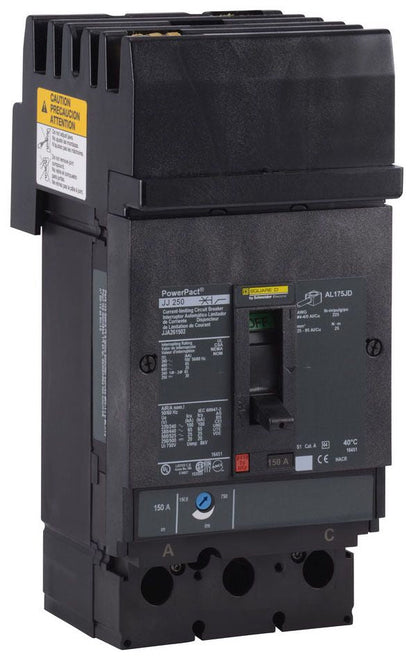

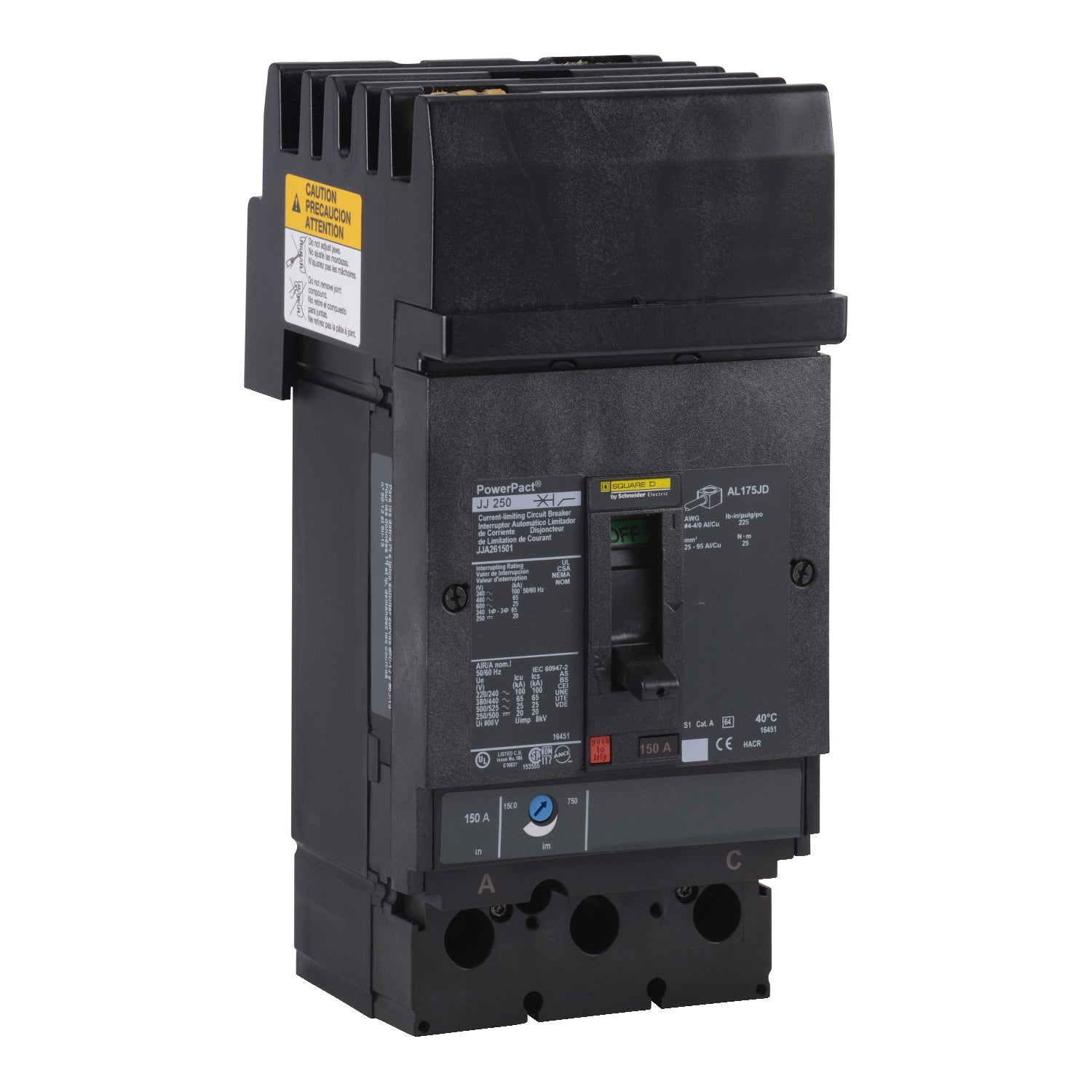

Square D JJA262501 Circuit Breaker | 600V 250A 2P 65kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D JJA262501 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 250A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: JJA262501
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901546344
✔ GTIN: 00785901546344
✔ Country of Origin: United States

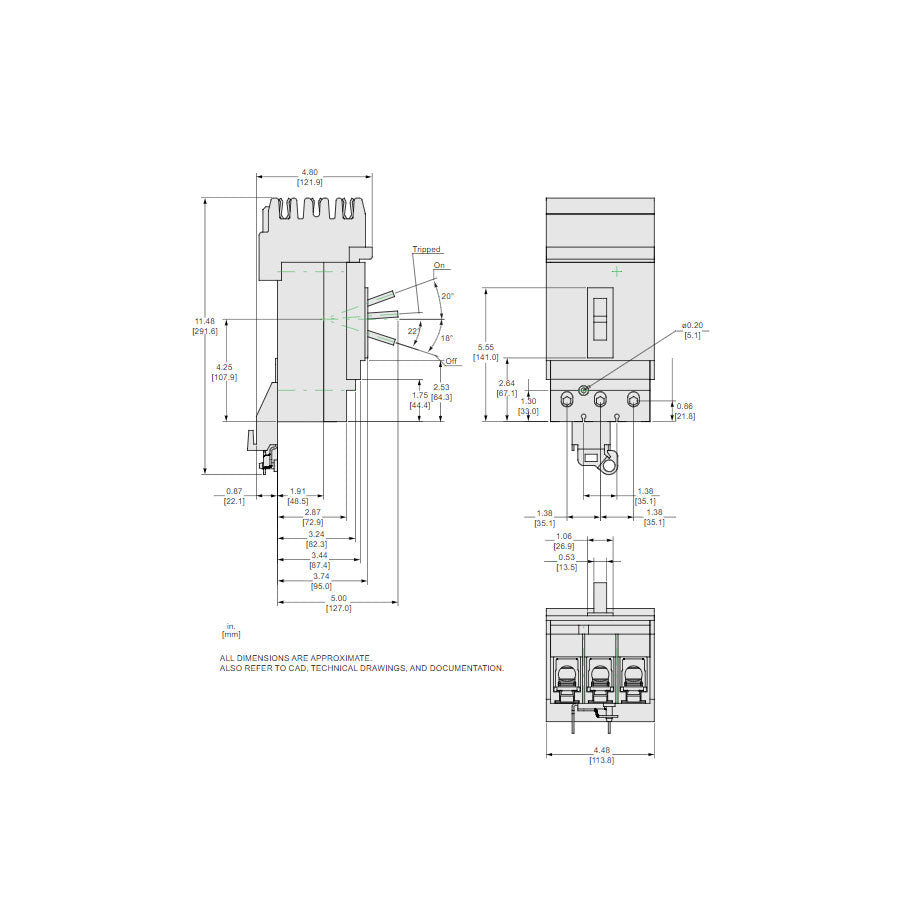

✔ Dimensions: Height 7.52 in (191 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 2.04
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
