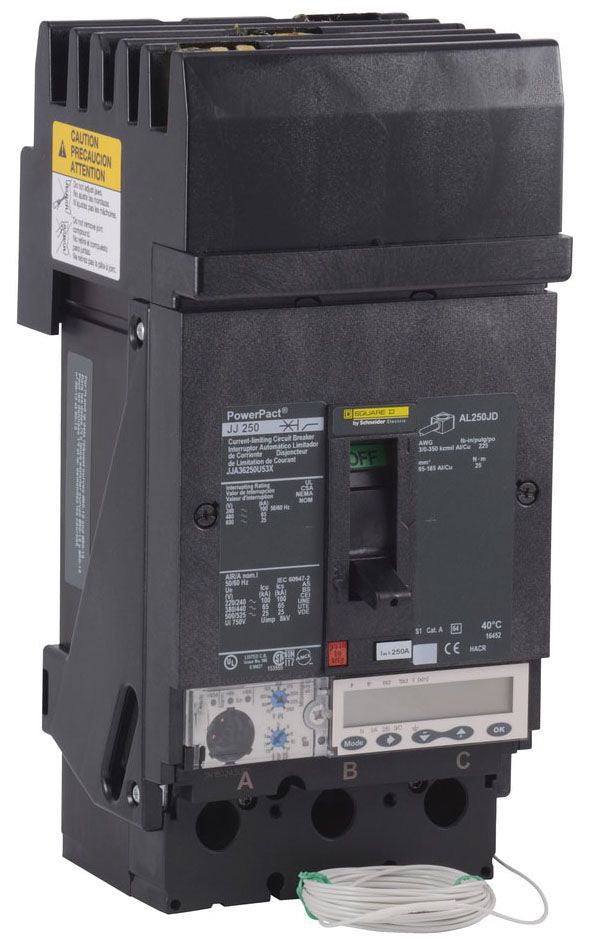

Square D JJA36250U53X Circuit Breaker | 600V 250A 3P 65kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D JJA36250U53X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 250 amp rating with a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: JJA36250U53X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: BA
✔ UPC: 078590194925
✔ GTIN: 00785901949251
✔ Country of Origin: United States
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 2.27
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
