Product Description:

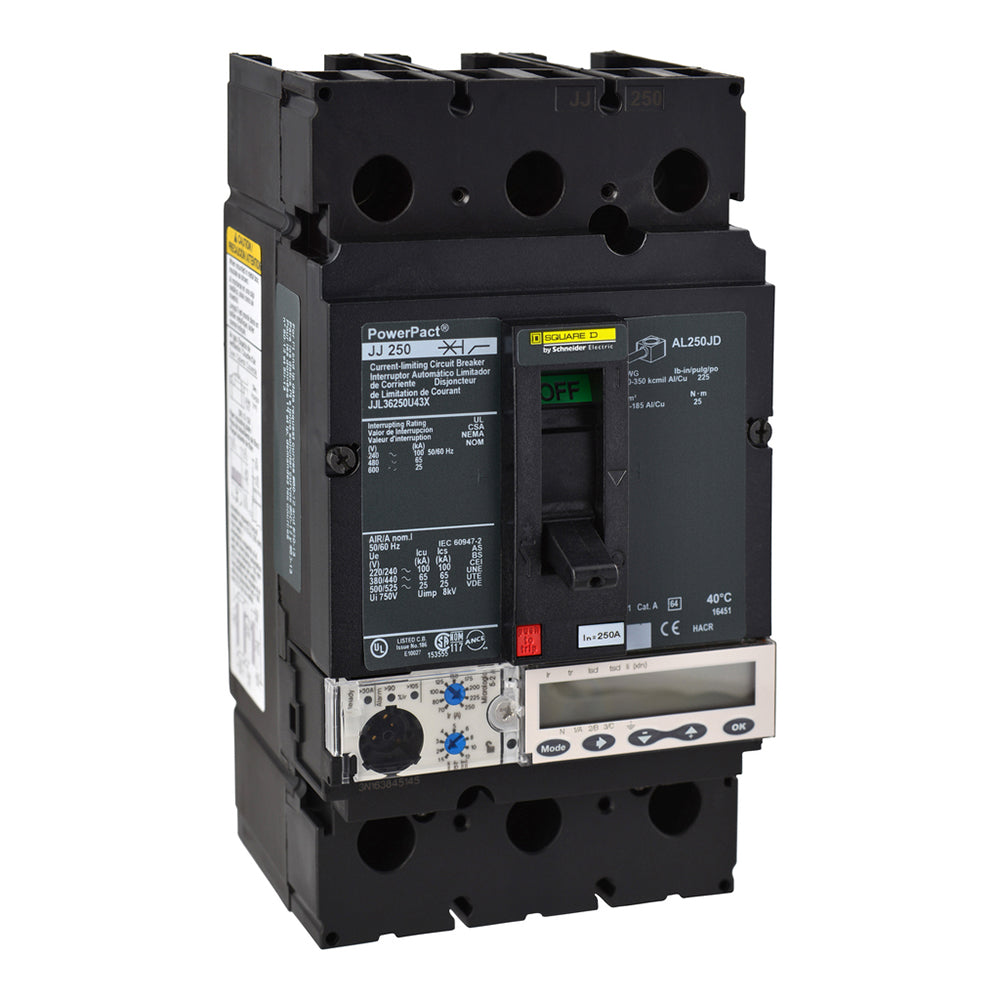

The Square D JJL36250CU43X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and a 65kA@480V AIC rating. This circuit breaker uses a Feed-Thru connection and includes Solid State protection for reliable performance.
Key Features:
✔ Part Number: JJL36250CU43X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Solid State
✔ GTIN: 03606486283394
✔ Dimensions: Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.27
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
The Square D JJL36250CU43X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and a 65kA@480V AIC rating. This circuit breaker uses a Feed-Thru connection and includes Solid State protection for reliable performance.
Key Features:
✔ Part Number: JJL36250CU43X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Solid State
✔ GTIN: 03606486283394
✔ Dimensions: Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.27
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
