Square D

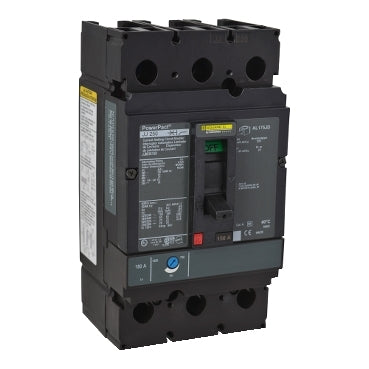

Square D JJM36150 Circuit Breaker | 600V 150A 3P 65kA@480V Bolt-On Powerpact
Square D JJM36150 Circuit Breaker | 600V 150A 3P 65kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$6,196.42 USD
Regular price
$0.00 USD
Sale price
$6,196.42 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D JJM36150 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 150A rating and 65kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: JJM36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJM
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Thermal Magnetic
✔ UPC: 060648628341
✔ GTIN: 03606486283417
✔ Dimensions: Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.27
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
The Square D JJM36150 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 150A rating and 65kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: JJM36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJM
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Thermal Magnetic
✔ UPC: 060648628341
✔ GTIN: 03606486283417
✔ Dimensions: Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.27
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
