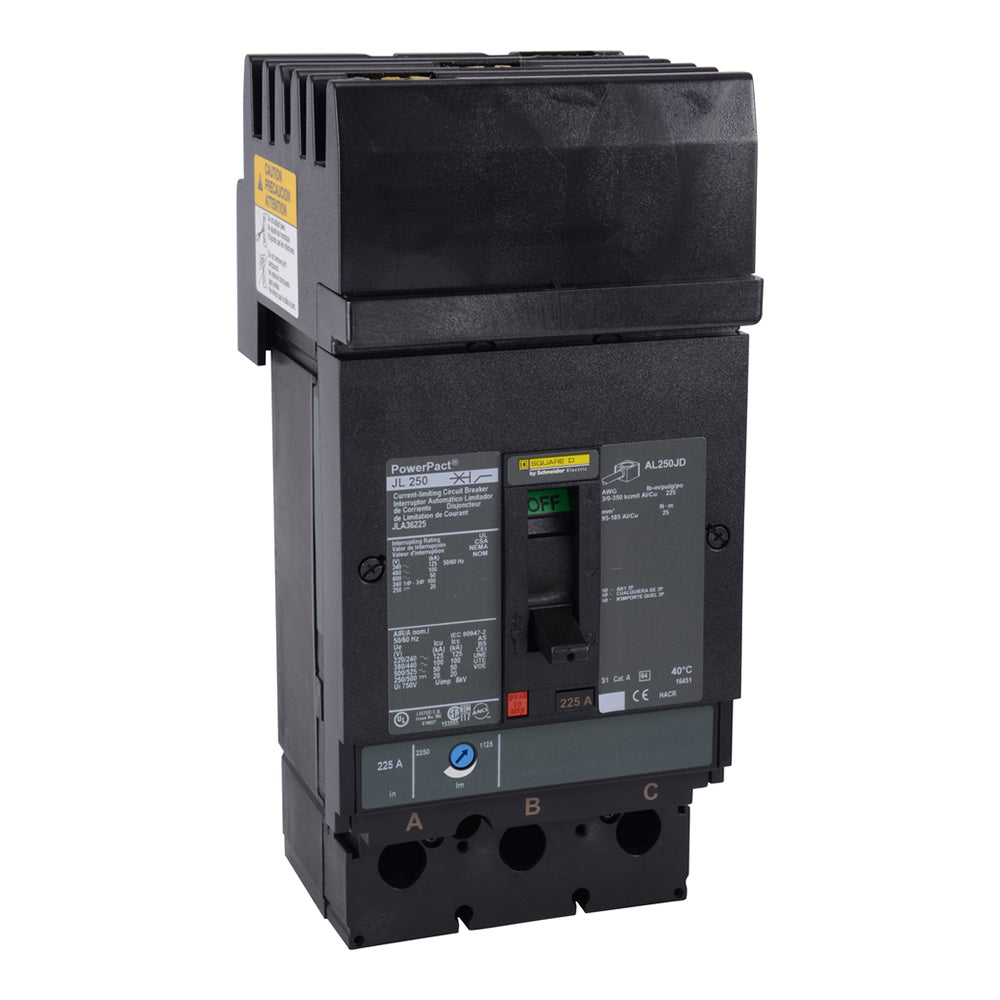

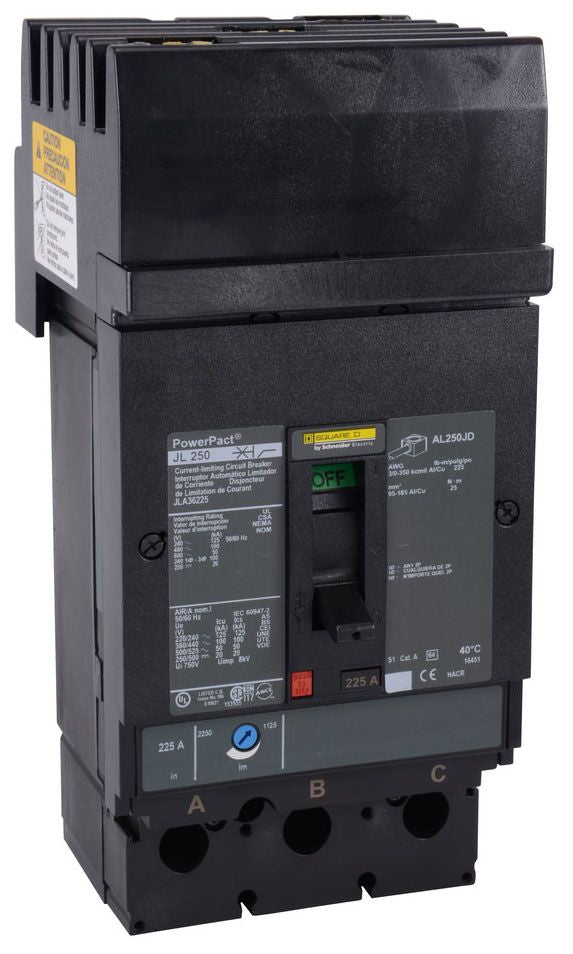

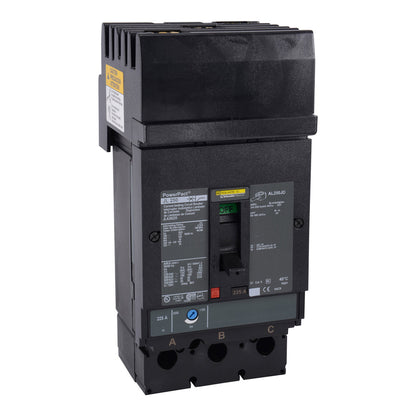

Square D JLA36150 Circuit Breaker | 600V 150A 3P 100kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D JLA36150 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 150A rating and 100kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: JLA36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JLA
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: L
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901700722
✔ GTIN: 00785901700722
✔ Country of Origin: United States

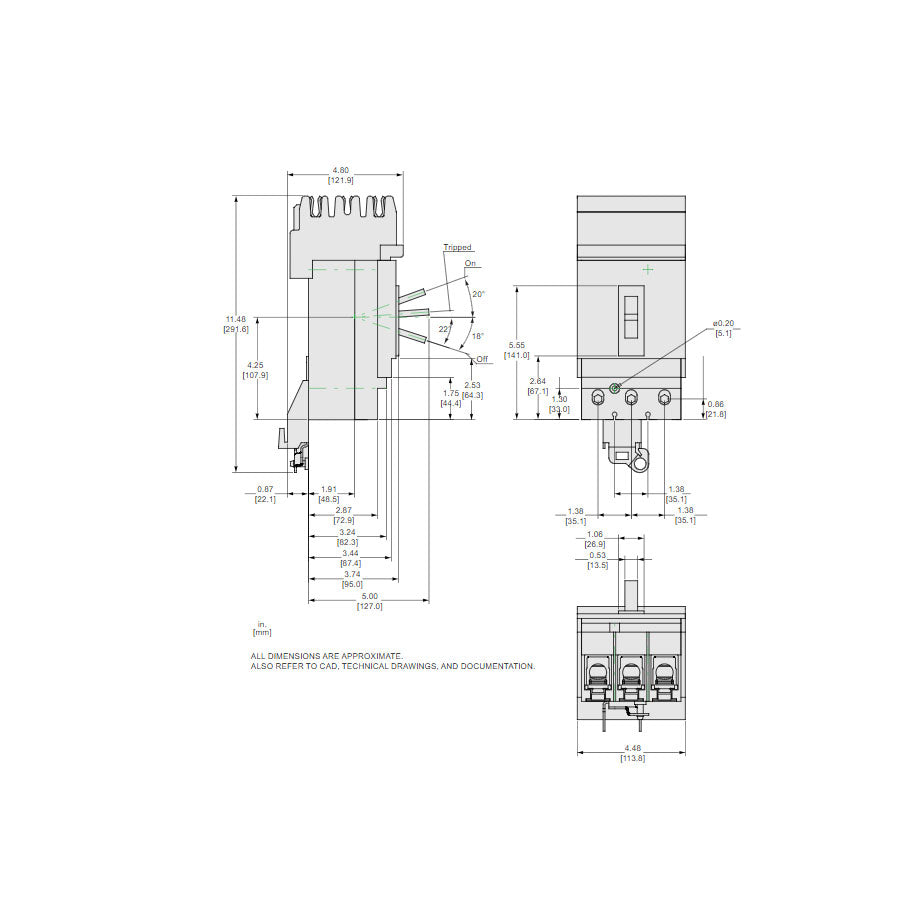

✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 3.27
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
