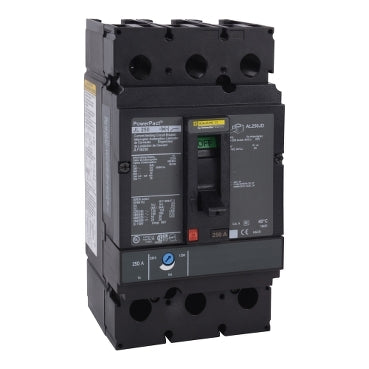

Square D JLF36250 Circuit Breaker | 600V 250A 3P 100kA@480V Bolt-On Powerpact

Product Description:
The Square D JLF36250 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and a 100kA@480V AIC rating. This bolt-on circuit breaker includes thermal magnetic protection for reliable performance. It is UL listed, CSA, and IEC certified for safety compliance.

Key Features:
✔ Part Number: JLF36250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JLF
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Height 7.52 in (191.01 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 5
✔ Certification: UL listed - CSA - IEC
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
