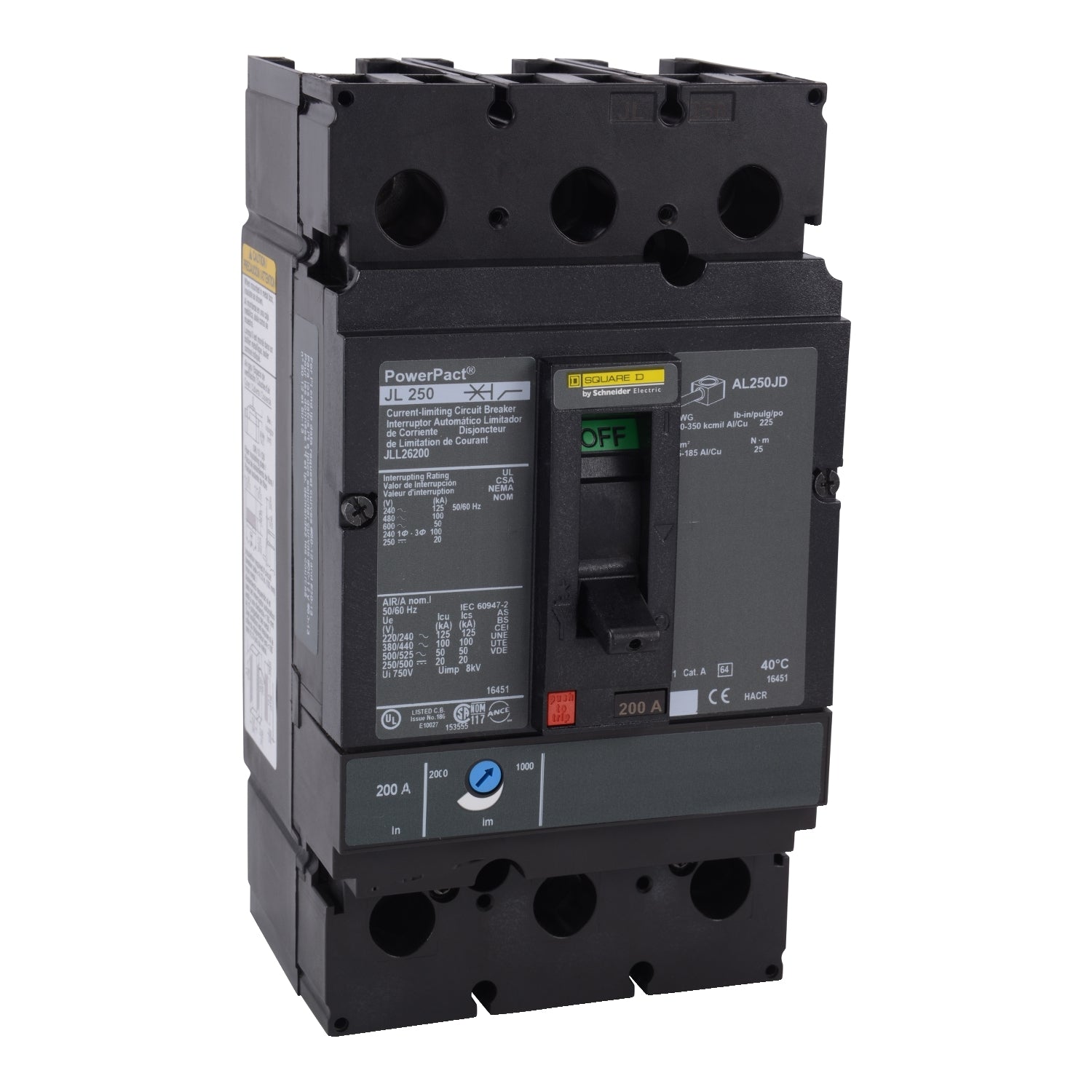

Square D JLL26200 Circuit Breaker | 600V 200A 2P 100kA@480V Feed-Thru Powerpact

Product Description:
The Square D JLL26200 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 200A rating and a 100kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: JLL26200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JLL
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ UPC: 078590188380
✔ Dimensions: Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 5
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
