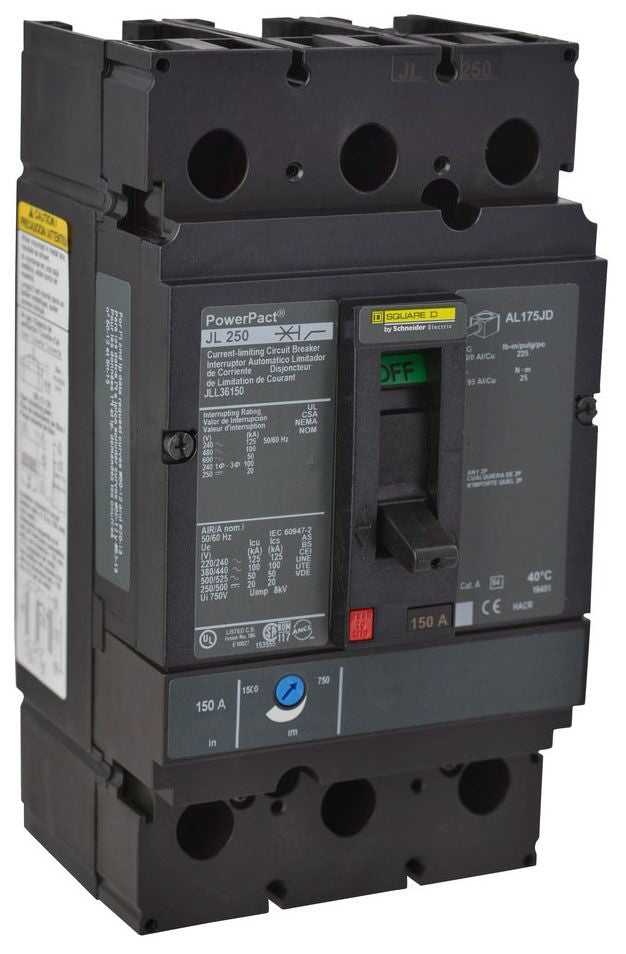

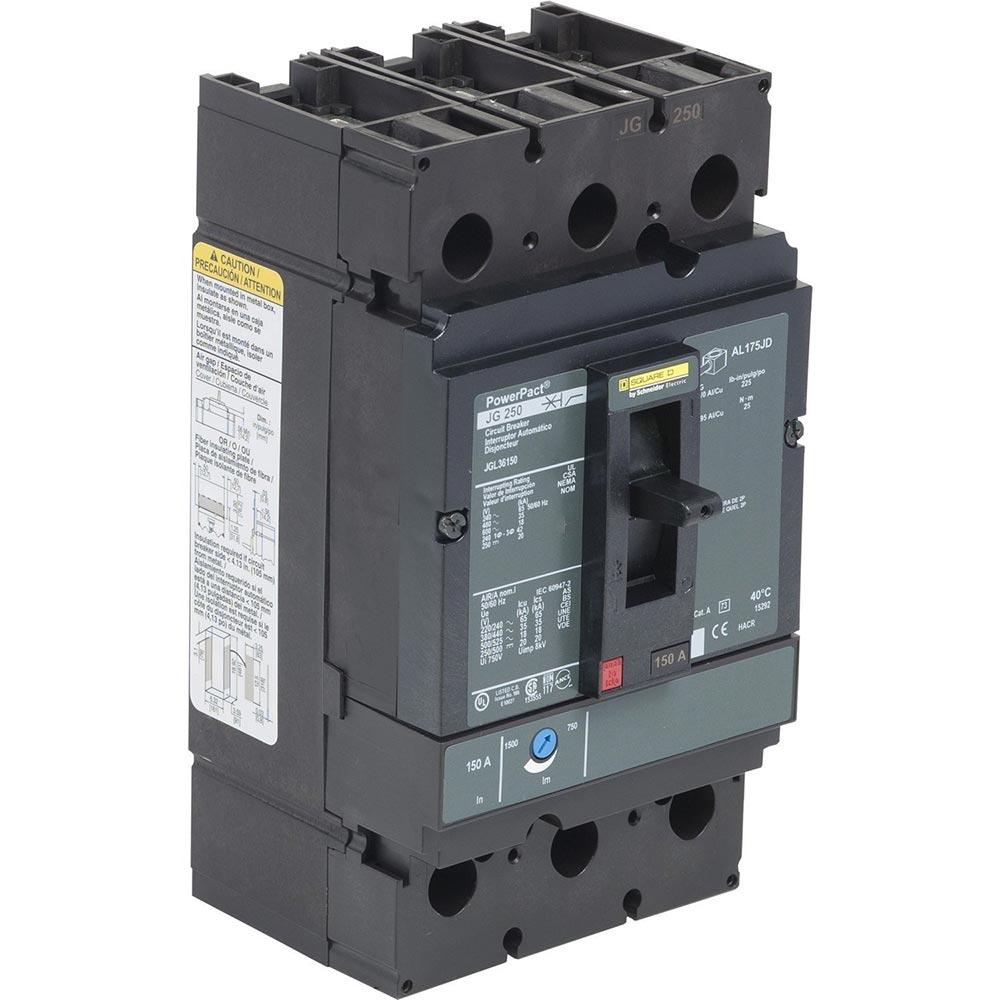

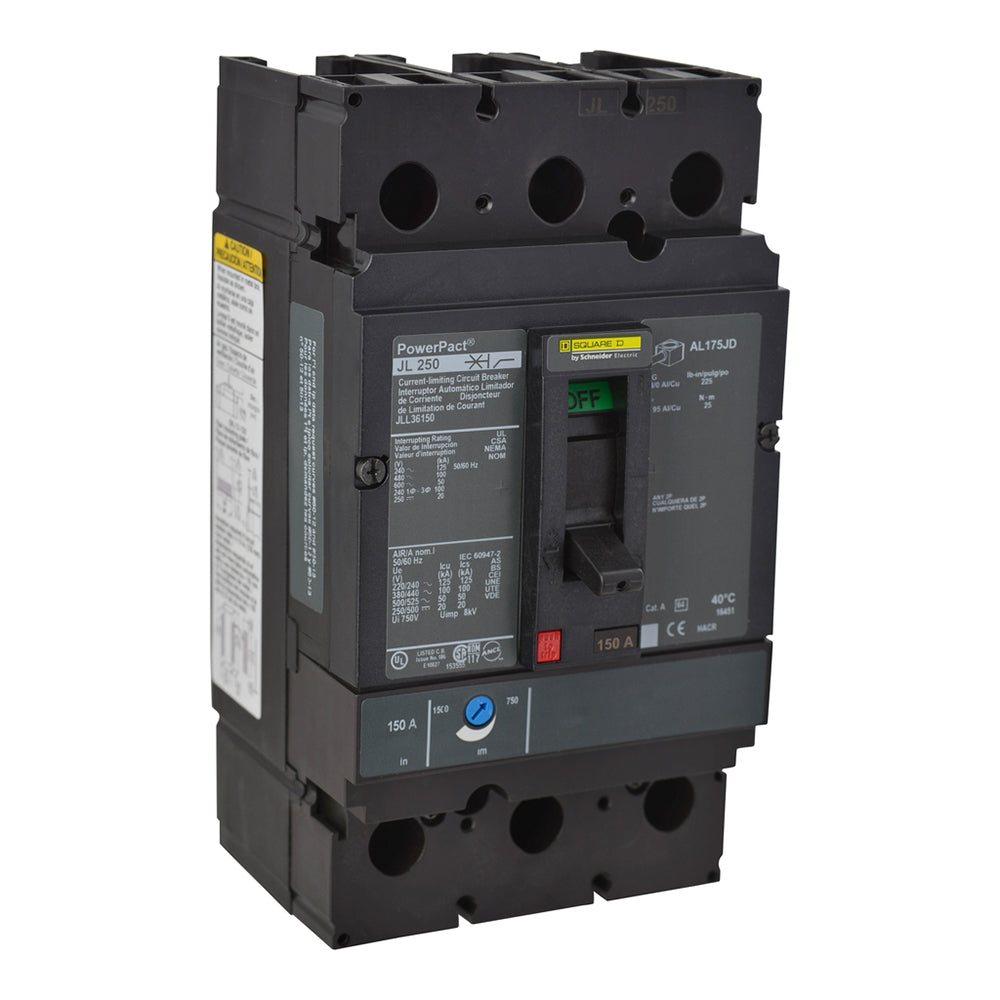

Square D JLL36175 Circuit Breaker | 600V 175A 3P 100kA@480V Feed-Thru Powerpact

Product Description:
The Square D JLL36175 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 600 Volt, 175 amp rated breaker with an AIC rating of 100kA@480V. This circuit breaker features a Feed-Thru connection and provides Thermal Magnetic protection for reliable operation.

Key Features:
✔ Part Number: JLL36175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JLL
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: L
✔ MCM Size: Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 4/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901883838
✔ GTIN: 00785901883838
✔ Country of Origin: Mexico

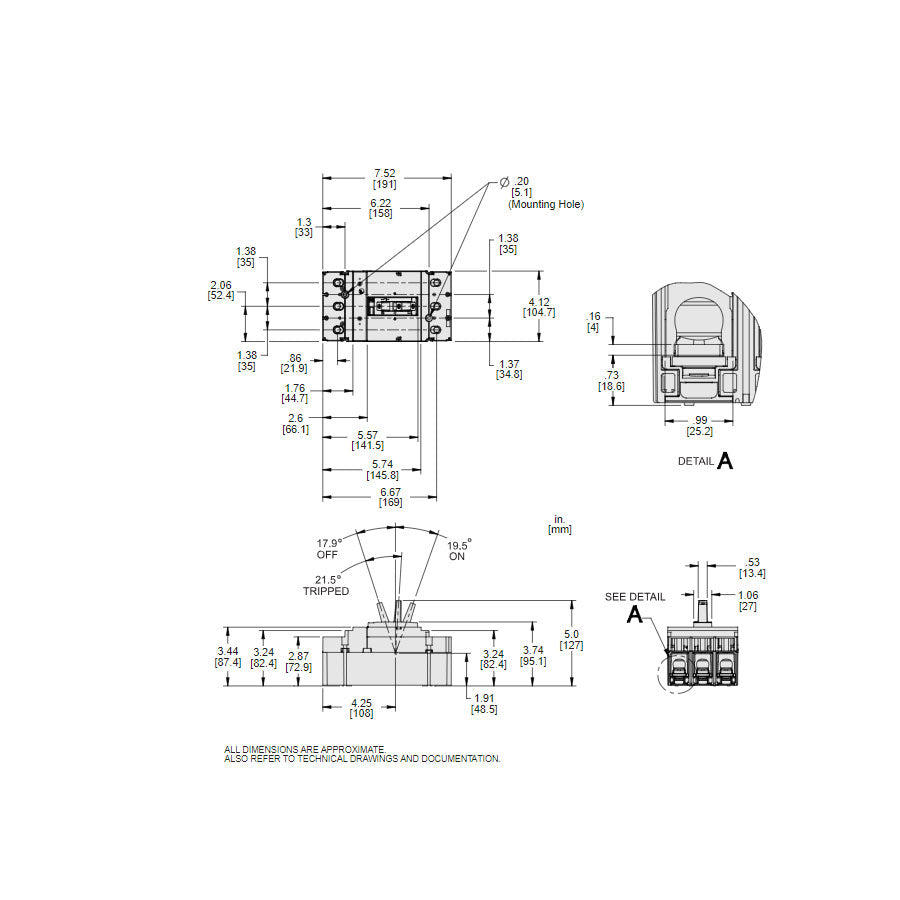

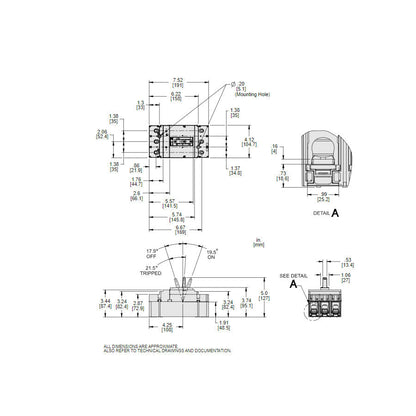

✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 2.23
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
