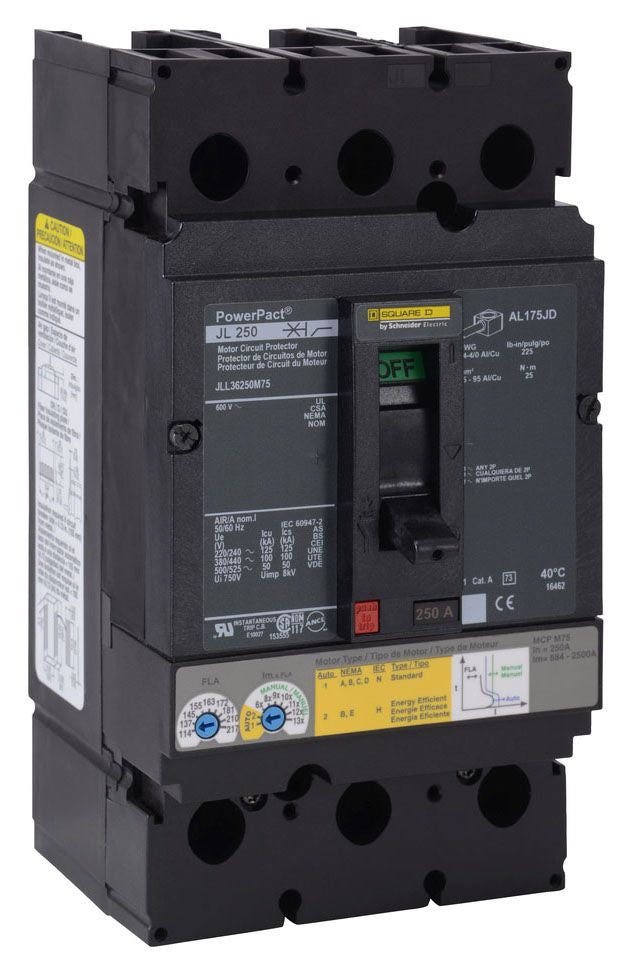

Square D JLL36250M75 Circuit Breaker | 600V 250A 3P 100kA@480V Feed-Thru Powerpact

Product Description:
The Square D JLL36250M75 is a Powerpact family molded case circuit breaker designed for industrial and commercial electrical systems. It is a 3-pole, 250 amp breaker rated for 600 volts with a 100kA interrupting capacity at 480V. This model features magnetic-only protection and a feed-thru lug connection for reliable performance.

Key Features:
✔ Part Number: JLL36250M75
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JLL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: I - Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: L
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Magnetic Only
✔ UPC: 785901661009
✔ GTIN: 00785901661009
✔ Country of Origin: Mexico
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 2.37
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
