Square D JLP36175 Circuit Breaker | Powerpact JLP 600V 175A

Product Description:

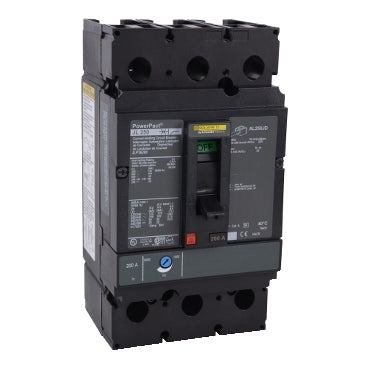

The Square D JLP36175 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 175A rating and a 100kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is designed for use with AWG 4 to 4/0 aluminum or copper terminals.

Key Features:
✔ Part Number: JLP36175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JLP
✔ Voltage: 600V
✔ Amperage: 175A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Temp Rating: 28-158°F (-2-70°C)
✔ Wire Size: AWG 4...AWG 4/0 aluminum/copper terminal
✔ Certification: IEC-CCC-CSA-UL LISTED-CE
✔ UPC: 785901661030
✔ GTIN: 00785901661030
✔ Country of Origin: United States
✔ Dimensions: 7.52 x 3.09 x 4.44 in (191 x 78.49 x 112.78 mm)
✔ Weight: 4.5 lbs
