Siemens JXD23B250 Circuit Breaker | 240V 250A 3P 65kA@240V Bolt-On Sentron Series

Product Description:

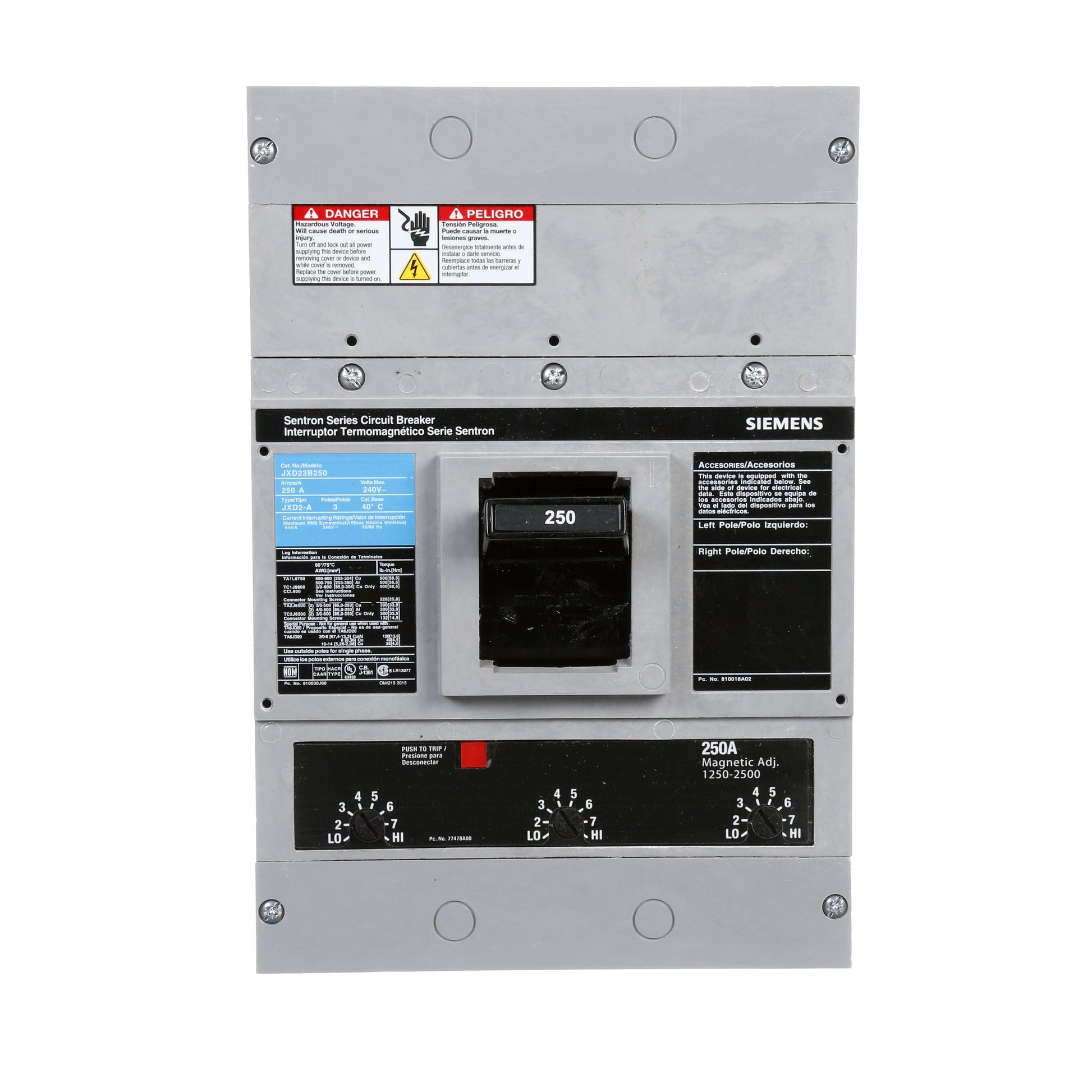

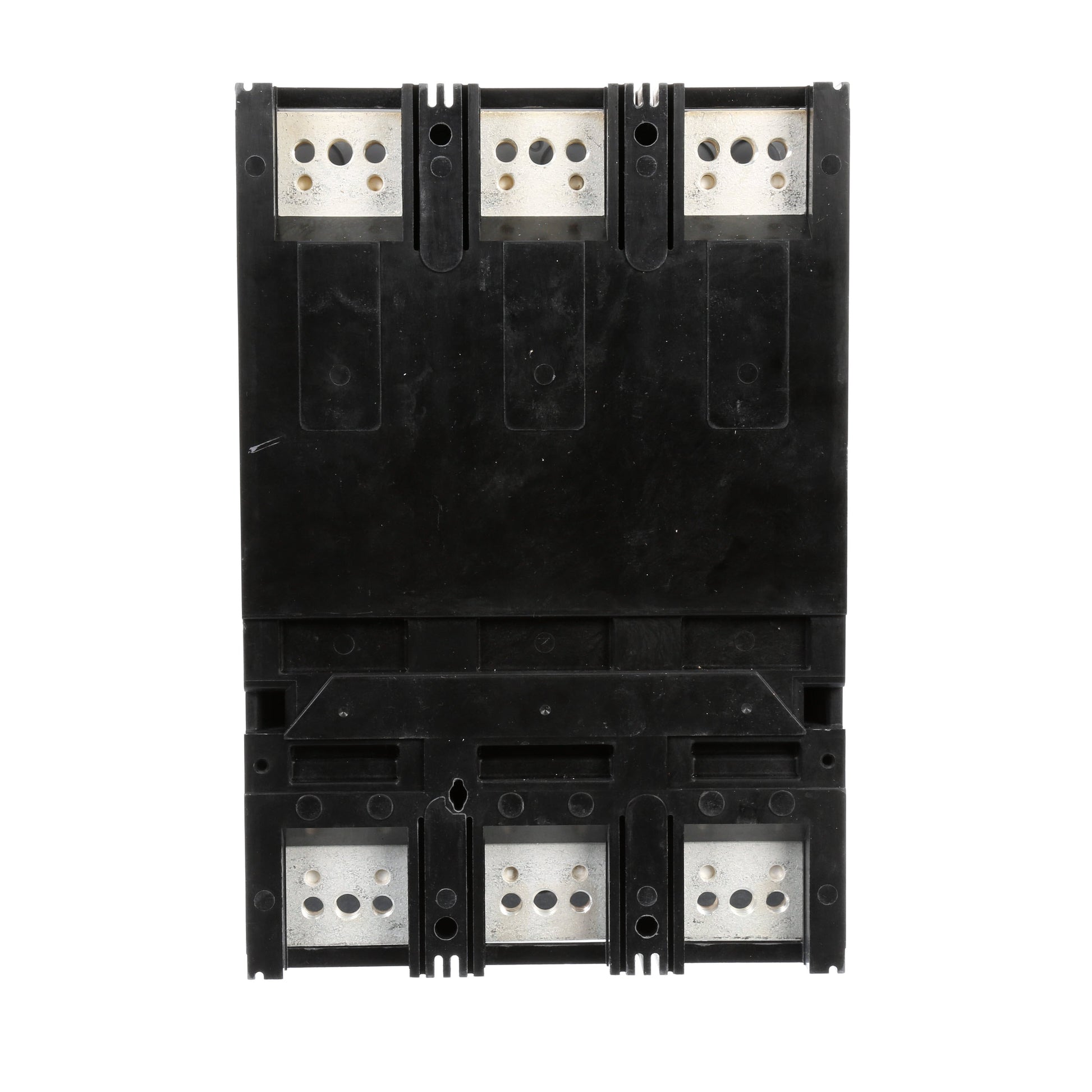

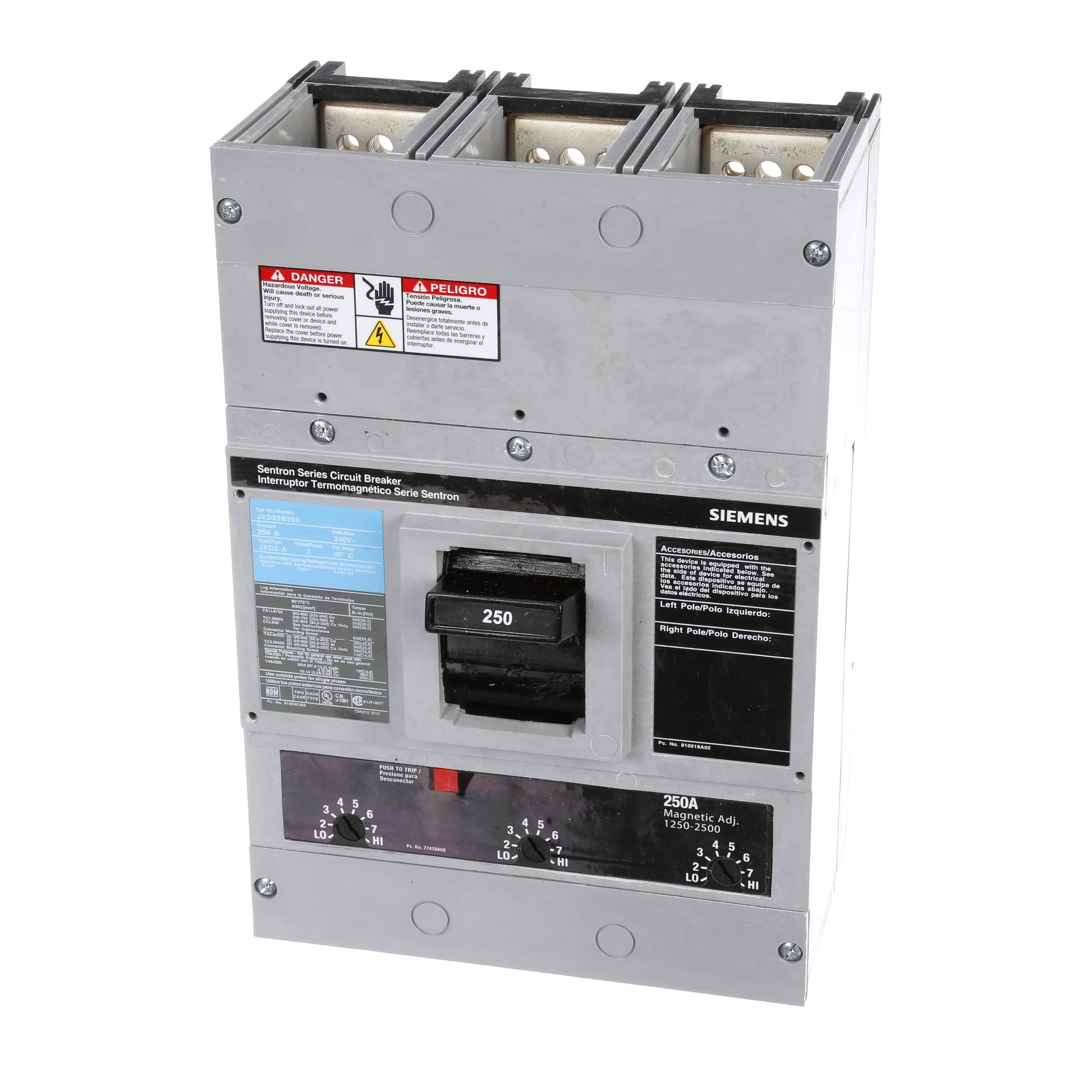

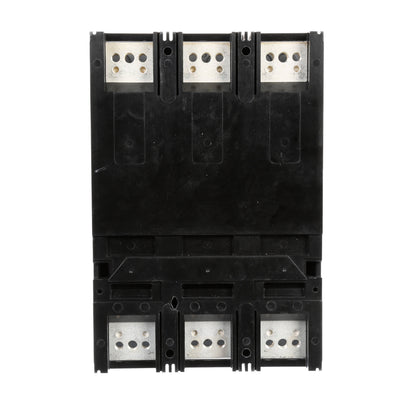

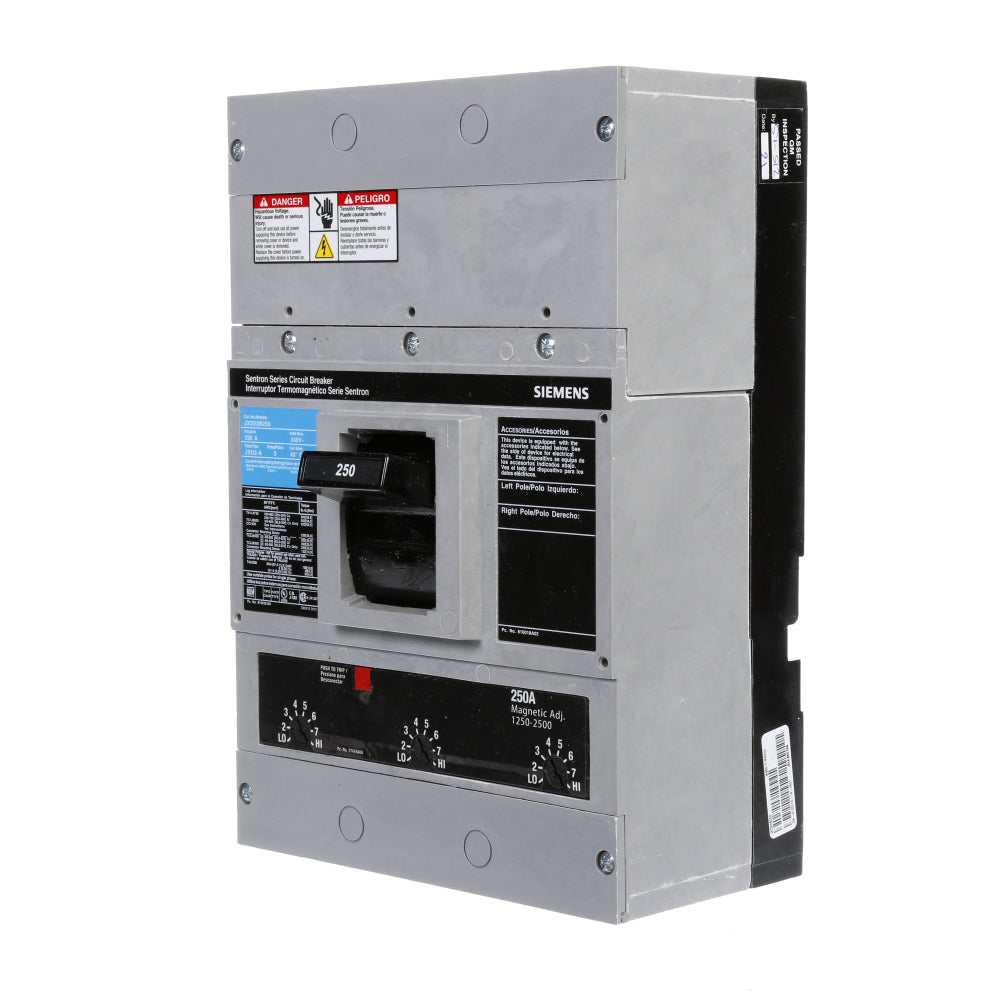

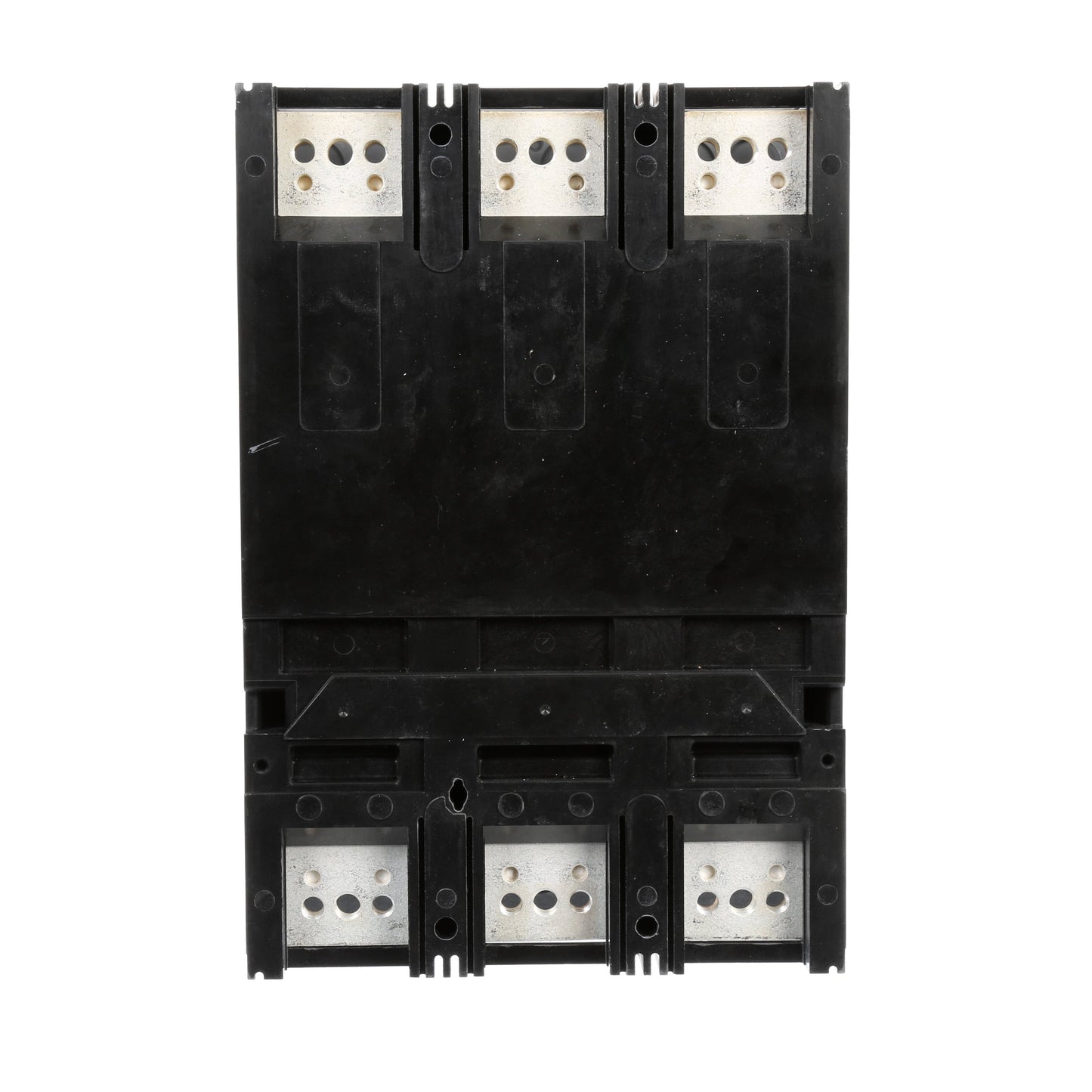

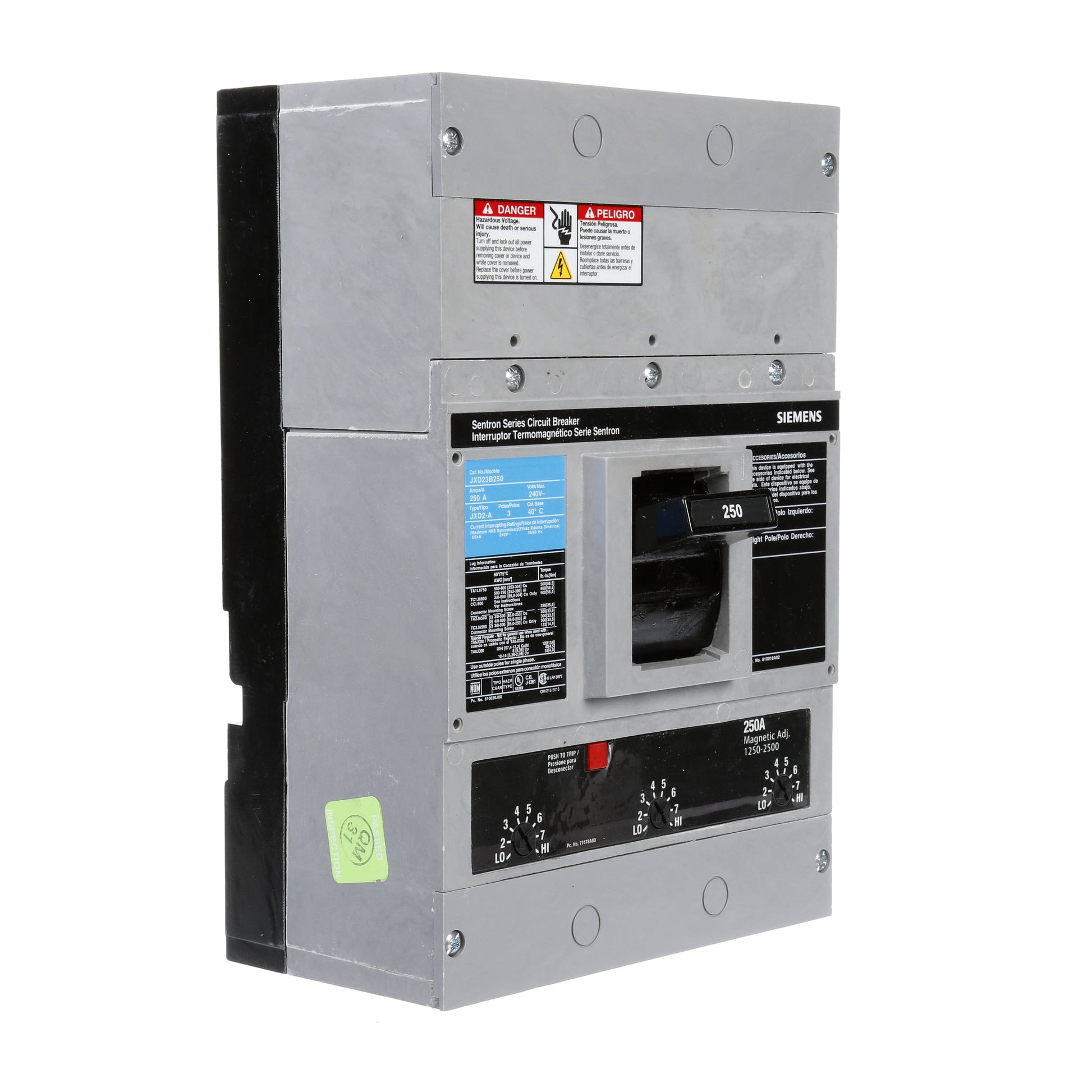

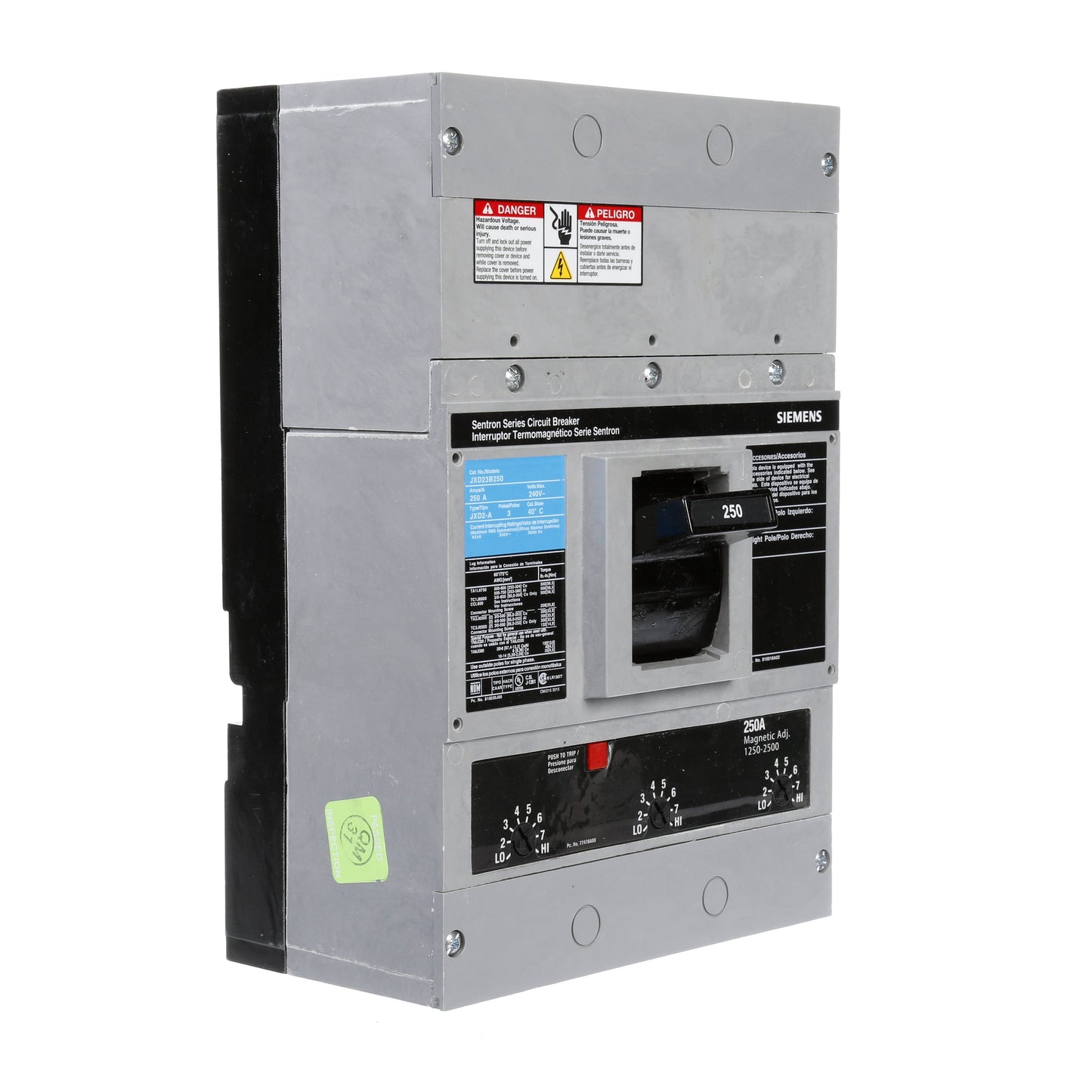

The Siemens JXD23B250 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 3-pole, 240V, 250A breaker with a 65kA@240V AIC rating and Bolt-On connection. This model features Thermal Magnetic protection for reliable performance. It is compatible with SB Switchboards and Sentron Panelboards.

Key Features:
✔ Part Number: JXD23B250
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: JXD
✔ Voltage: 240
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 400A/JD
✔ MCM Size: 500 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643212947
✔ GTIN: 00783643212947
✔ Country of Origin: Mexico
✔ Dimensions: 7.5 in x 11 in
✔ Weight: 20
✔ Panel Type: SB Switchboards Without Lugs, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
