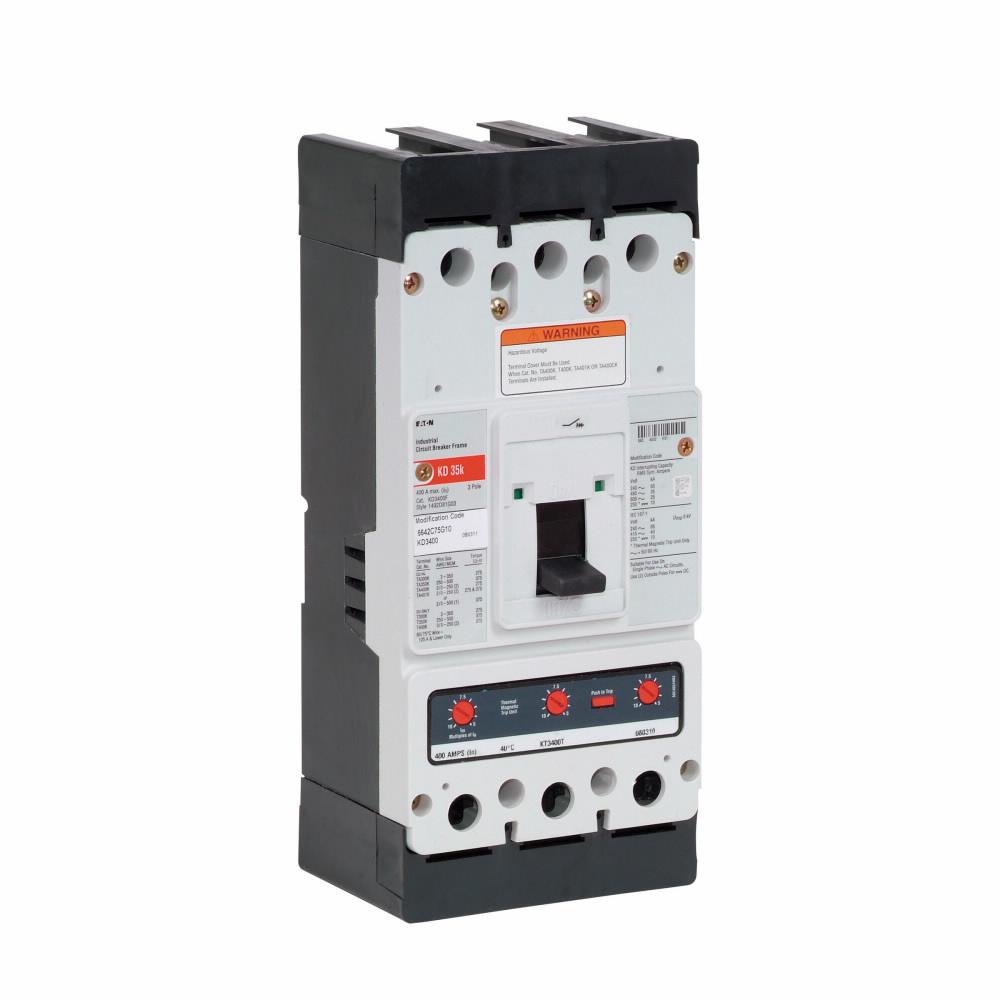

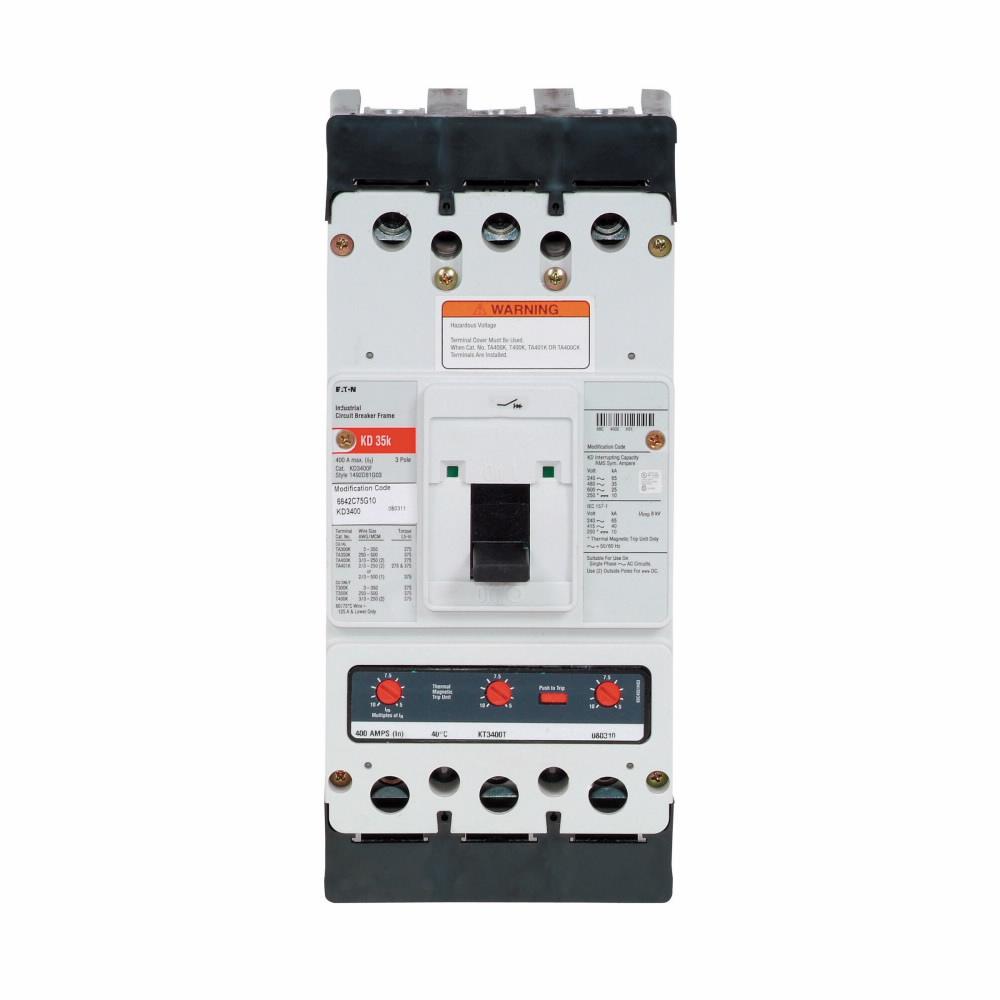

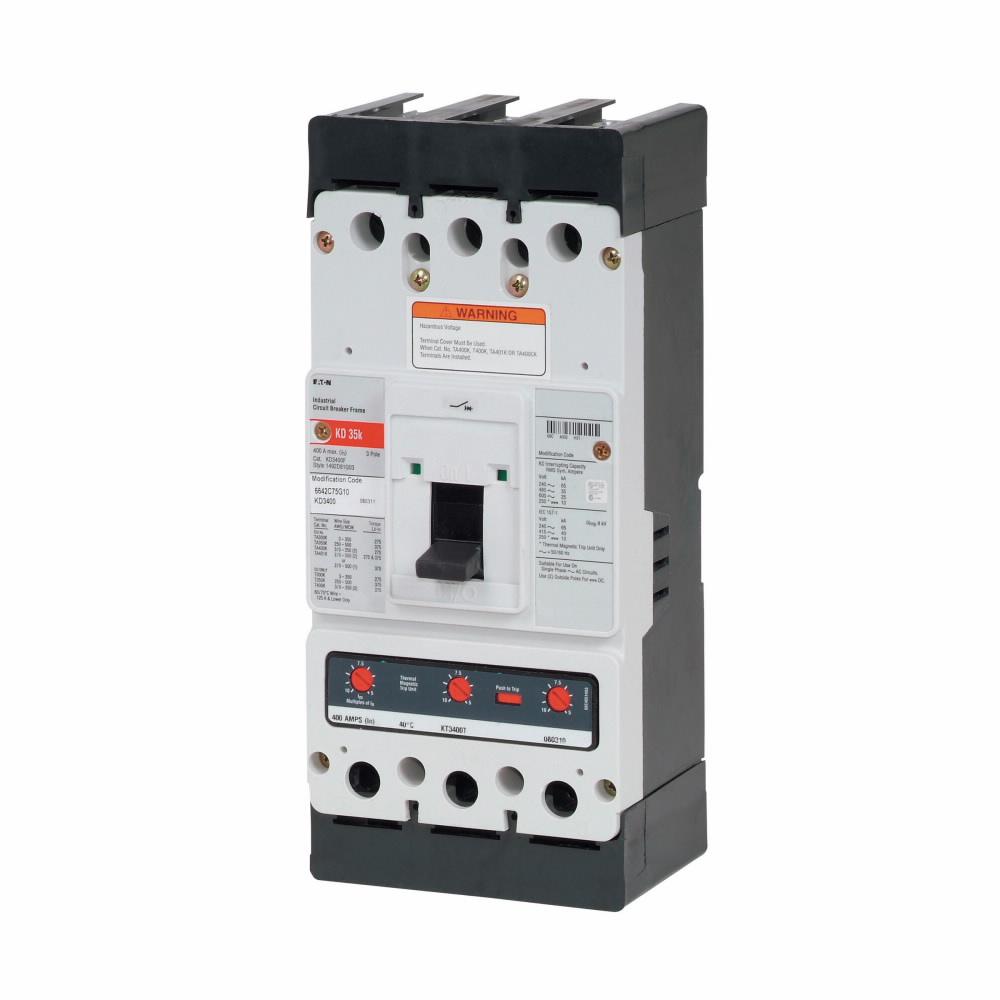

Cutler Hammer KD3400 Molded Case Circuit Breaker | 600V 400A 3P 35kA@480V Bolt-On Series C

Product Description:
The Cutler Hammer KD3400 is a Molded Case Circuit Breaker from the Series C family. It is a 3-pole, 400 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This model features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: KD3400
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: KD
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 400A/K
✔ MCM Size: Min. Wire Size 250 MCM Max. Wire Size 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 786679349199
✔ GTIN: 00786679349199
✔ Country of Origin: Dominican Republic
✔ Dimensions: 3.75 in x 1 in
✔ Weight: 12.7
✔ Panel Type: Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
✔ Standards: CSA Certified, IEC Rated, UL Listed
✔ Certification: CSA Certified, IEC Rated, UL Listed
