Product Description:

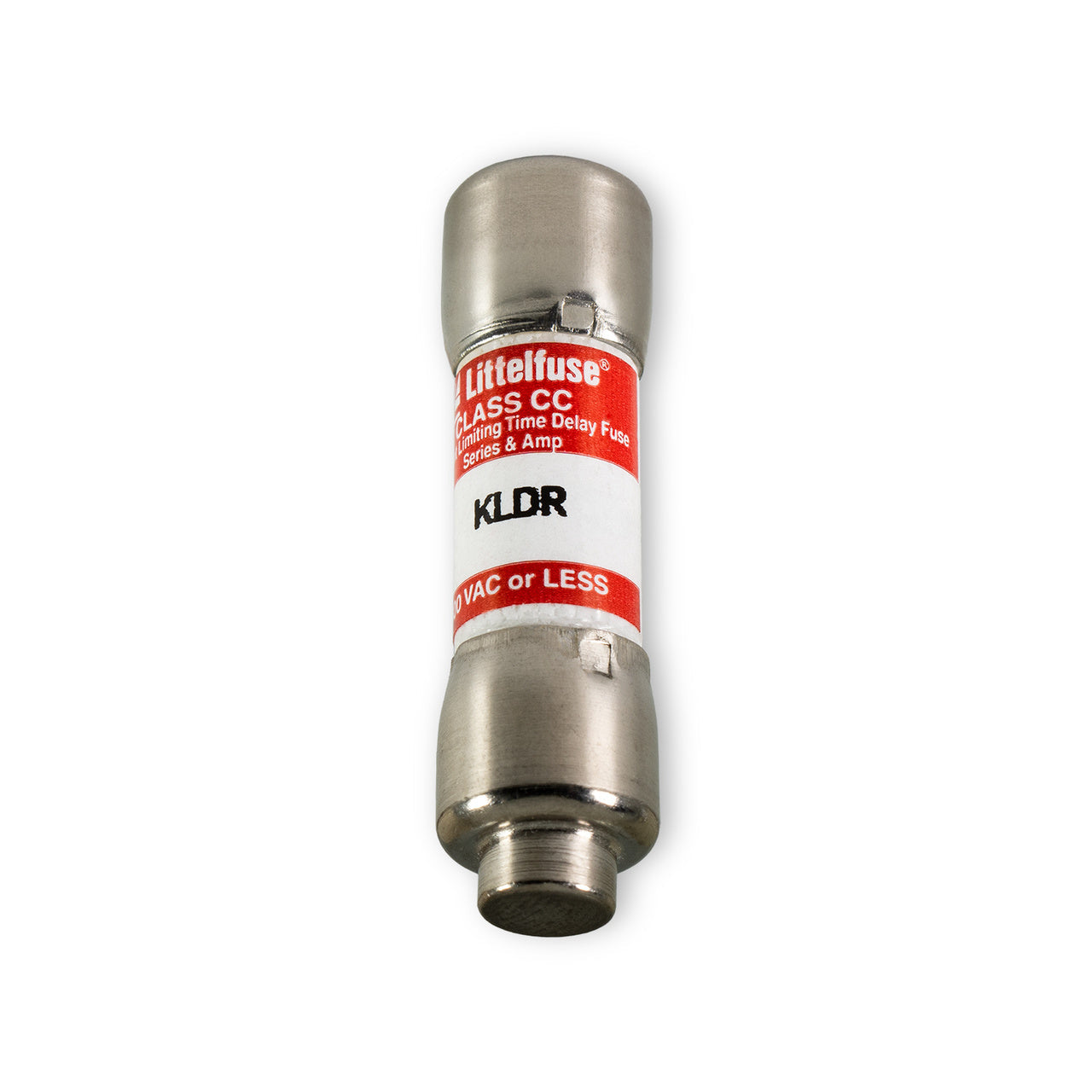

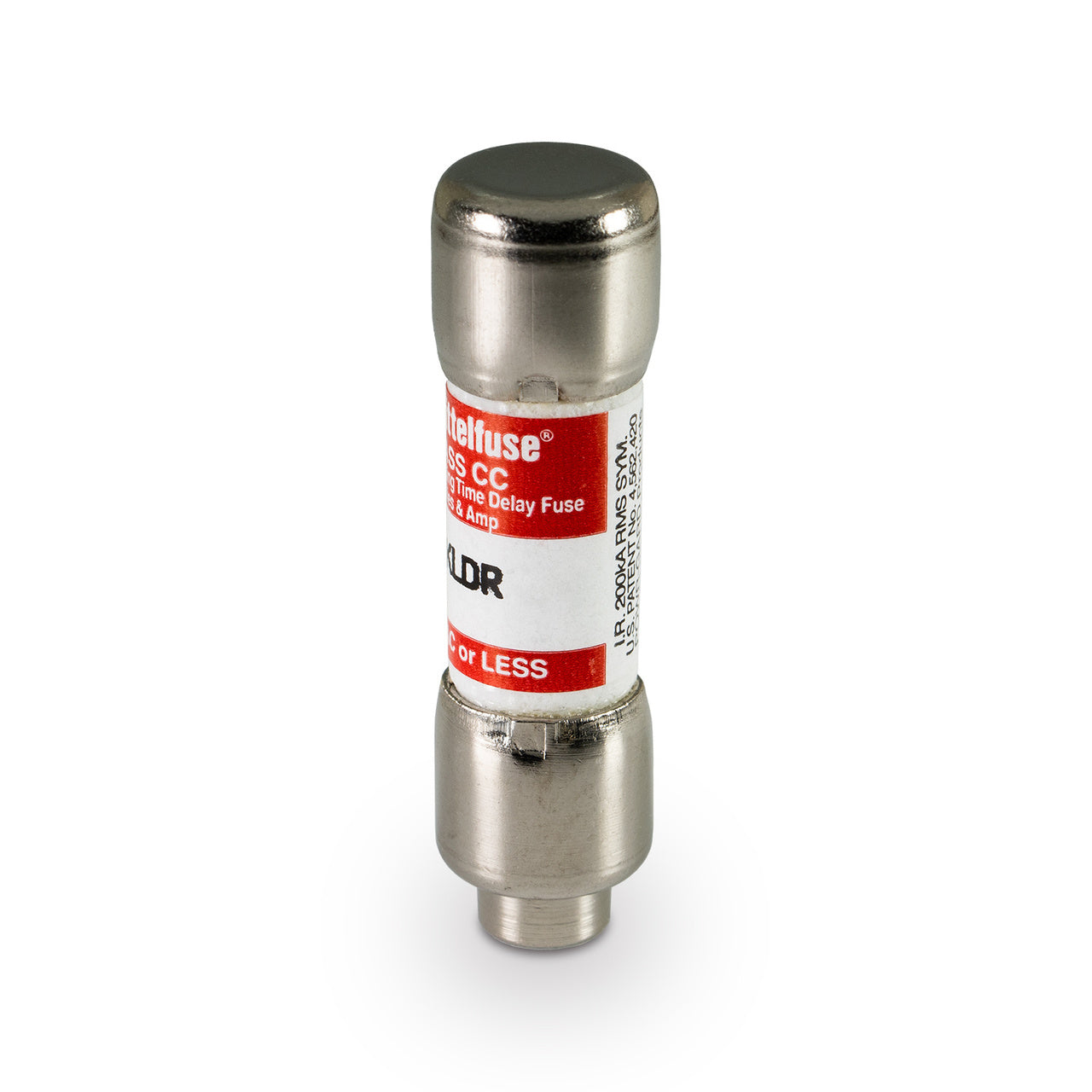

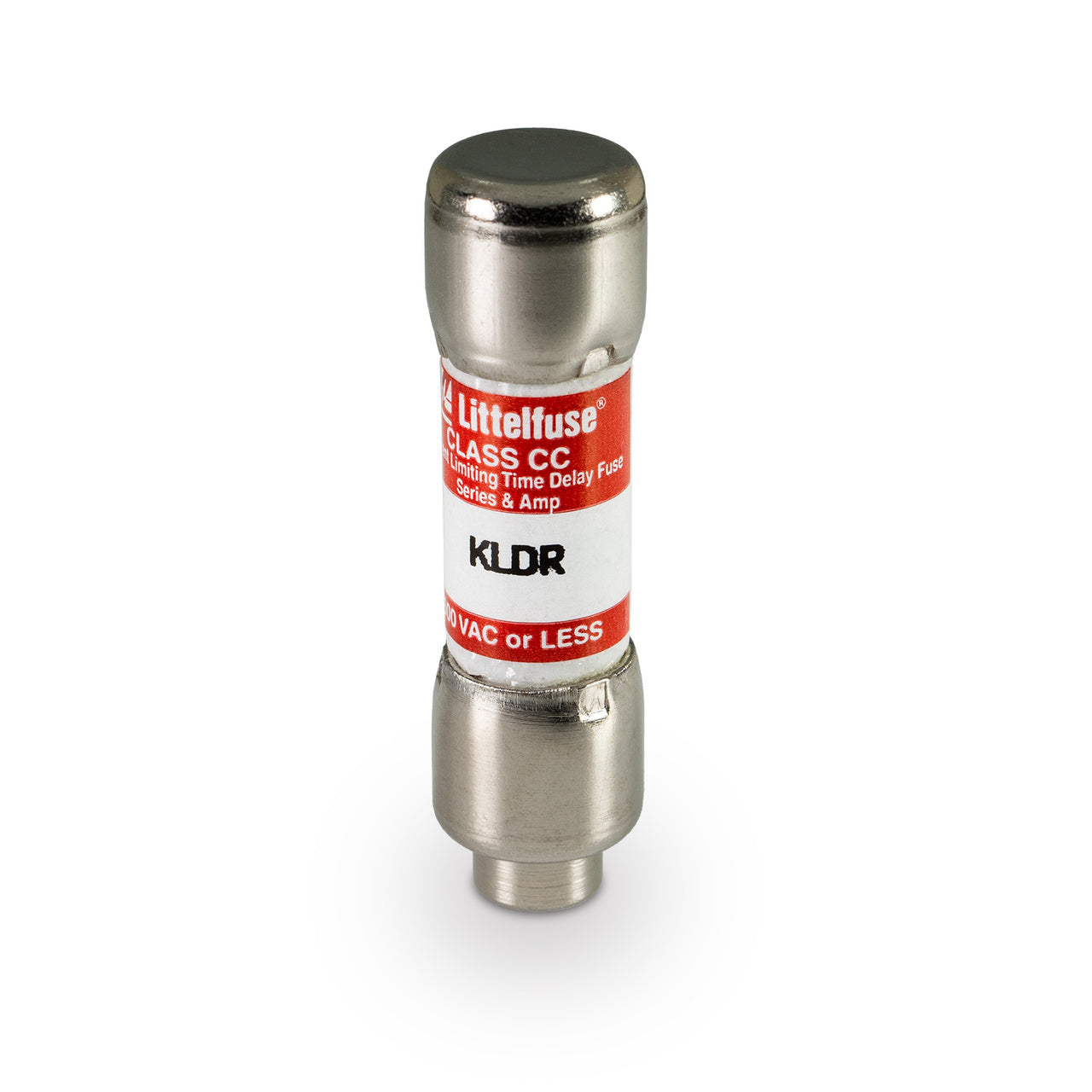

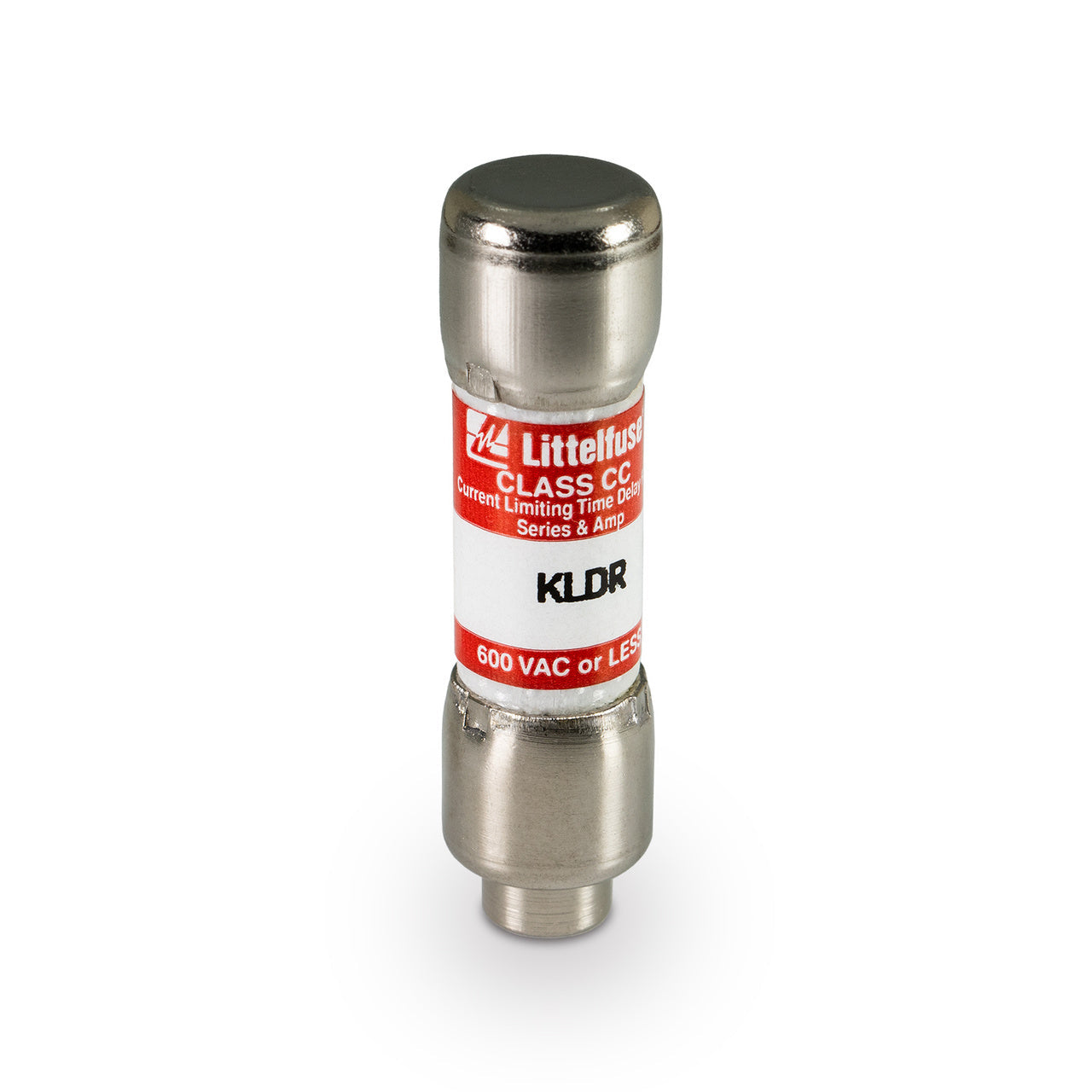

The Littelfuse KLDR010 is a Class CC time-delay fuse designed for low-voltage applications. It operates at 600V with a 10A rating and features a 200kA@600V AIC rating. This single-barrel fuse has a ferrule connection and a diameter of 0.41 inches. It is certified by CE, CSA, RoHS, and UL standards.
Key Features:
✔ Part Number: KLDR010
✔ Manufacturer: Littelfuse
✔ Category: Fuse
✔ Subcategory: Low Voltage Fuse
✔ Family: KLDR Series – Class CC Time-Delay Fuses
✔ Type: KLDR Series – Class CC Time-Delay Fuses
✔ Voltage: 600V
✔ Amperage: 10A
✔ AIC Rating: 200kA@600V
✔ Connection: Ferrule
✔ Diameter: 0.41
✔ Class Rating: CC
✔ Barrels: 1
✔ Velocity: TD - Time Delay
✔ Certification: CE, CSA Certified, RoHS, UL 248-4, UL Listed
✔ UPC: 079458792713
✔ Country of Origin: Mexico
✔ Dimensions: 1-1/2 in
✔ Weight: 7
