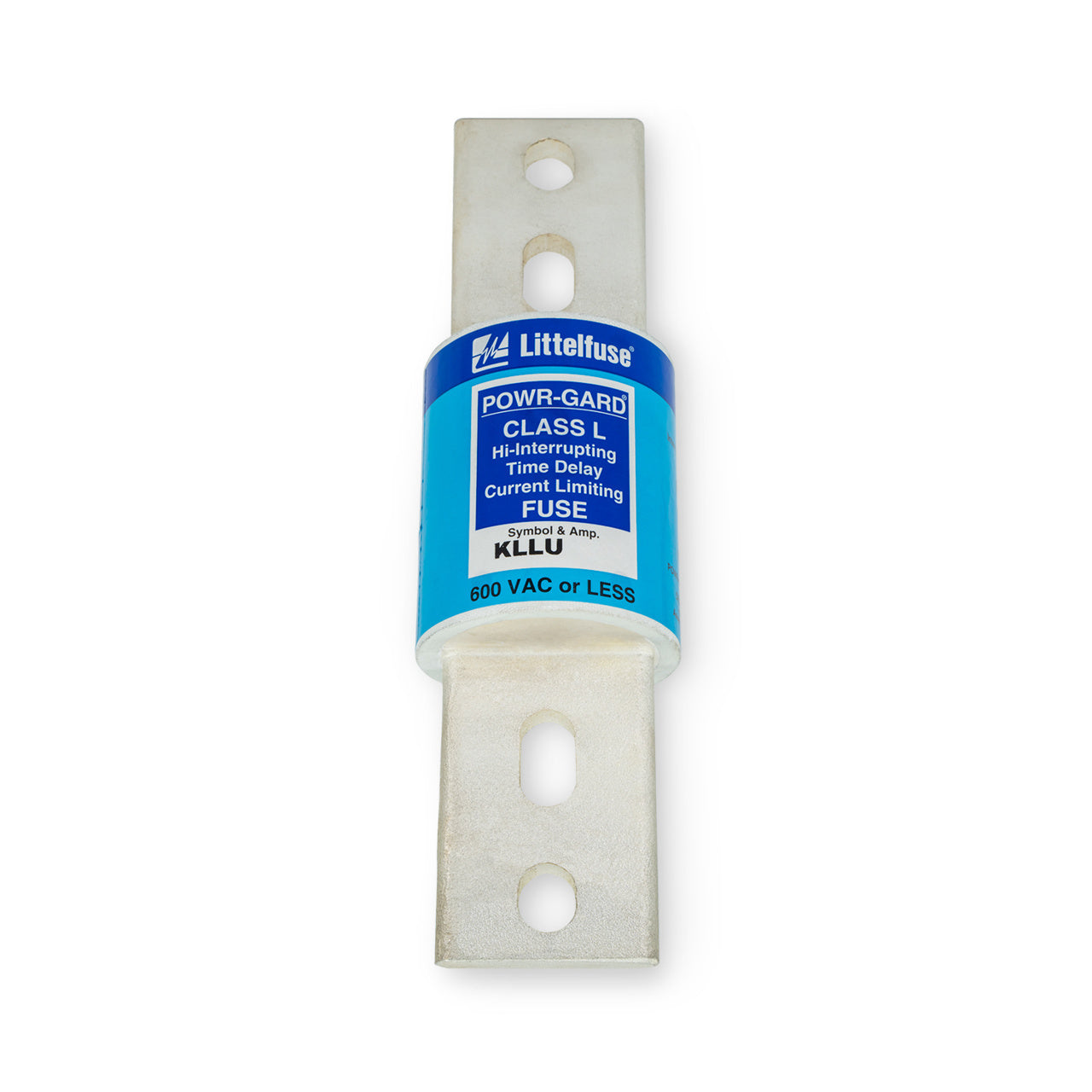

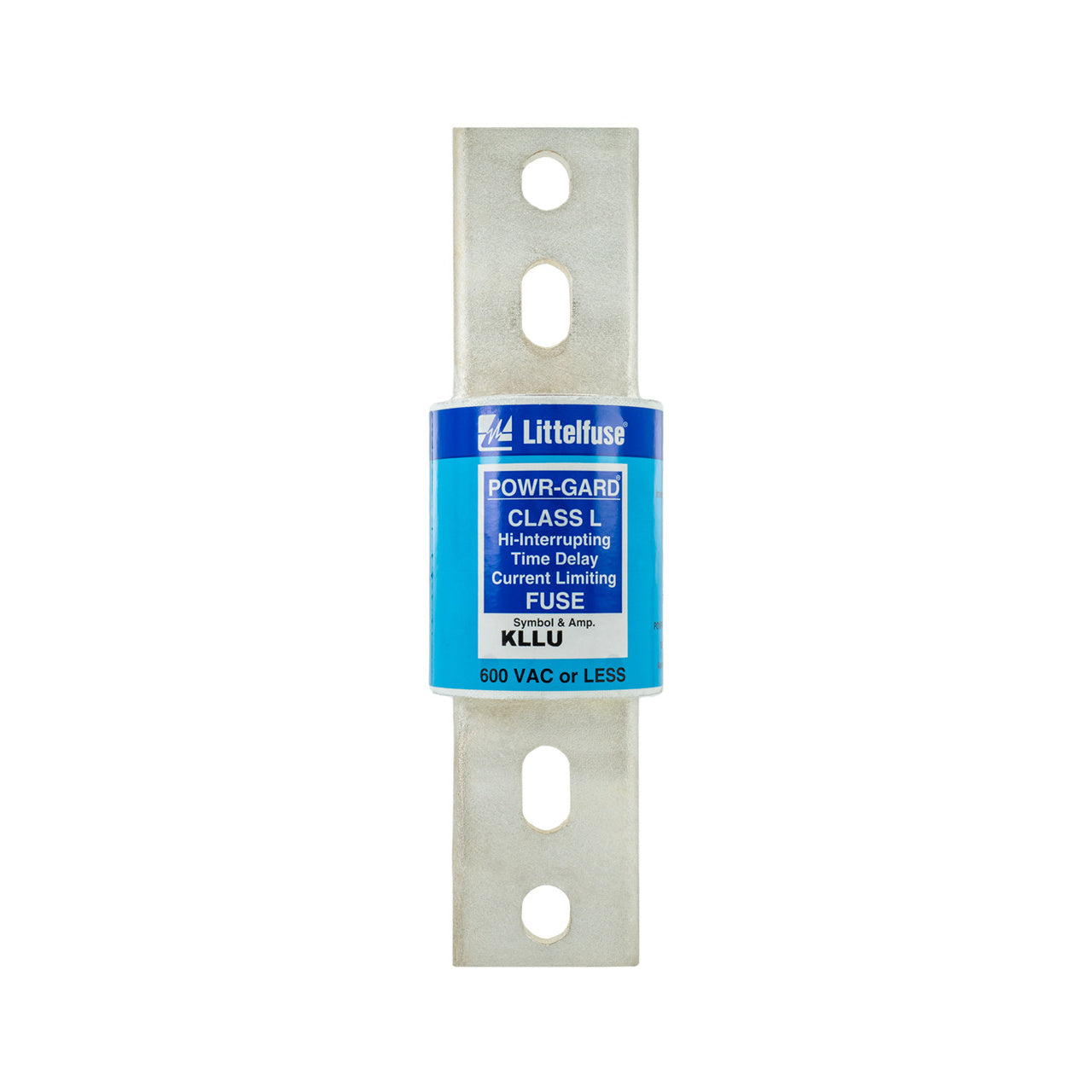

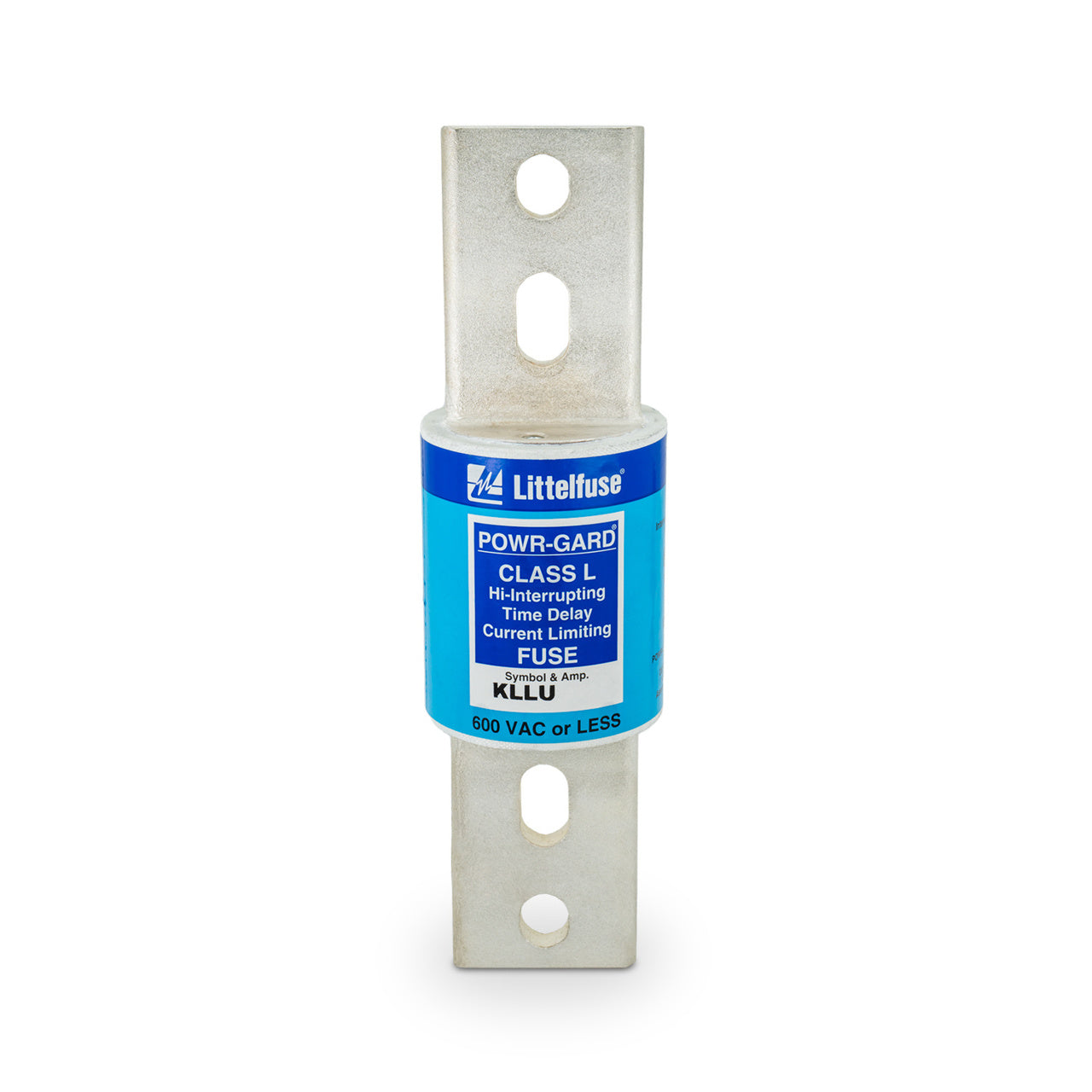

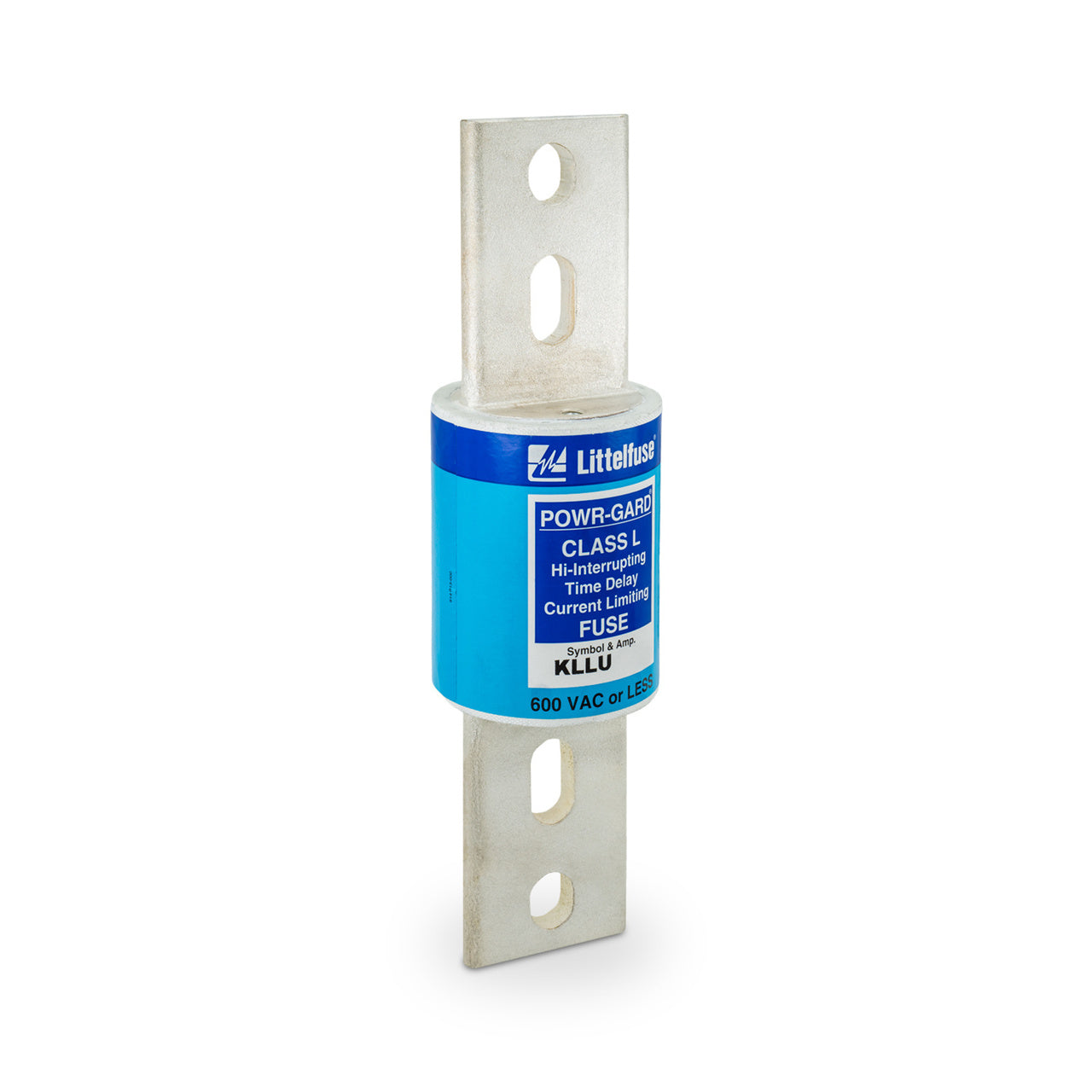

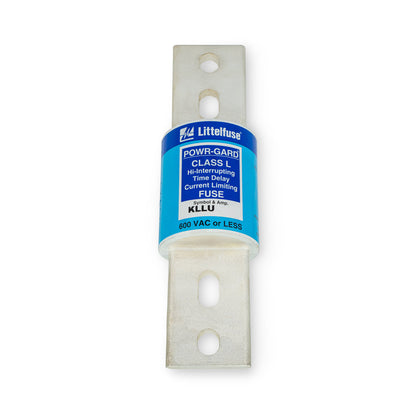

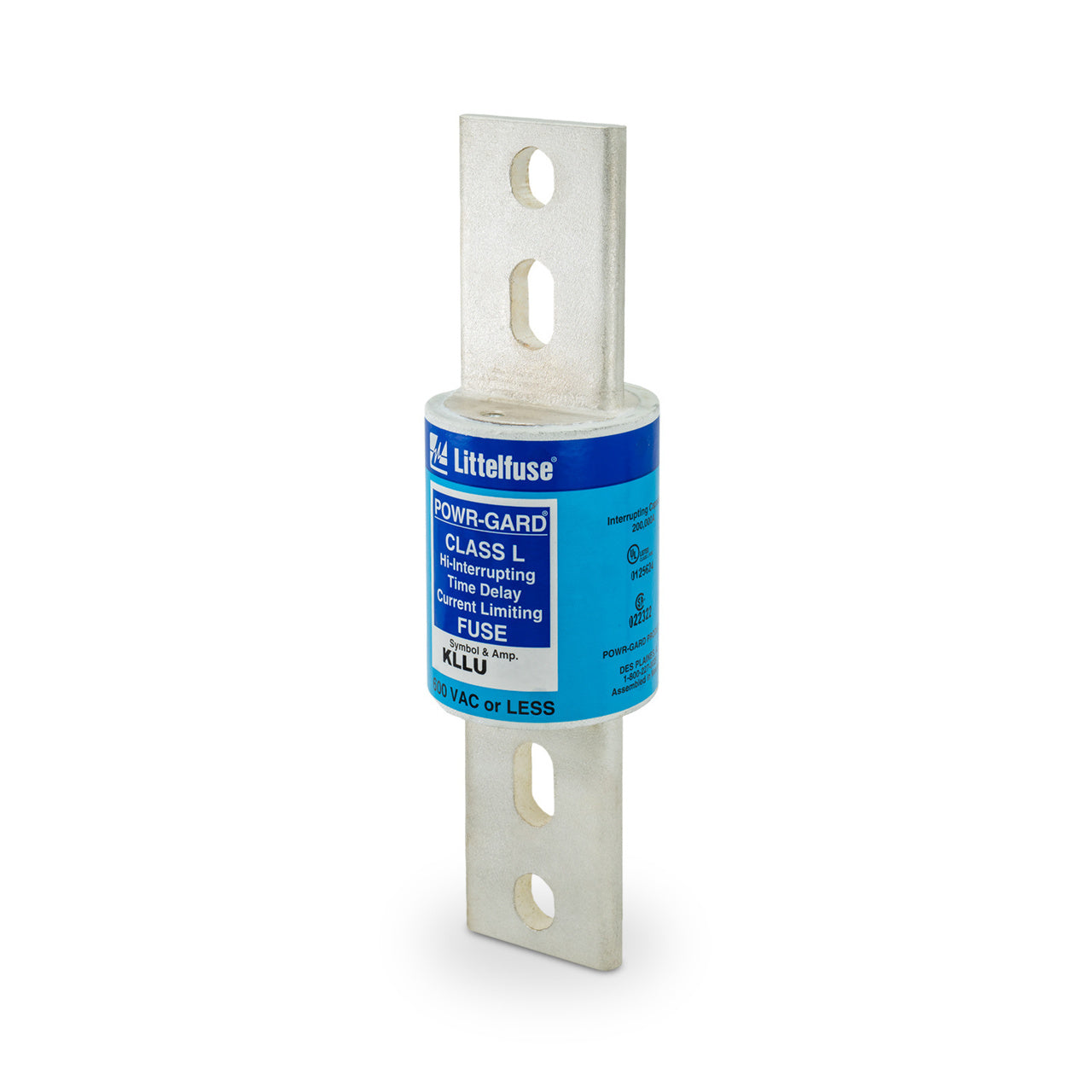

Littelfuse KLLU-1200 Fuse | 1200A 600V 200kA@600V Class L KLLU

Product Description:
The Littelfuse KLLU1200 is a low voltage fuse designed for 600V and 1200A applications. It features a time-delay (slow-blow) design with a high AIC rating of 200kA@600V. The fuse has a bolt-in connection with knife blade terminals and a 2" diameter. It is UL Listed, CSA Certified, and CE Marked for safety compliance.

Key Features:
✔ Part Number: KLLU-1200
✔ Manufacturer: Littelfuse
✔ Category: Fuse
✔ Subcategory: Low Voltage
✔ Family: KLLU
✔ Type: KLLU - Time-Delay (Slow-Blow)
✔ Voltage: 600
✔ Amperage: 1200
✔ AIC rating: 200kA@600V
✔ Connection: Bolt-In (Knife Blade Terminals)
✔ Diameter: 2
✔ Class Rating: L
✔ UPC: 079458271065
✔ GTIN: 00079458271065
✔ Dimensions: 2.5" Diameter x 10.75" Length (63.5mm x 273mm)
✔ Weight: 2 lb
✔ Certification: UL Listed (File: E81895), CSA Certified (File: LR29862), CE Marked
