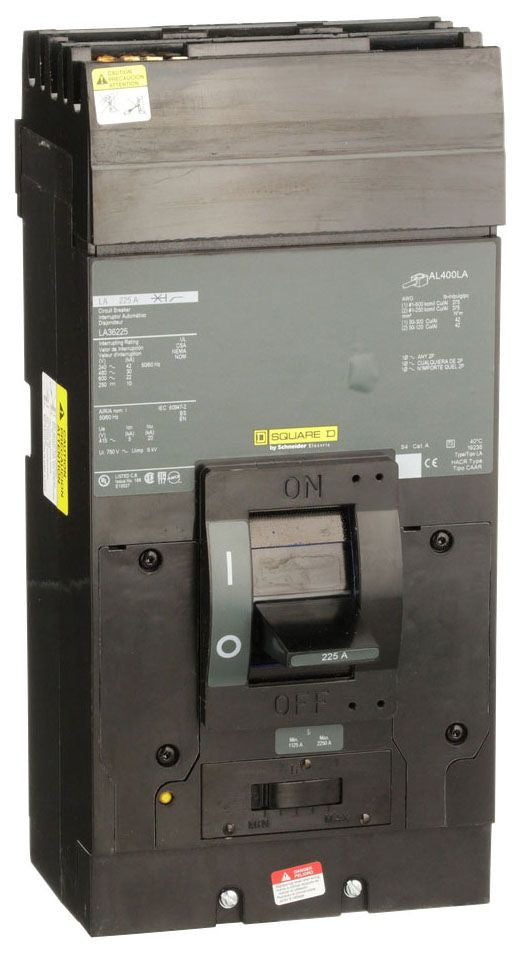

Square D LA36225 Circuit Breaker | 600V 225A 3P 30kA@480V I-Line

Product Description:
The Square D LA36225 is a Molded Case Circuit Breaker from the I-Line family. It features 3 poles, 600V voltage, and a 225 amp rating with a 30kA@480V AIC rating. This breaker uses a Plug In Panelboard connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: LA36225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: I-Line
✔ Type: LA
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 30kA@480V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 400A/LA
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901241843
✔ GTIN: 00785901241843
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 11 in
✔ Weight: 18
✔ Panel Type: I Line Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: CSA, UL Listed
