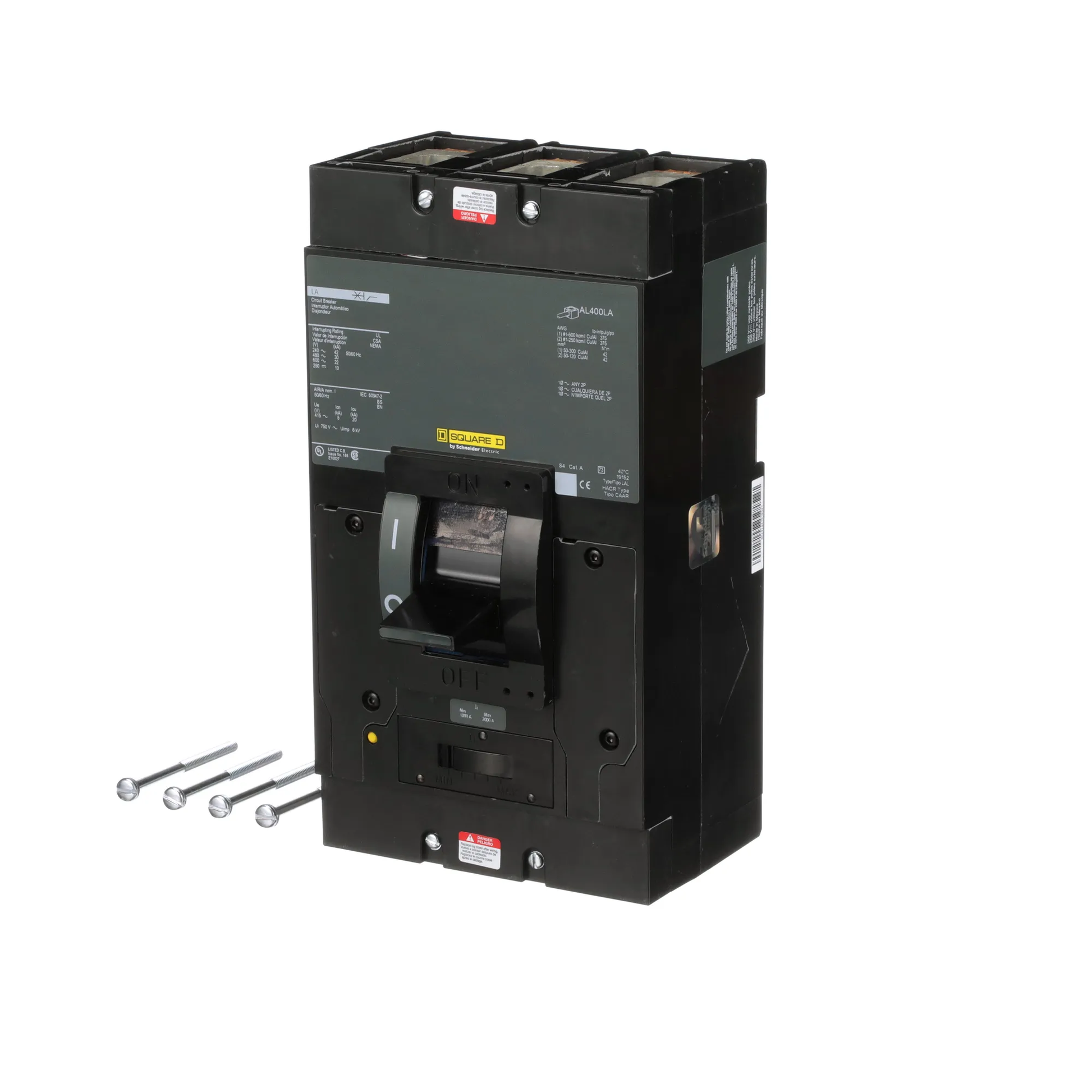

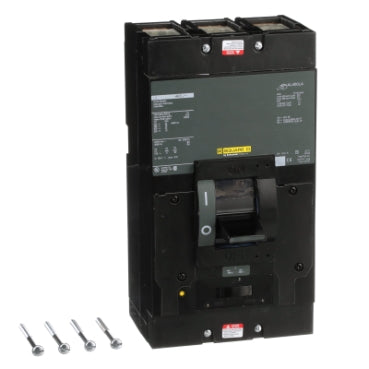

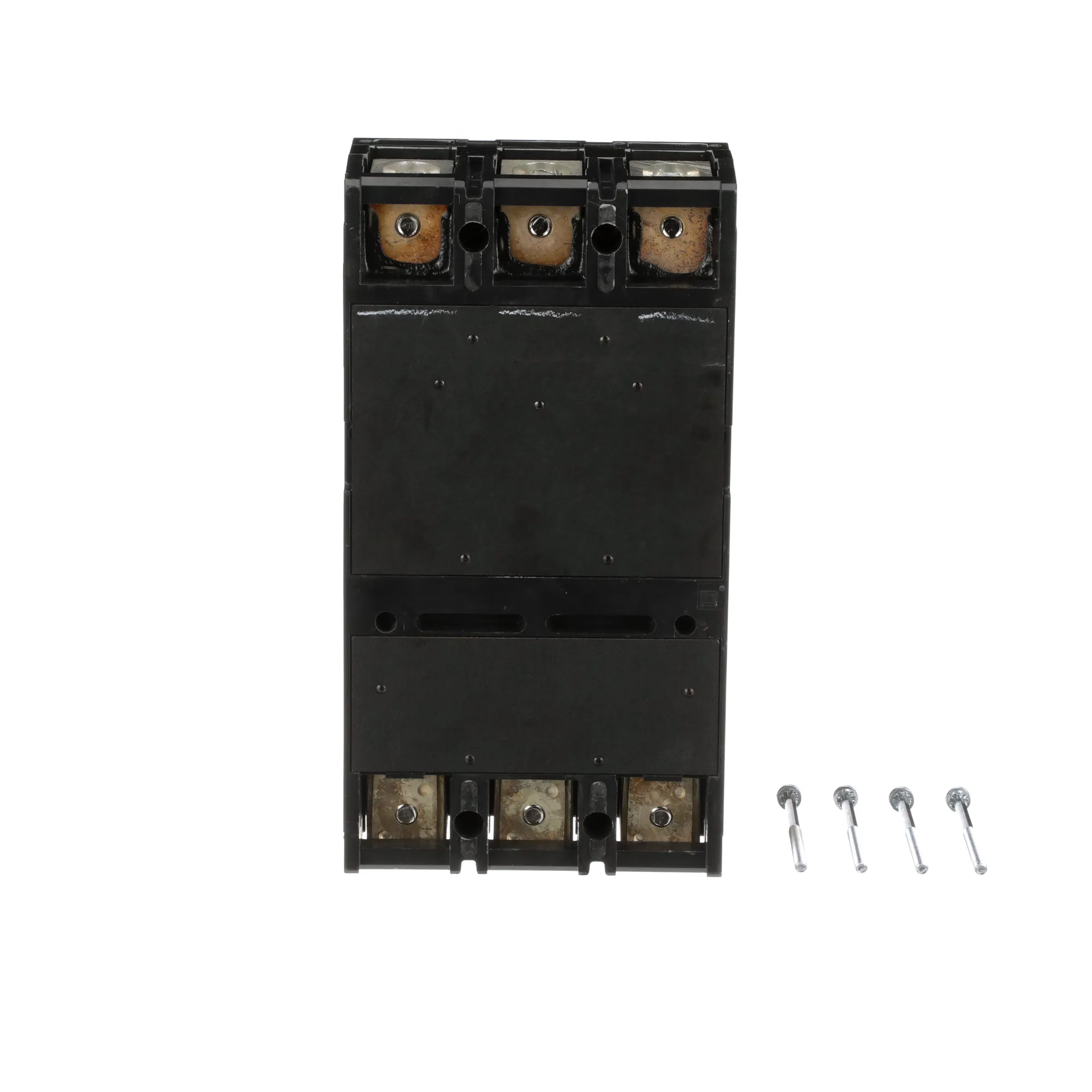

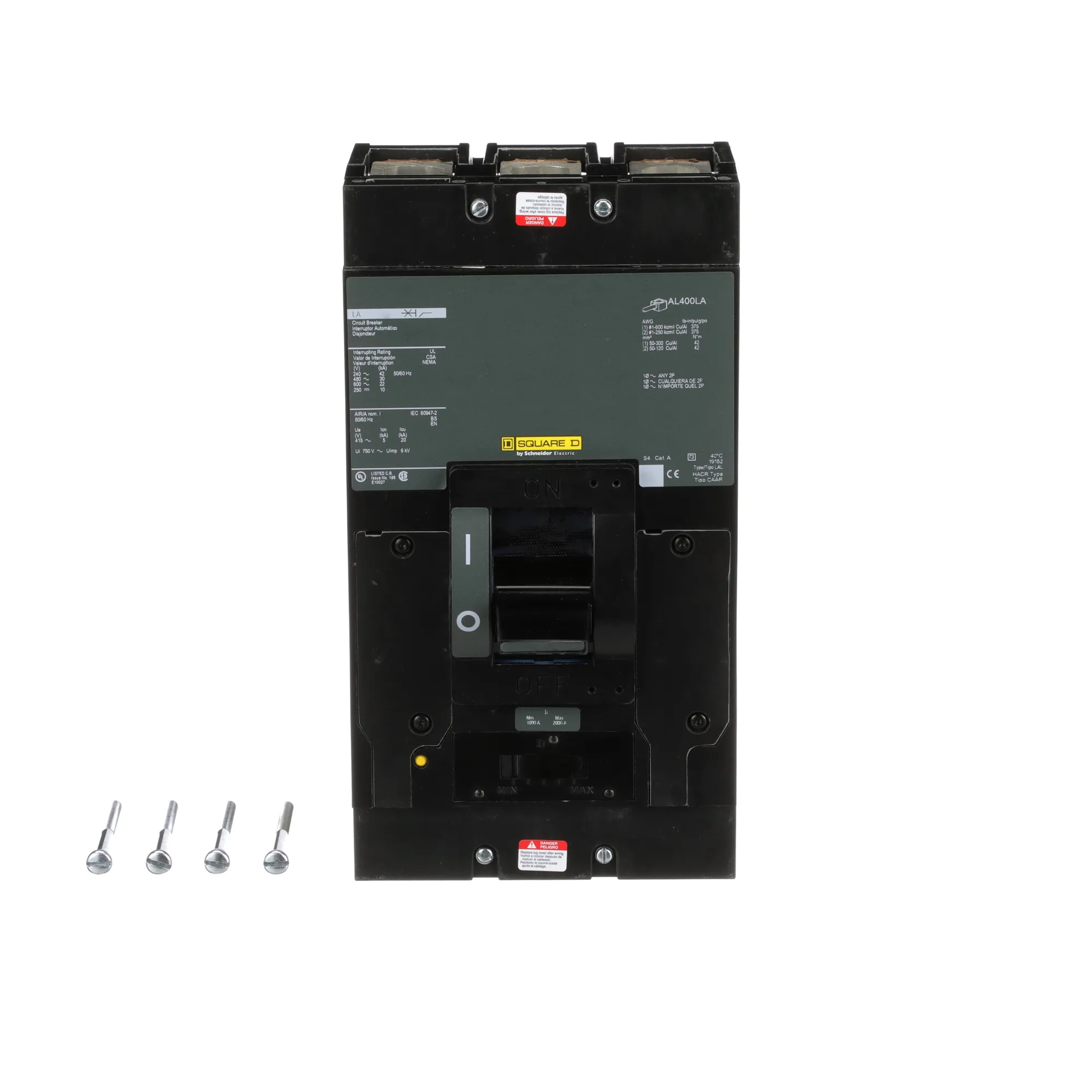

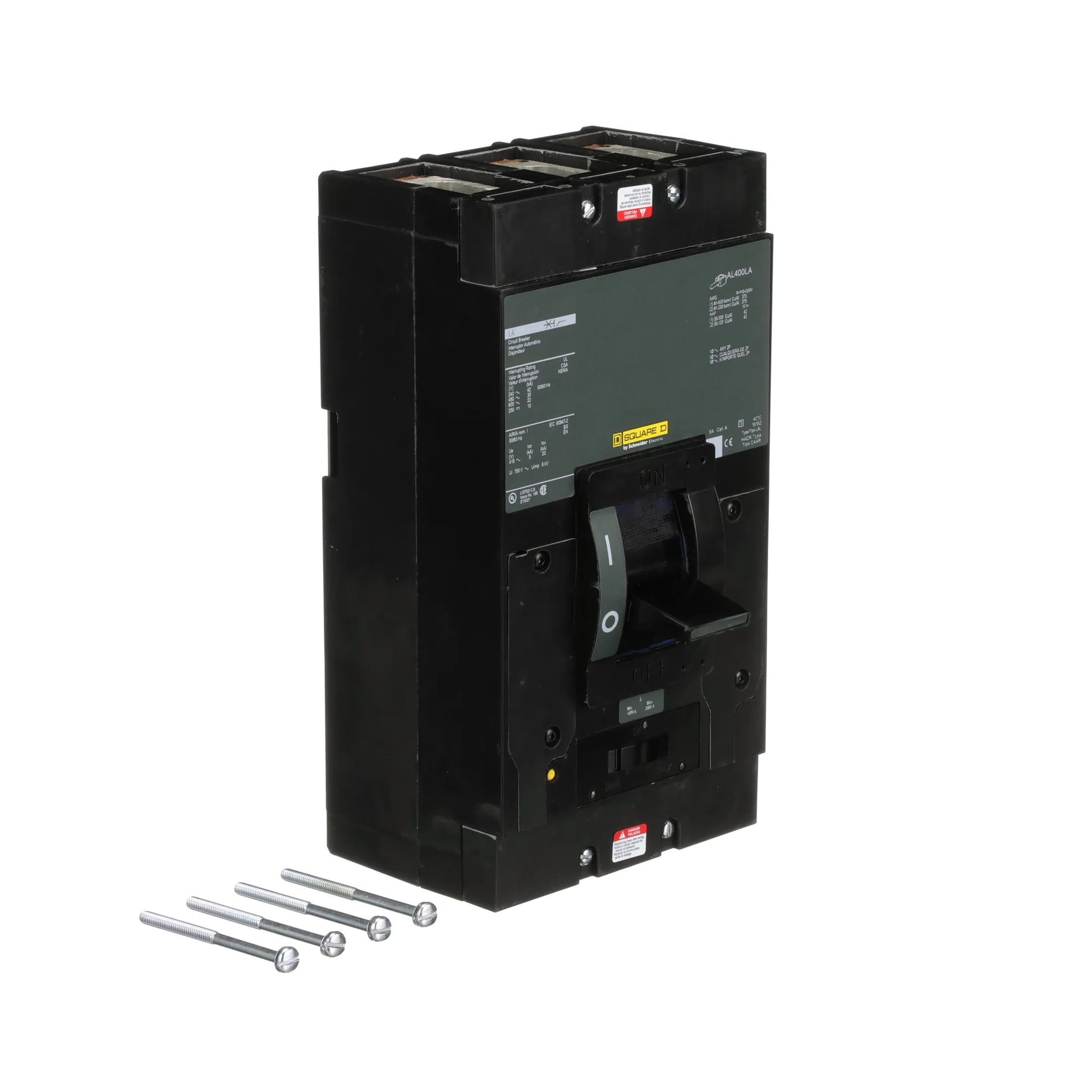

Square D LAL36125 Circuit Breaker | 600V 125A 3P 30kA@480V Feed-Thru LAL Series

Product Description:
The Square D LAL36125 is a Molded Case Circuit Breaker from the LAL Series family. It features a 3-pole design with a 600V, 125A rating and a 30kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: LAL36125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 30kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901848400
✔ GTIN: 00785901848400
✔ Country of Origin: United States

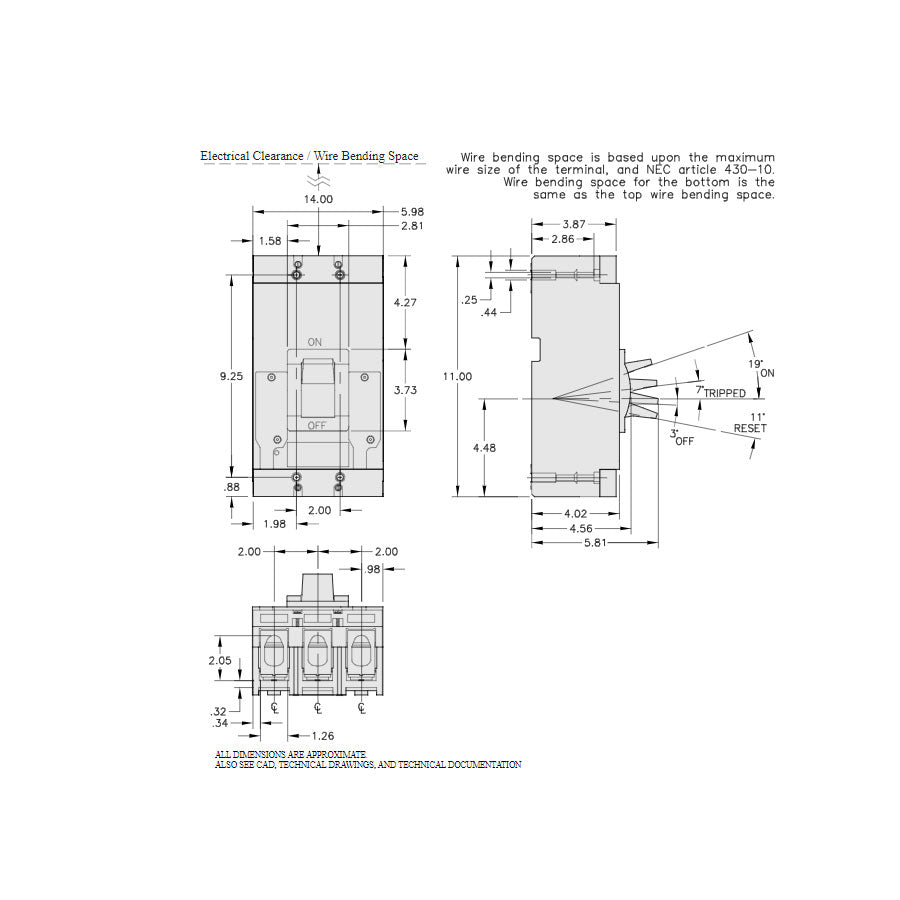

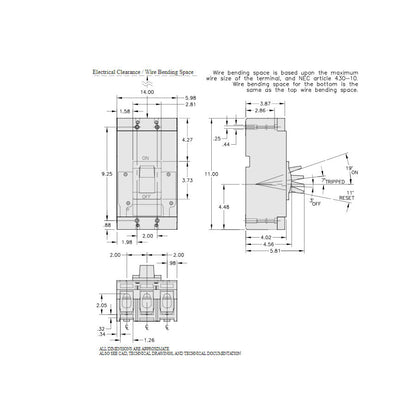

✔ Dimensions: Height 11 in (279.40 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 7.22
✔ Certification: UL, CSA, IEC
✔ Wire Size: AWG 1, 250/600KCmil Aluminum/Copper
