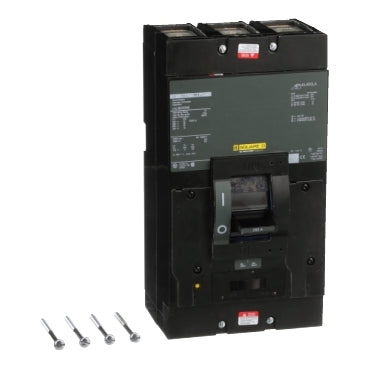

Square D LAL36250MB Circuit Breaker | 600V 250A 3P 30kA@480V Bolt-On LAL Series

Product Description:
The Square D LAL36250MB is a 3-pole molded case circuit breaker designed for industrial and commercial electrical systems. It operates at 600 volts with a 250 amp rating and provides reliable circuit protection. This breaker features thermal magnetic protection and a bolt-on connection for secure installation.

Key Features:
✔ Part Number: LAL36250MB
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 30kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: L Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901005544
✔ GTIN: 00785901005544
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 11 in
✔ Weight: 7.37
✔ Standards: IEC, CSA, UL Listed
✔ Certification: IEC, CSA, UL Listed
✔ Wire Size: AWG 1, 600KCmil, AWG 1, 250KCmil, Aluminum/Copper
