Square D LAL36350MB Circuit Breaker | 600V 350A 3P 30kA@480V Feed-Thru LAL Series

Product Description:

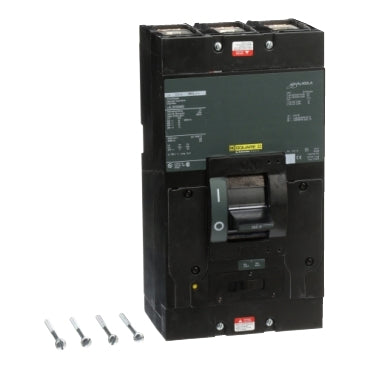

The Square D LAL36350MB is a Molded Case Circuit Breaker from the LAL Series. It features a 3-pole design with a 600V, 350A rating and a 30kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: LAL36350MB
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 350
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 30kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901005520
✔ GTIN: 00785901005520
✔ Country of Origin: United States
✔ Dimensions: Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 7.48
✔ Certification: IEC, CSA, UL
✔ Wire Size: AWG 1, 600KCmil, AWG 1, 250KCmil, Aluminum/Copper
