Square D LAL364001386 Circuit Breaker | LAL Series LAL 600V 400A

Product Description:

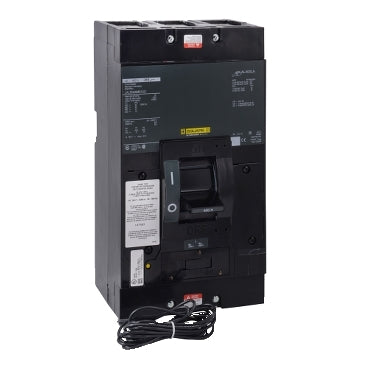

The Square D LAL364001386 is a Molded Case Circuit Breaker from the LAL Series. It features a 3-pole design with a 600V, 400A rating and a 30kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection. It also comes with a 24V shunt trip for added functionality.

Key Features:
✔ Part Number: LAL364001386
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600V
✔ Amperage: 400A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 30kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: L Frame
✔ GTIN: 00785901116233
✔ Dimensions: 5.84" D x 6" W x 11" H (148.34mm x 152.40mm x 279.40mm)
✔ Weight: 20 lbs
