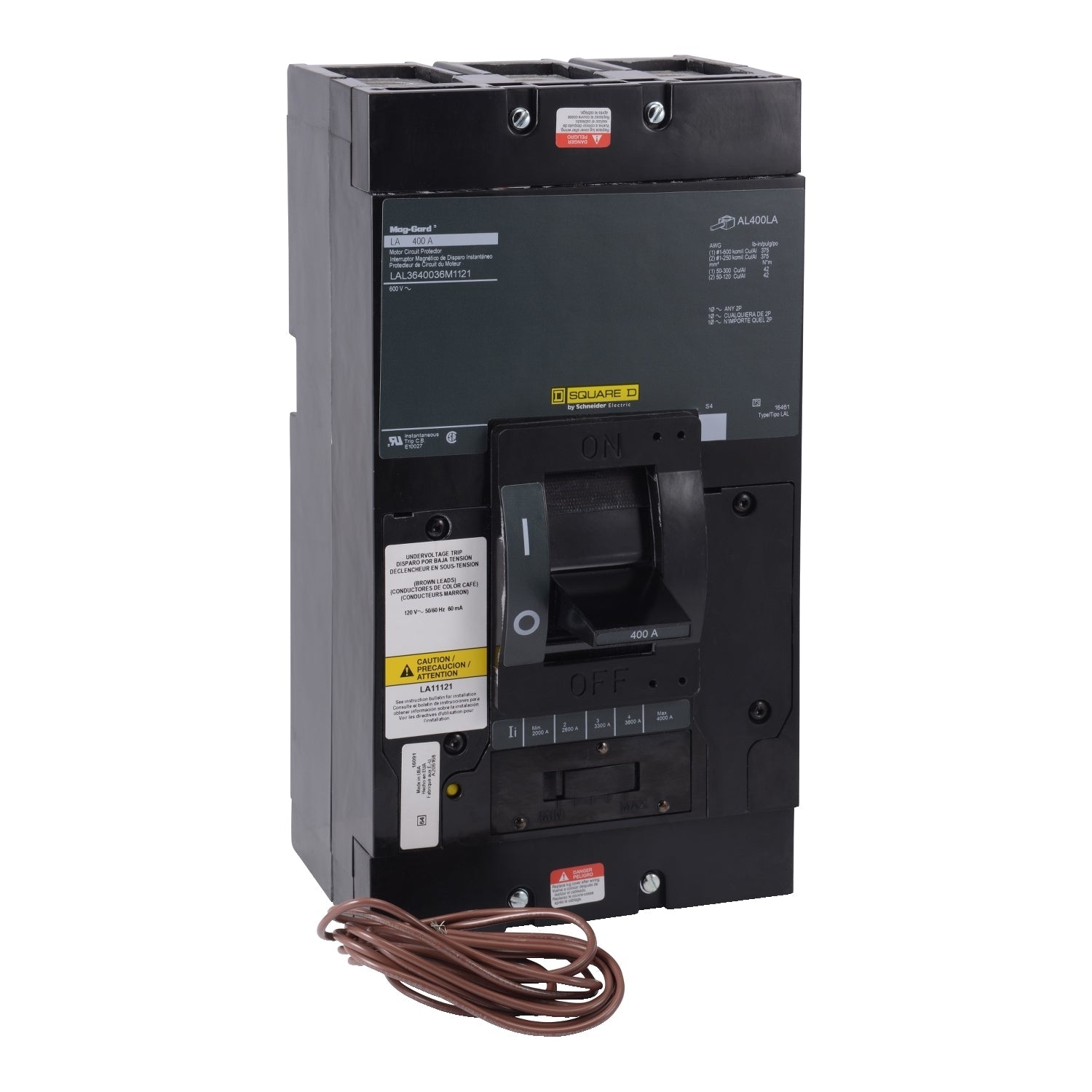

Square D LAL3640030M Circuit Breaker | 600V 400A 3P 30kA@480V Feed-Thru LAL Series

Product Description:
The Square D LAL3640030M is a Molded Case Circuit Breaker from the LAL Series. It features a 3-pole design with a 600V, 400A rating and a 30kA@480V AIC rating. This breaker uses a Feed-Thru connection and offers Magnetic Only protection. It is ideal for industrial and commercial electrical systems.

Key Features:
✔ Part Number: LAL3640030M
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 30kA@480V
✔ Connection: Feed-Thru
✔ Protection: Magnetic Only
✔ UPC: 785901358374
✔ GTIN: 00785901358374
✔ Country of Origin: United States
✔ Dimensions: Height 11 in (279.40 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Certification: UL LISTED-CSA-IEC
✔ Wire Size: AWG 1 to 250/600KCmil
