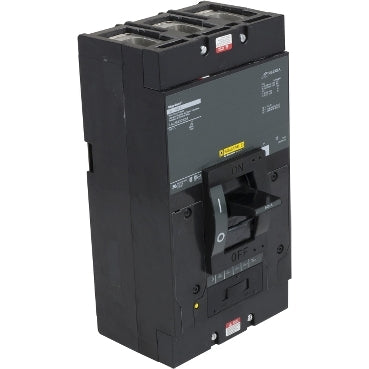

Square D LAL3640032M Circuit Breaker | 600V 400A 3P 30kA@480V Feed-Thru LAL Series

Product Description:
The Square D LAL3640032M is a Molded Case Circuit Breaker from the LAL Series. It features a 3-pole design with a 600V, 400A rating and a 30kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Magnetic Only protection. It is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: LAL3640032M
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 30kA@480V
✔ Connection: Feed-Thru
✔ Functions: I - Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 400A/LA
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
✔ Breaker Type: Motor Circuit Protector
✔ Protection: Magnetic Only
✔ Phase Connection: ABC
✔ UPC: 785901650478
✔ GTIN: 00785901650478
✔ Country of Origin: Mexico
✔ Dimensions: Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 7.49
✔ Panel Type: NEMA Motor Starters
✔ Standards: CSA, IEC, UL Listed
✔ Certification: IEC, UL, CSA
