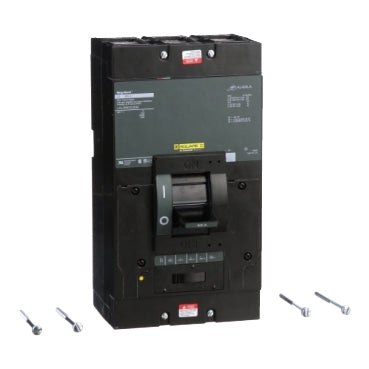

Square D LAL3640035M Molded Case Circuit Breaker | 600V 400A 3P 30kA@480V Bolt-On LAL Series
Square D LAL3640035M Molded Case Circuit Breaker | 600V 400A 3P 30kA@480V Bolt-On LAL Series
Price:
Sale
Sold out
Regular price
$4,941.29 USD
Regular price
$4,619.00 USD
Sale price
$4,941.29 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D LAL3640035M is a Molded Case Circuit Breaker from the LAL Series family. It is a 3-pole, 400 amp breaker rated for 600 Volts with an AIC rating of 30kA@480V. This model features a Bolt-On connection and provides Magnetic Only protection. It is designed for use in industrial electrical systems.
Key Features:
✔ Part Number: LAL3640035M
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 400
✔ Poles: 3
✔ AIC rating: 30kA@480V
✔ Connection: Bolt-On
✔ Functions: I - Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 400A/LA
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
✔ Breaker Type: Motor Circuit Protector
✔ Protection: Magnetic Only
✔ Phase Connection: ABC
✔ UPC: 785901650492
✔ GTIN: 00785901650492
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 11 in
✔ Weight: 7.3
✔ Panel Type: NEMA Motor Starters
✔ Standards: CSA, IEC, UL listed
✔ Certification: CSA, IEC, UL listed
The Square D LAL3640035M is a Molded Case Circuit Breaker from the LAL Series family. It is a 3-pole, 400 amp breaker rated for 600 Volts with an AIC rating of 30kA@480V. This model features a Bolt-On connection and provides Magnetic Only protection. It is designed for use in industrial electrical systems.
Key Features:
✔ Part Number: LAL3640035M
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 400
✔ Poles: 3
✔ AIC rating: 30kA@480V
✔ Connection: Bolt-On
✔ Functions: I - Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 400A/LA
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
✔ Breaker Type: Motor Circuit Protector
✔ Protection: Magnetic Only
✔ Phase Connection: ABC
✔ UPC: 785901650492
✔ GTIN: 00785901650492
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 11 in
✔ Weight: 7.3
✔ Panel Type: NEMA Motor Starters
✔ Standards: CSA, IEC, UL listed
✔ Certification: CSA, IEC, UL listed
