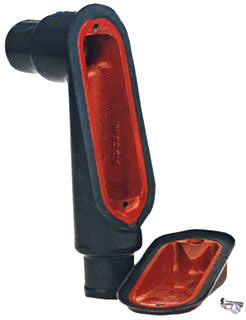

LBD8800 Eaton Crouse-Hinds Condulet LBD Mogul Conduit Body, 3 in

LBD8800 Eaton Crouse-Hinds Condulet LBD Mogul Conduit Body, 3 in

LBD8800 gives installers a large 3 in LBD pulling body at a 90 degree bend in rigid conduit. The angled access opening lets conductors pull straight through either tapered threaded hub, while the domed cover provides room for the bend.

This is the standard Feraloy iron alloy version, not the aluminum SA option. The furnished cover and neoprene gasket complete the documented LBD body configuration.

Common Applications

• Making a 90 degree turn while pulling large or stiff conductors
• Bringing conduit service into a building
• Creating a conductor entry point at a motor
• Opening rigid conduit runs for maintenance and later changes

Key Features

• Pulling access: Cover opening is angled for straight pulling from either direction
• Cover profile: Domed shape relieves strain on conductor insulation
• Hub style: Taper tapped threads include integral bushings
• Supplied parts: Body comes with its cover and gasket
• Surface protection: Iron alloy receives an electrogalvanized and aluminum acrylic painted finish

Specifications

• Conduit trade size: 3 in
• Body and cover material: Feraloy iron alloy
• Location class: Ordinary/Non-Hazardous Locations
• Code basis: NEC/CEC
• Published bend radius: 7.0 in
• Published capacity: 212.0 cu in
• Overall product size: 19.69 x 5.63 x 9.56 in
• Item weight: 33.25 lb
• Catalog standards: UL 514B, CSA C22.2 No. 18, Federal Specification W-C-586D

Product Identification

• Eaton catalog number: LBD8800
• Series name: Eaton Crouse-Hinds series
• Condulet type: LBD mogul conduit body
• UPC code: 782274518800
• GTIN code: 00782274518800

FAQ

What does LBD8800 identify?

The number identifies Eaton's 3 in Condulet LBD mogul body made from Feraloy iron alloy.

Does this part have the SA material suffix?

It does not. The SA suffix marks Eaton's copper-free aluminum option, and it is absent from LBD8800.

What access hardware is included?

The LBD catalog specifies a cover and neoprene gasket as furnished components.

How much pulling space is published?

Eaton's exact chart row lists a 7 in bend radius and 212 cubic inches of internal volume.

Is this a hazardous-location fitting?

The manufacturer classifies this exact item for ordinary/non-hazardous locations.
