Product Description:

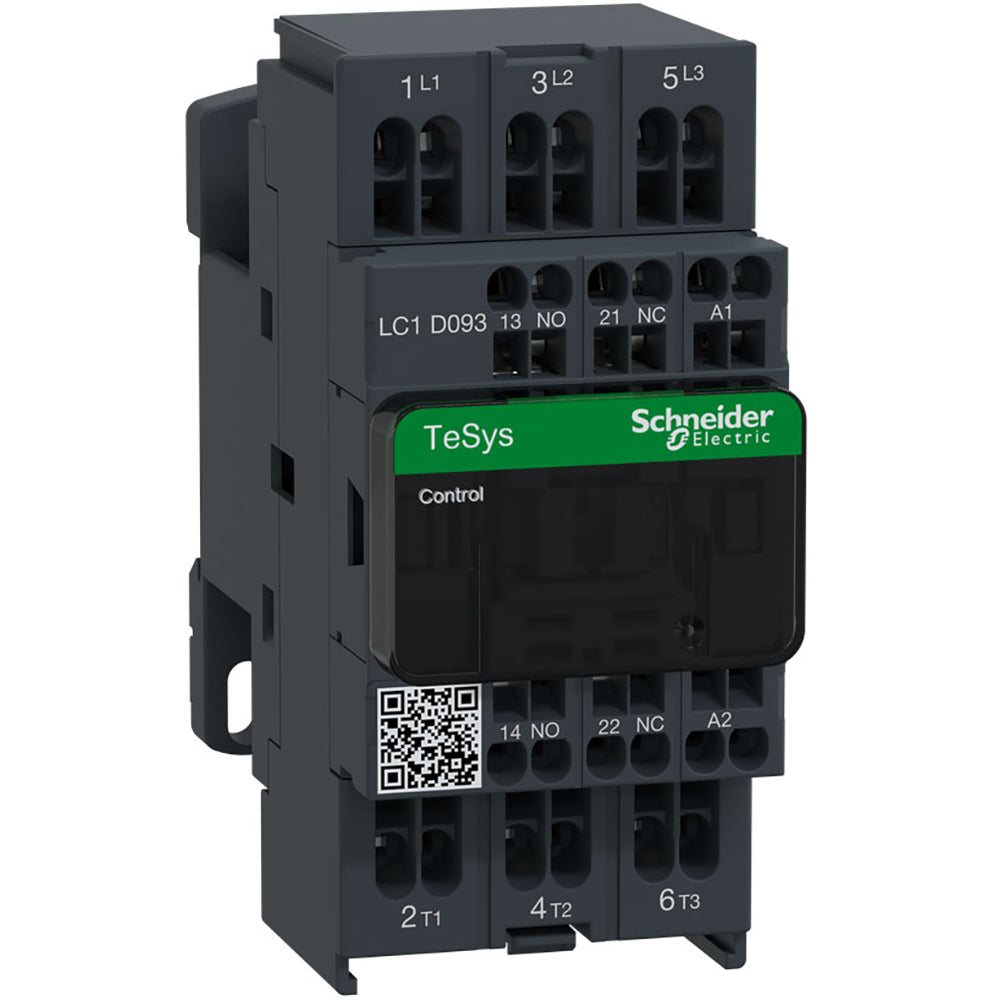

The Schneider Electric LC1D093G7 is a 3-pole contactor designed for motor control applications. It operates at 600V and 25A, supporting various horsepower ratings across different voltage phases. This model includes a 110V coil and is suitable for both single-phase and three-phase motors. It meets multiple industry certifications for safety and performance.
Key Features:
✔ Part Number: LC1D093G7
✔ Manufacturer: Telemecanique/Schneider Electric
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 25
✔ Poles: 3
✔ Horse Power: 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 200/208 V AC 50/60 Hz for 3 phases motors-2 hp at 230/240 V AC 50/60 Hz for 3 phases motors-5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors-0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 110
✔ Coil Voltage Minimum: 110
✔ Frequency: AC 50/60 Hz
✔ UPC: 785901197249
✔ GTIN: 03389110802276
✔ Country of Origin: Indonesia
✔ Dimensions: 45 mm x 80 mm
✔ Weight: 1
✔ Certification: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, GOST, DNV, UL, GL, BV, CCC, CSA, LROS, RINA, UKCA, THIEC 60068-2-30
