Product Description:

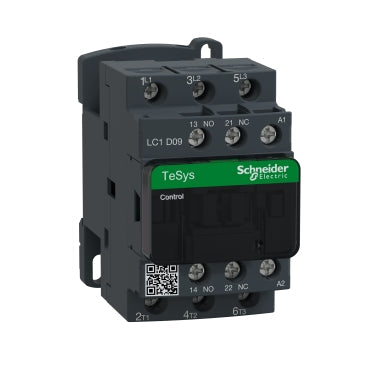

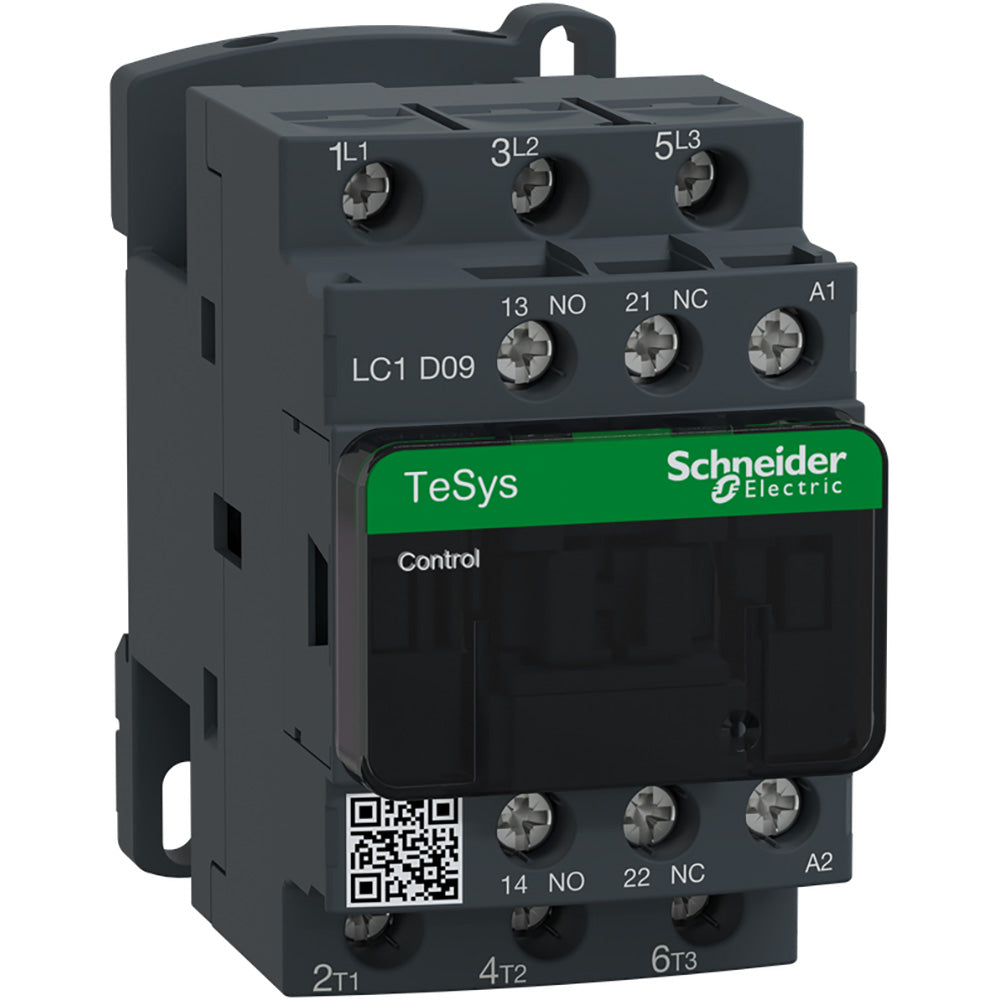

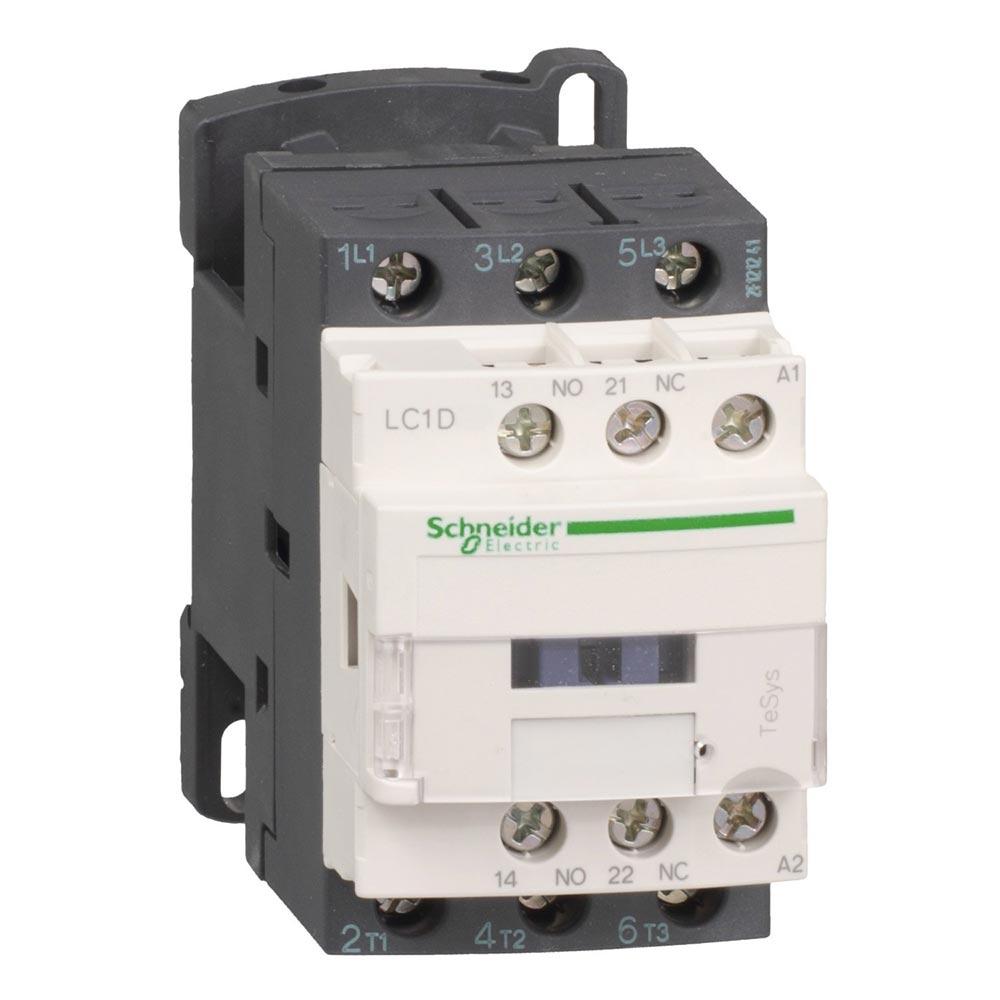

The Schneider Electric LC1D09B7 is a 600V 3-phase contactor with a 25A rating and 3 poles. It supports various horsepower ratings for both single-phase and three-phase motors, including 1 hp at 230/240V and 7.5 hp at 575/600V. This contactor includes a 24VAC coil and is designed for reliable motor control applications.
Key Features:
✔ Part Number: LC1D09B7
✔ Manufacturer: Schneider Electric
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 1 hp at 230/240V AC 50/60Hz for 1 phase motors-2 hp at 200/208V AC 50/60Hz for 3 phases motors-2 hp at 230/240V AC 50/60Hz for 3 phases motors-5 hp at 460/480V AC 50/60Hz for 3 phases motors-7.5 hp at 575/600V AC 50/60Hz for 3 phases motors-0.33 hp at 115V AC 50/60Hz for 1 phase motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 24
✔ Full Load Amps: Full Load Amps-Inductive 9A Full Load Amps-Resistive 20A
✔ Coil Voltage Minimum: 24
✔ Frequency: 50/60 Hz
✔ UPC: 785901206927
✔ GTIN: 03389110348675
✔ Country of Origin: France
✔ Dimensions: 1.77 in (45 mm) x 3.03 in (77 mm)
✔ Weight: 0.77
✔ Certification: CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1; IEC 60947-5-1; UL 508; IEC 60335-1
