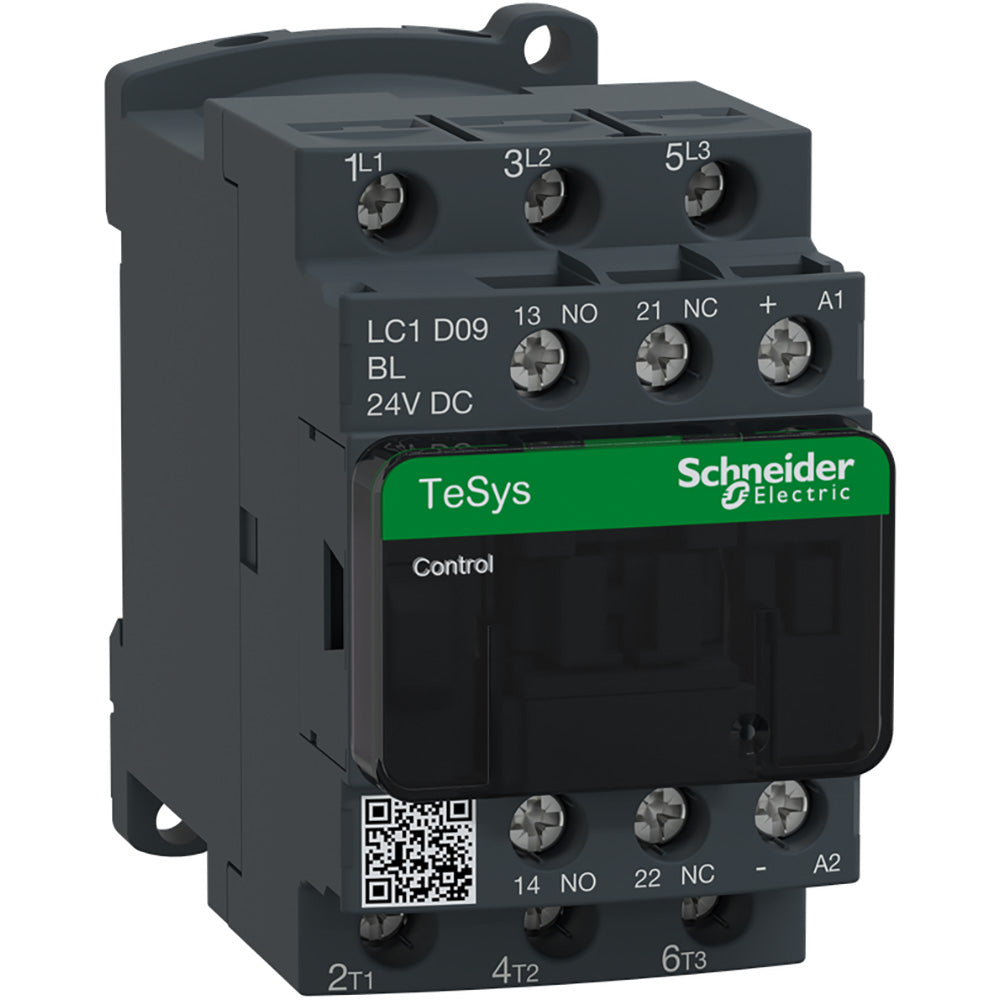

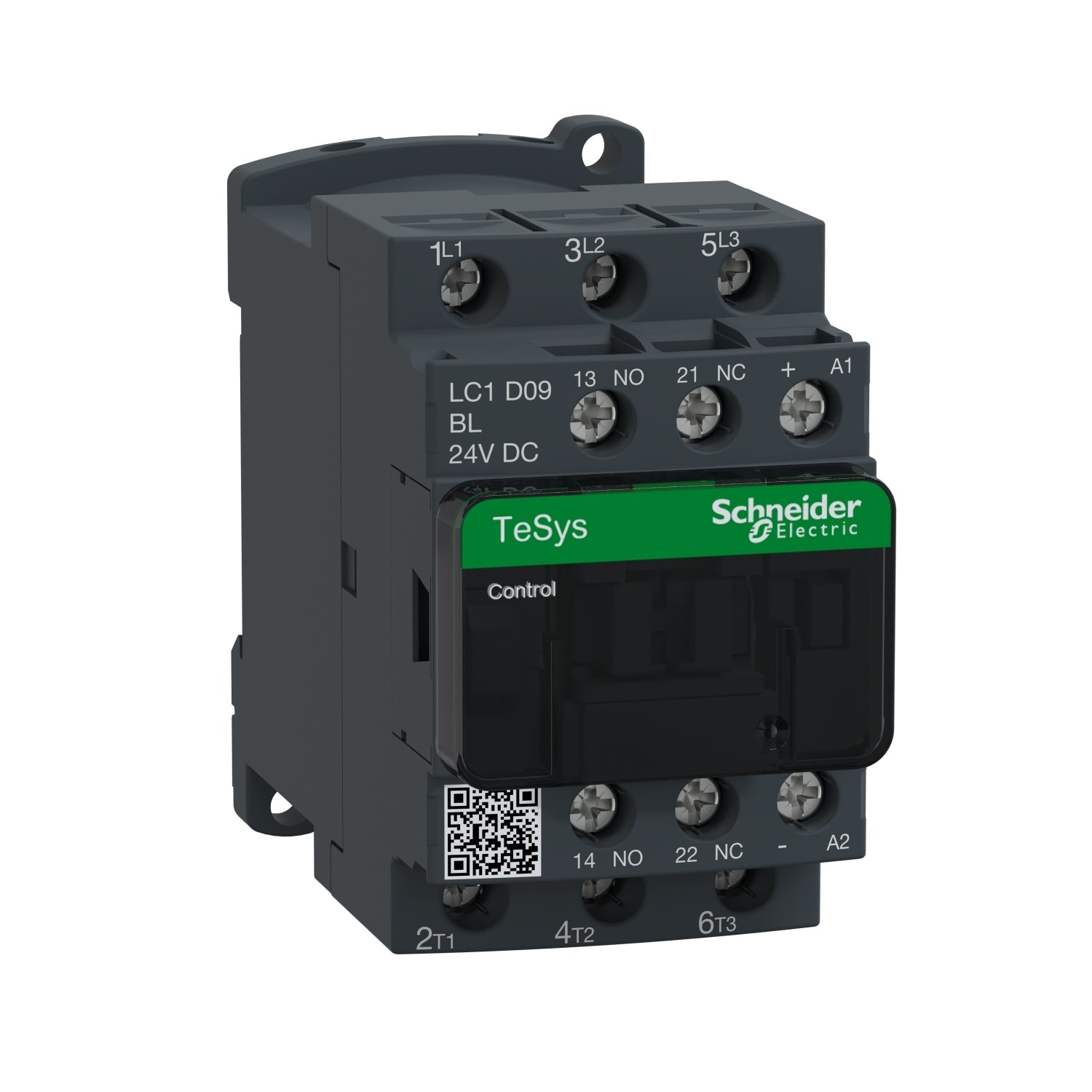

Square D LC1D09BL Contactor | 3P 3Ph 690V 25A 24V Coil TeSys D

Product Description:
The Square D LC1D09BL is a 3-pole contactor designed for 3-phase motor control with a maximum voltage of 690V and a 25A rating. It features a 24V coil and supports a range of horsepower ratings for both single-phase and three-phase motors across various voltages. This TeSys D IEC Contactor is built for reliable performance in industrial applications.

Key Features:
✔ Part Number: LC1D09BL
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 690
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 200/208 V AC 50/60 Hz for 3 phases motors-2 hp at 230/240 V AC 50/60 Hz for 3 phases motors-5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors-0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 24
✔ Coil Voltage Minimum: 24
✔ UPC: 038911036107
✔ GTIN: 03389110361070
✔ Country of Origin: Indonesia
✔ Dimensions: 1.77 in x 3.03 in
✔ Weight: 4
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
