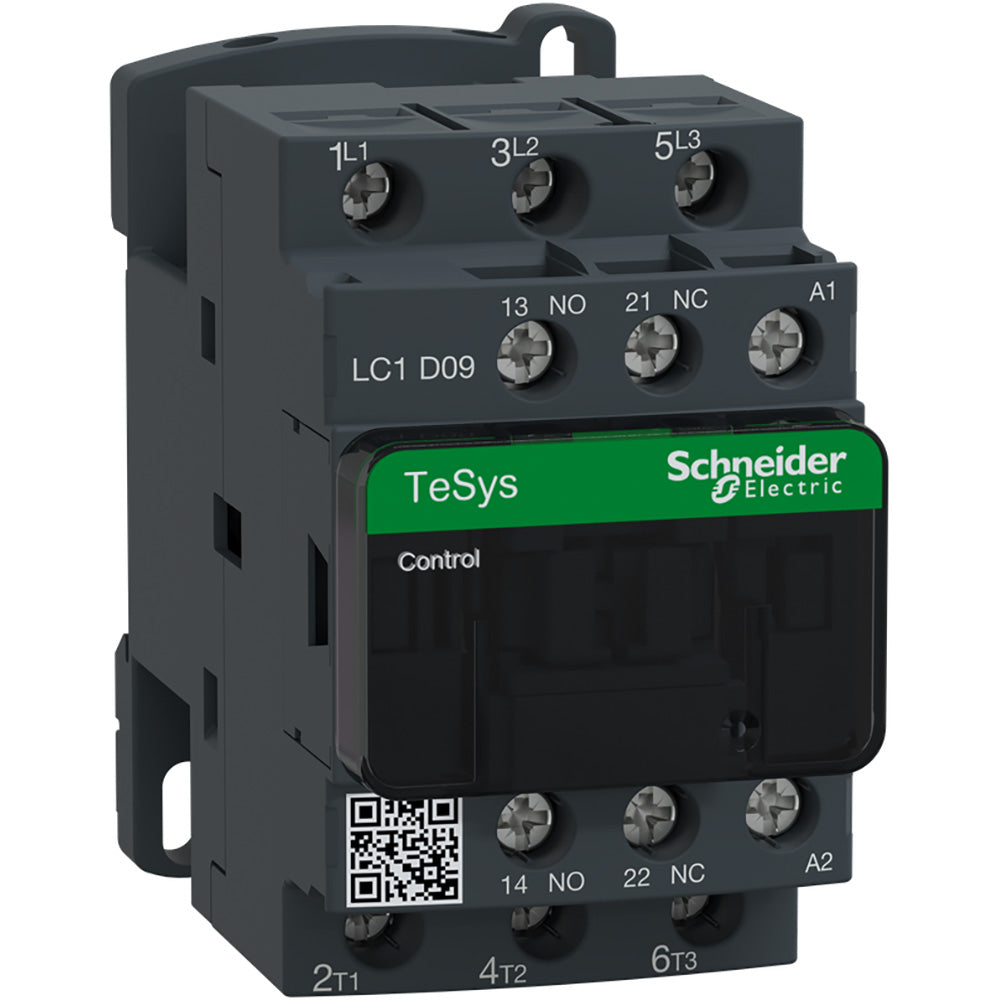

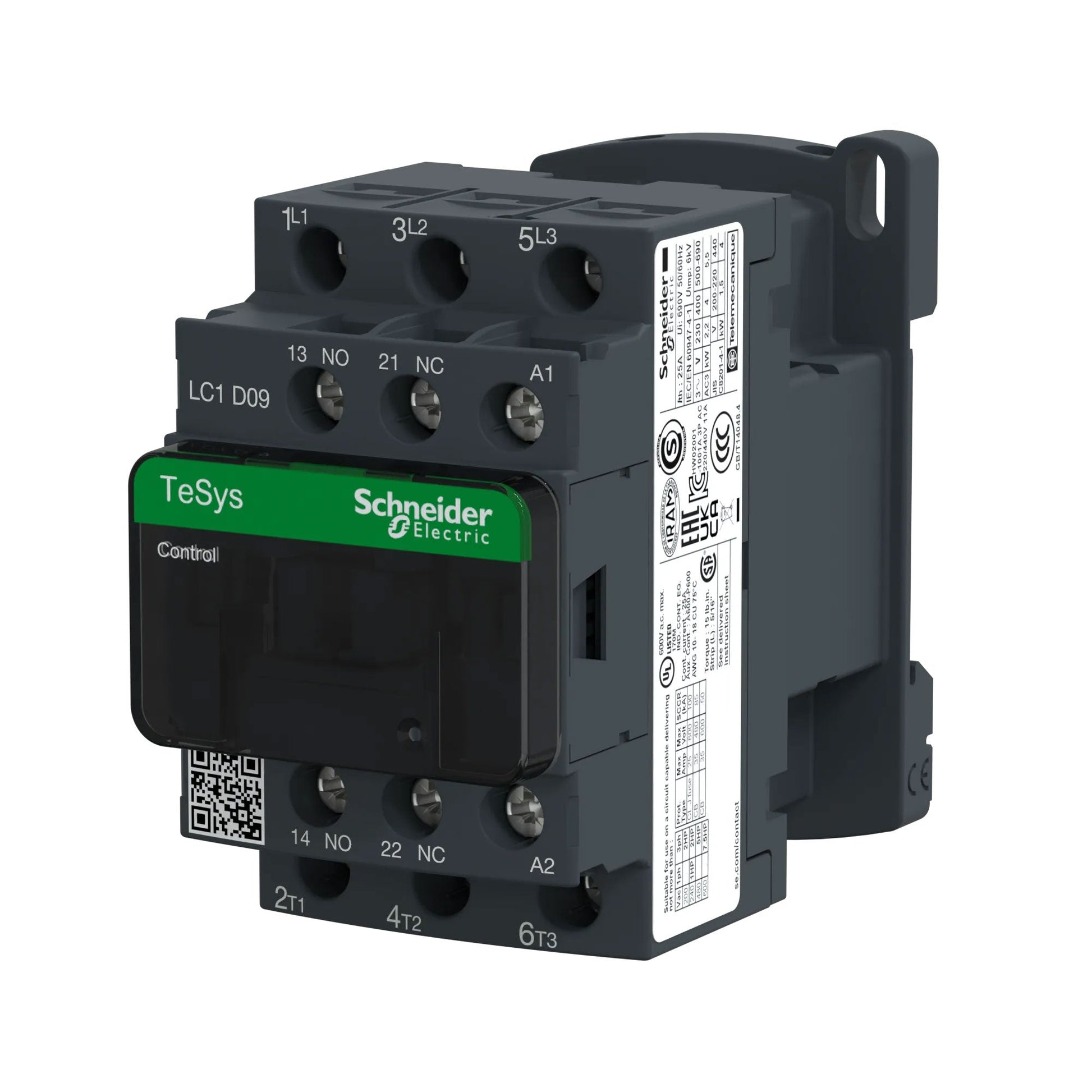

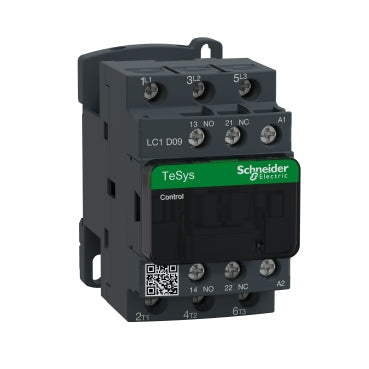

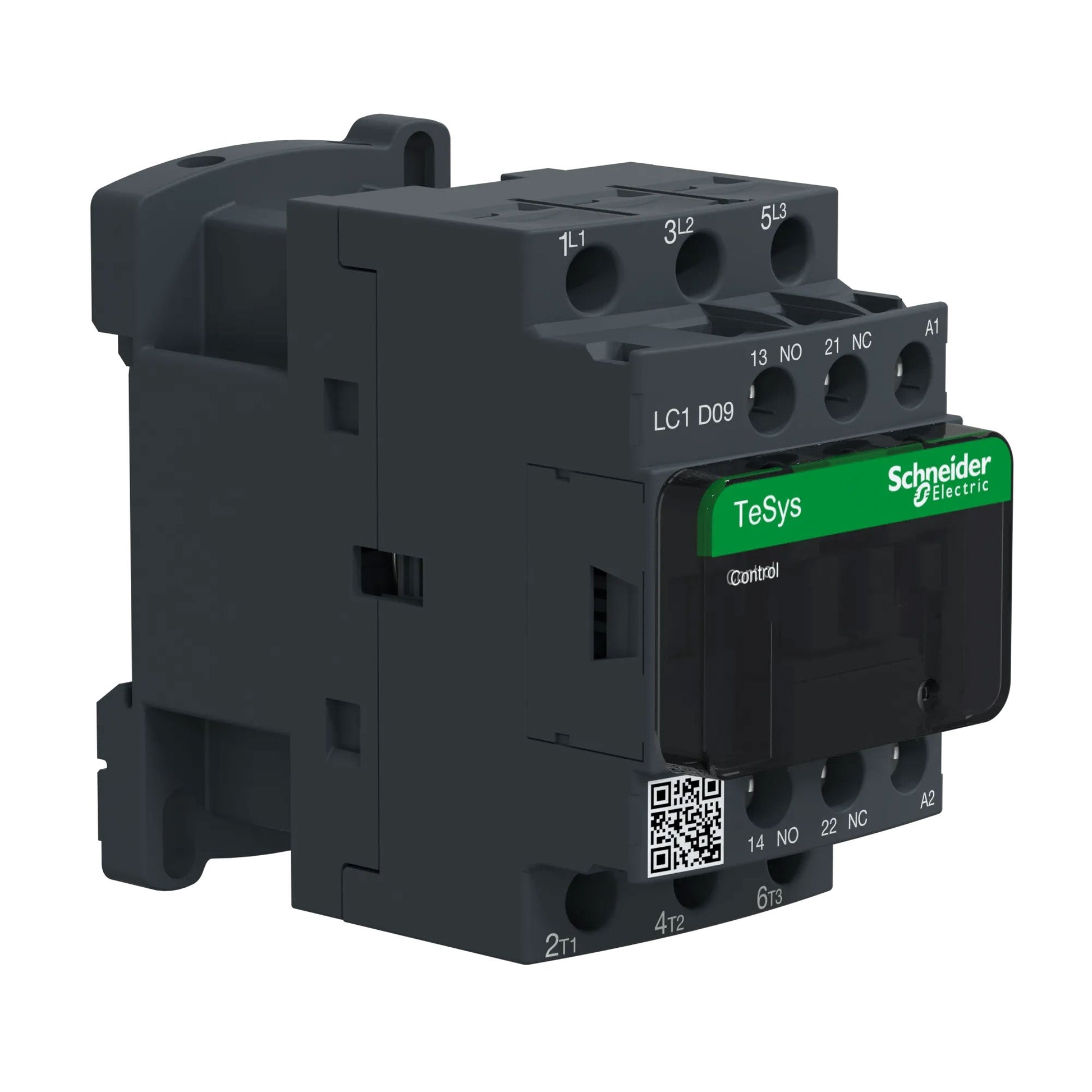

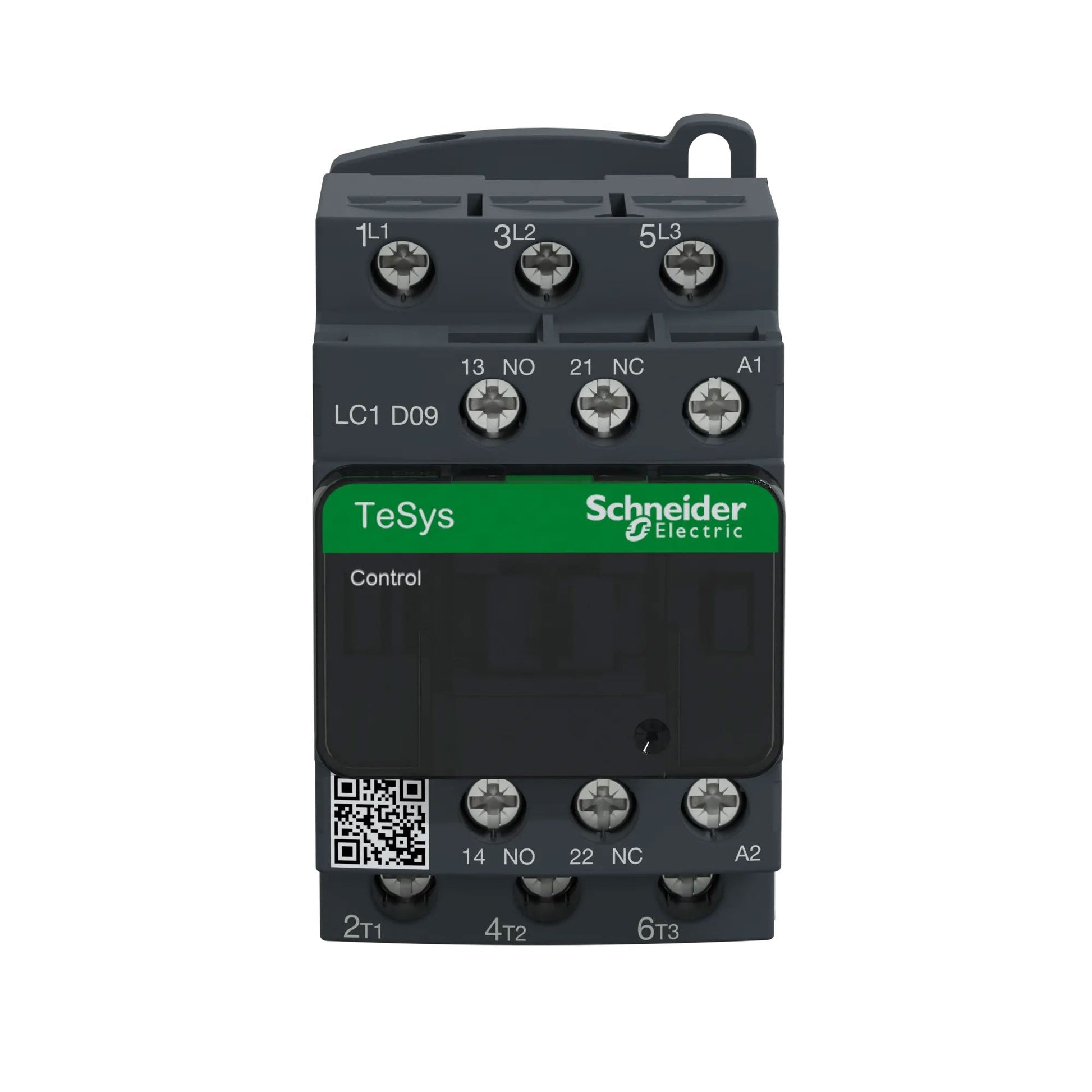

Schneider Electric LC1D09G7 Contactor 3P 600V 25A 120V Coil

Product Description:
The Schneider Electric LC1D09G7 is a 3-pole contactor designed for motor starting applications, rated for 600V and 25A. It supports a range of horsepower ratings for both single-phase and three-phase motors, including 1 hp at 230/240V AC and up to 7.5 hp at 575/600V AC. This unit is equipped with a 120V coil and includes auxiliary contacts for enhanced control functionality.

Key Features:
✔ Part Number: LC1D09G7
✔ Manufacturer: Schneider Electric/Telemecanique
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 25
✔ Poles: 3
✔ Horse Power: 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 200/208 V AC 50/60 Hz for 3 phases motors-2 hp at 230/240 V AC 50/60 Hz for 3 phases motors-5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors-0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
✔ Aux Contacts: 1NO/1NC
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 9A Full Load Amps-Resistive 20A
✔ Coil Voltage Minimum: 120

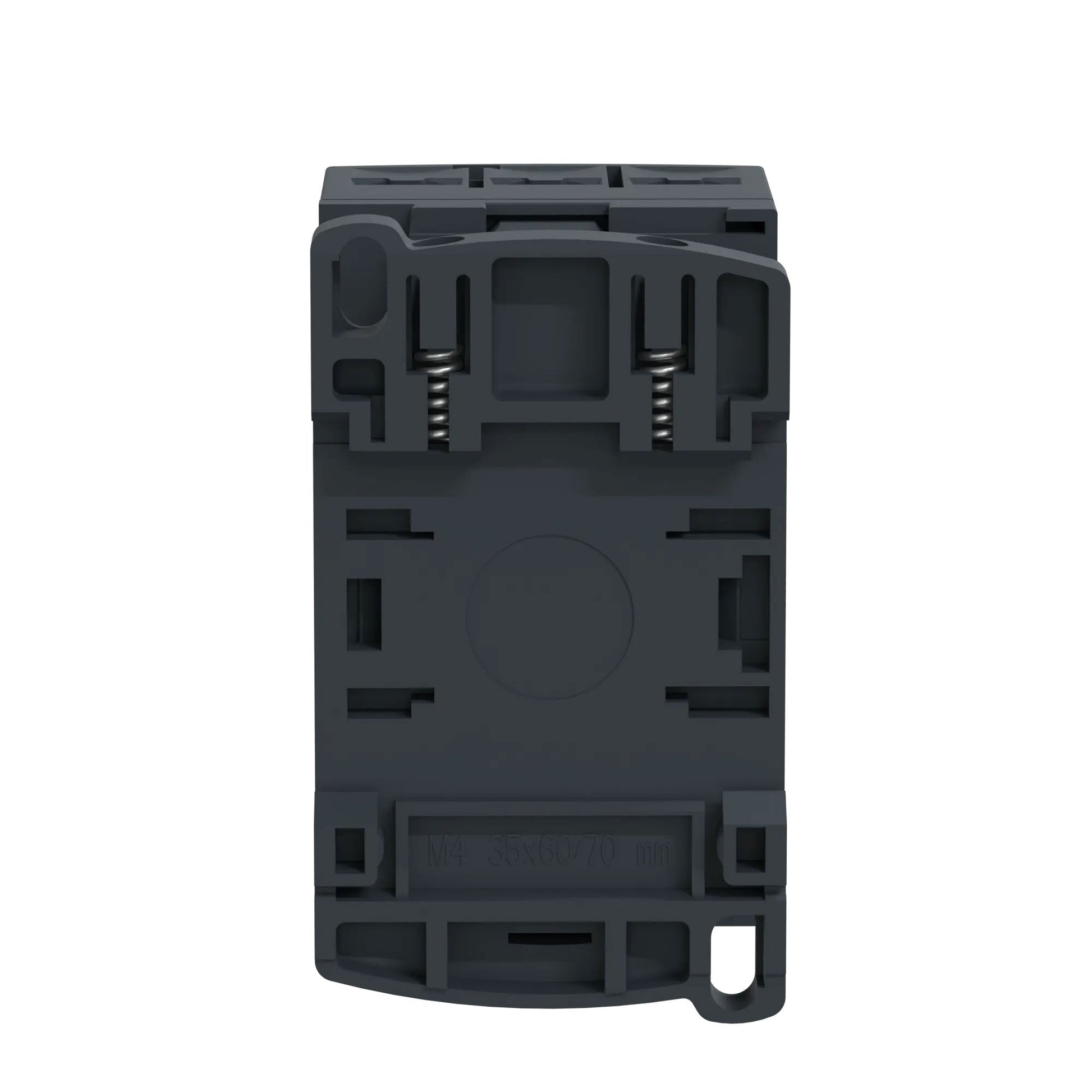

✔ Mounting: Rail/Plate
✔ UPC: 785901206958
✔ GTIN: 03389110348835
✔ Country of Origin: Indonesia

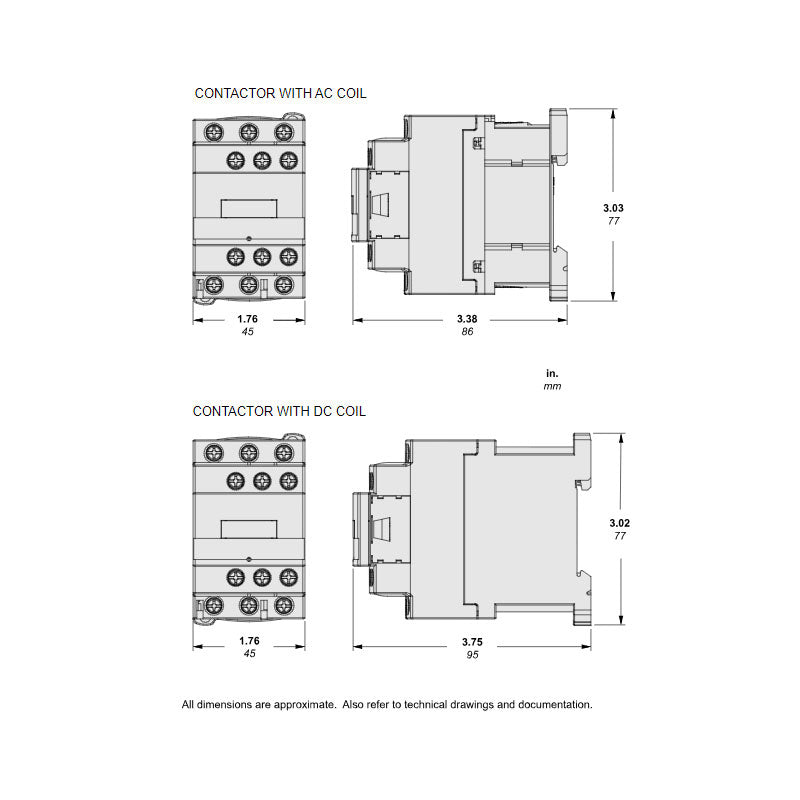

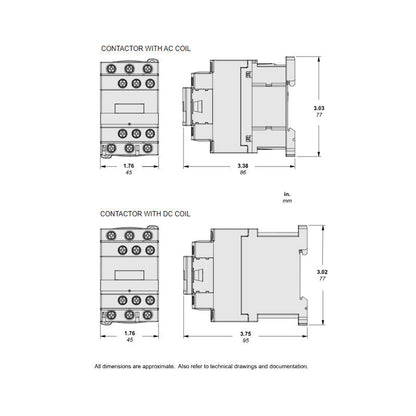

✔ Dimensions: 1.77 in x 3.03 in
✔ Weight: 0.8 lb
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
