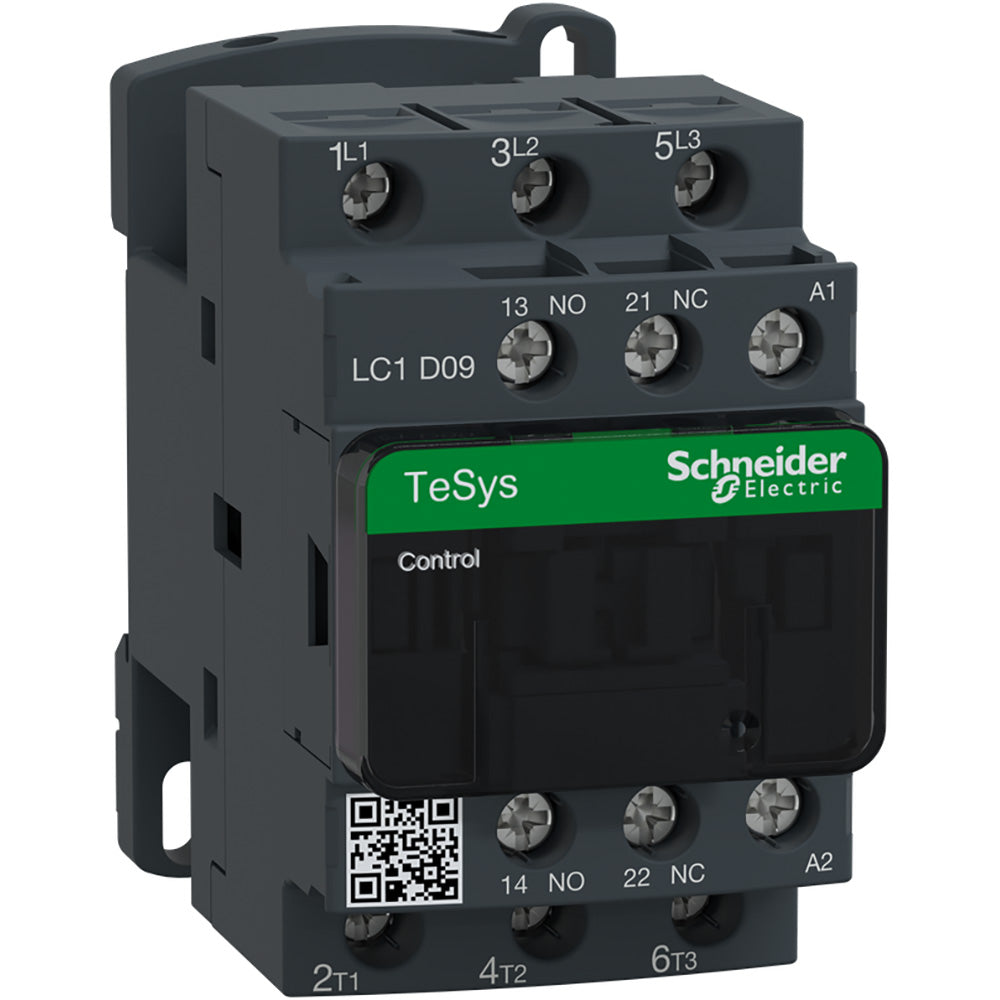

Square D LC1D09M7 Contactor | 3 Phase 600V 25A 220V Coil TeSys D

Product Description:
The Square D LC1D09M7 is a versatile 3-phase contactor rated for 600V and 25A. It is designed for motor control applications with a 220VAC coil and supports various horsepower ratings across different voltages. This TeSys D IEC Contactor is suitable for industrial use and comes with multiple mounting options.

Key Features:
✔ Part Number: LC1D09M7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 3
✔ Horse Power: 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 200/208 V AC 50/60 Hz for 3 phases motors-2 hp at 230/240 V AC 50/60 Hz for 3 phases motors-5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors-0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 220
✔ Full Load Amps: Full Load Amps-Inductive 9A Full Load Amps-Resistive 25A
✔ Coil Voltage Minimum: 220
✔ Mounting: Plate,Rail
✔ Frequency: 50/60 Hz
✔ UPC: 038911034887
✔ GTIN: 03389110348873
✔ Country of Origin: United States
✔ Dimensions: 1.77 in x 3.03 in
✔ Weight: 0.77
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
