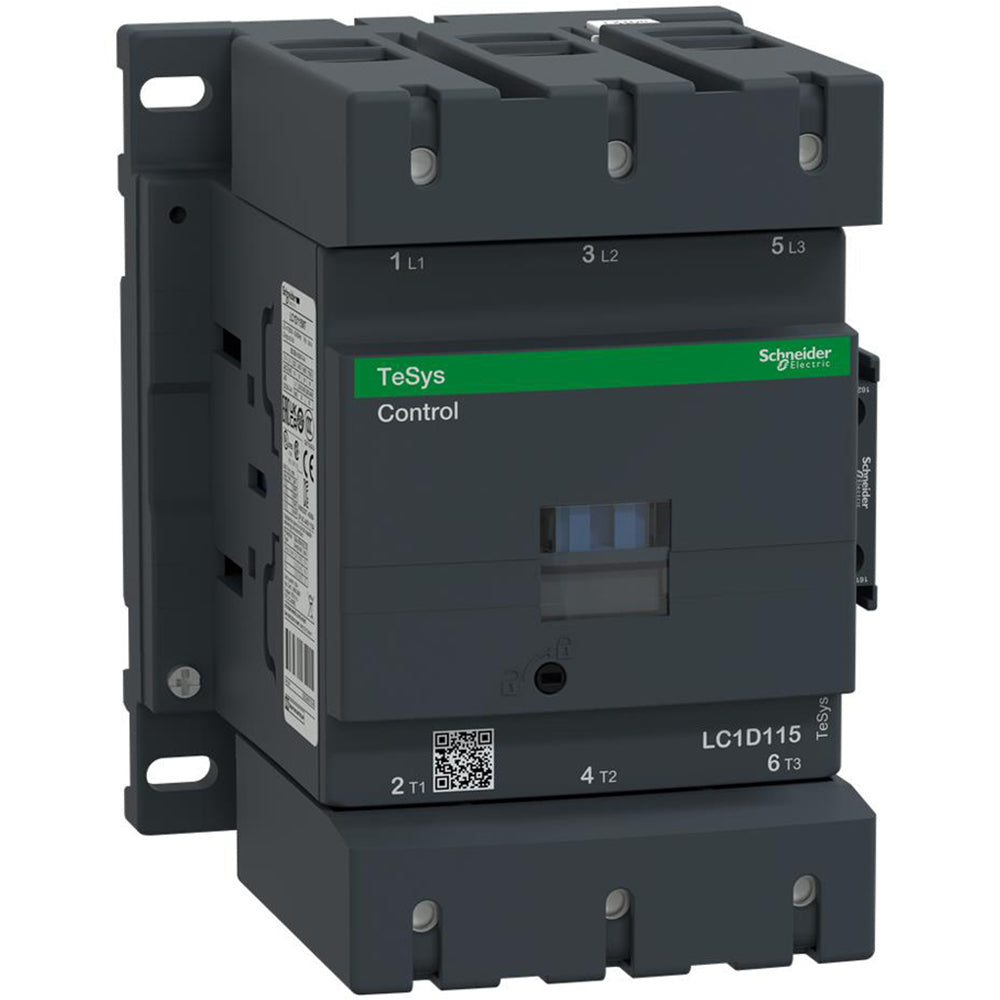

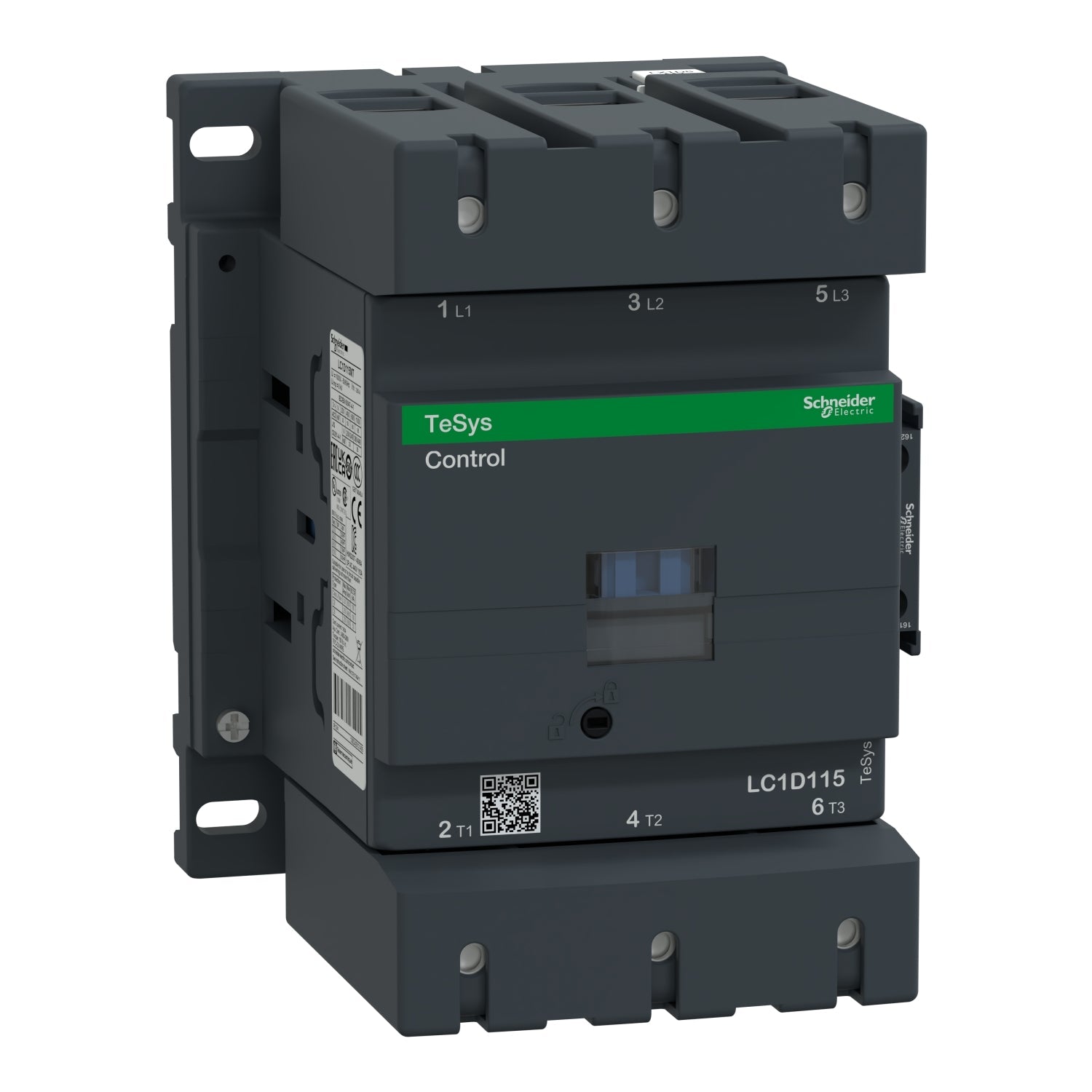

Schneider Electric LC1D115F7 Contactor 3P 25A 110V Coil TeSys D

Product Description:
The Schneider Electric LC1D115F7 TeSys D Contactor is a 3-phase 25A motor control device designed for industrial applications. It supports a range of horsepower ratings from 30 hp to 100 hp depending on the voltage. This contactor comes equipped with a 110V AC coil and includes three normally open auxiliary contacts for versatile control setups.

Key Features:
✔ Part Number: LC1D115F7
✔ Manufacturer: Schneider Electric
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: TeSys D
✔ Type: LC1D
✔ Voltage: 6
✔ Amperage: 25
✔ Phase: 3
✔ Horse Power: 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-40 hp at 230/240 V AC 50/60 Hz for 3 phases motors-75 hp at 460/480 V AC 50/60 Hz for 3 phases motors-100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 11
✔ Full Load Amps: Full Load Amps-Inductive 115A Full Load Amps-Resistive 200A
✔ Coil Voltage Minimum: 110
✔ Frequency: 50/60 Hz
✔ UPC: 038911037708
✔ GTIN: 03389110377088
✔ Country of Origin: Czechia
✔ Dimensions: 120 mm x 158 mm
✔ Weight: 12
✔ Certification: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, BV, UL, GL, DNV, LROS, RINA, CSA, CCC, GOST, UKCA, CE, THIEC 60068-2-30
