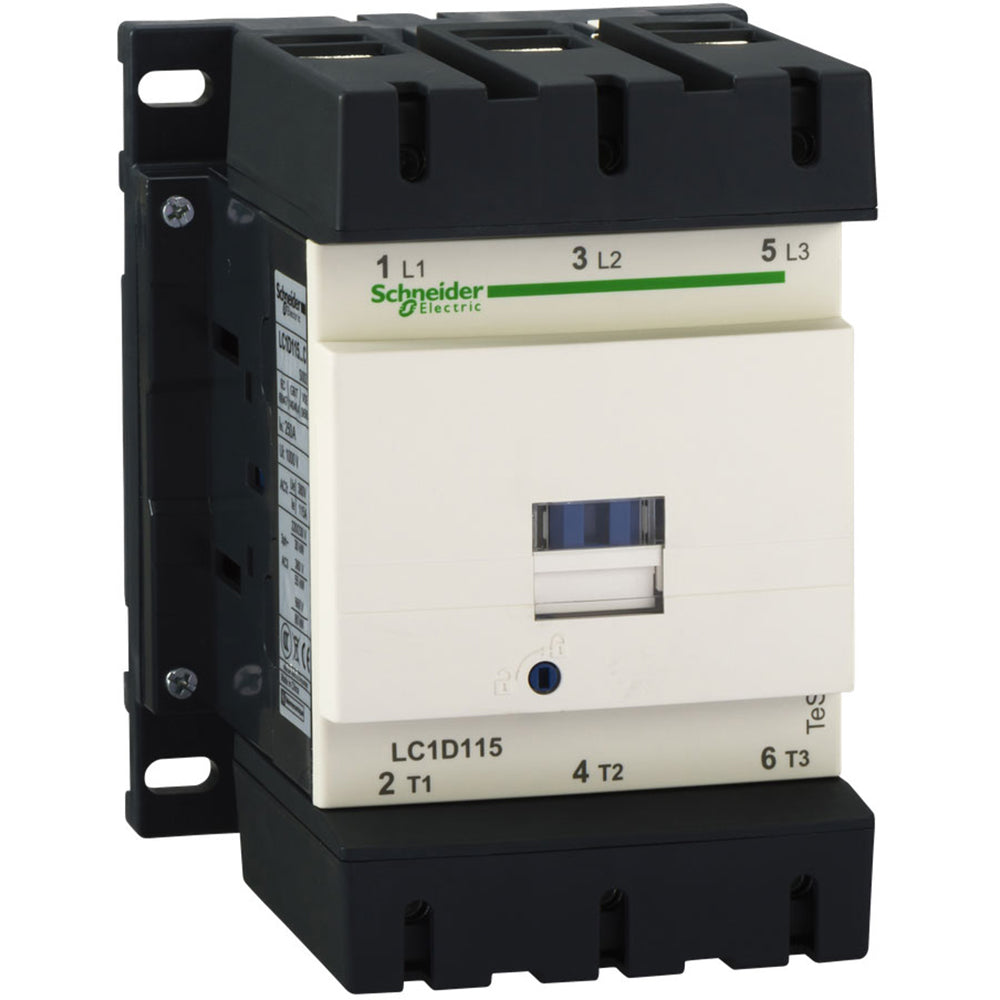

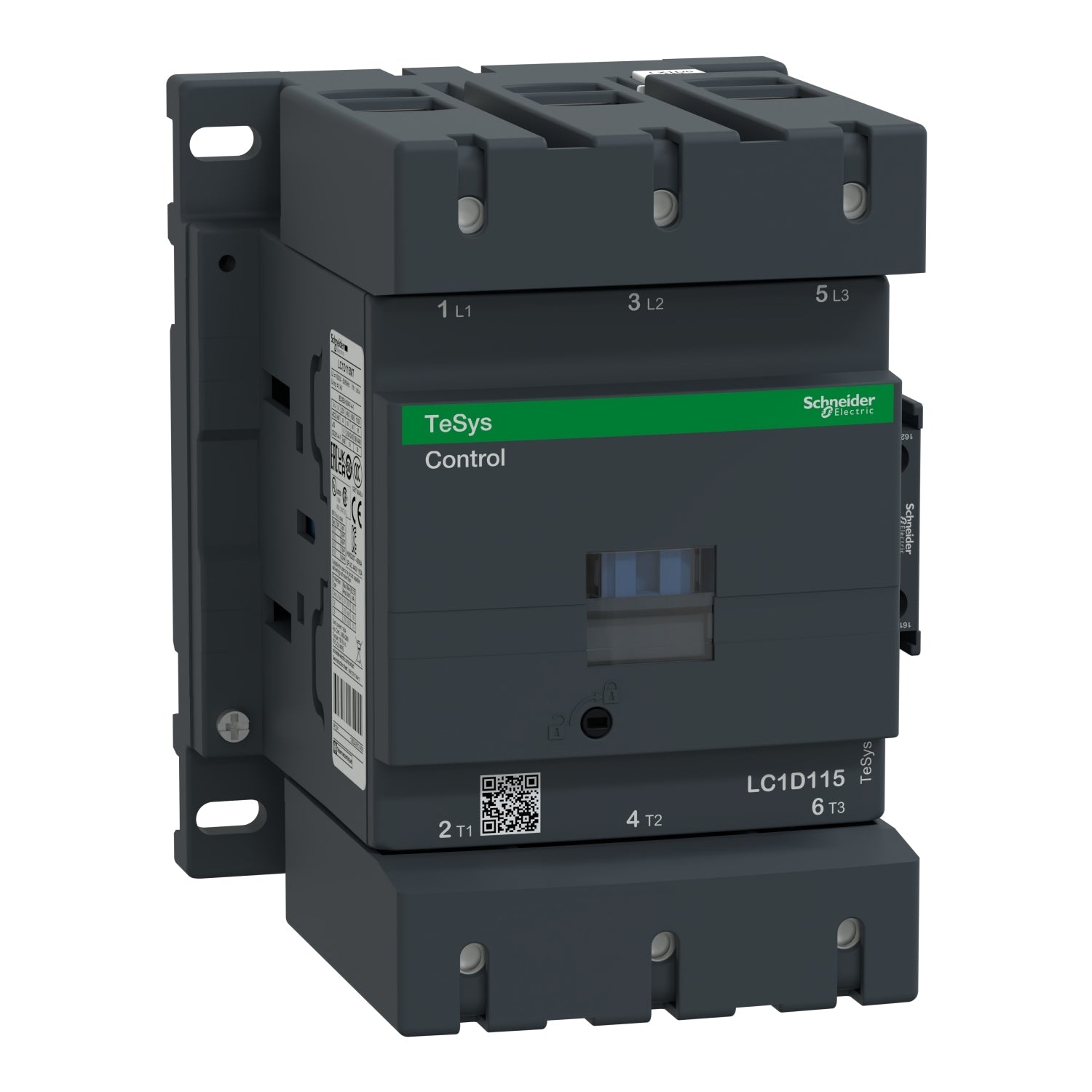

Schneider Electric LC1D115LE7 Contactor 3P 600V 250A 208V Coil TeSys D

Product Description:
The Schneider Electric LC1D115LE7 is a 3-pole contactor designed for reliable motor starting and control. It operates at up to 600V and 250A, supporting a range of horsepower ratings for three-phase motors. This unit is equipped with a 208V AC coil and includes three normally open auxiliary contacts. It is built to meet multiple international standards for safety and performance.

Key Features:
✔ Part Number: LC1D115LE7
✔ Manufacturer: Telemecanique/Schneider Electric
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 250
✔ Poles: 3
✔ Horse Power: 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-40 hp at 230/240 V AC 50/60 Hz for 3 phases motors-75 hp at 460/480 V AC 50/60 Hz for 3 phases motors-100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 208
✔ Coil Voltage Minimum: 208
✔ Frequency: 50/60 Hz
✔ UPC: 038911072672
✔ GTIN: 03389110726725
✔ Country of Origin: Czechia
✔ Dimensions: 4.33 in x 4.33 in
✔ Weight: 6
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
