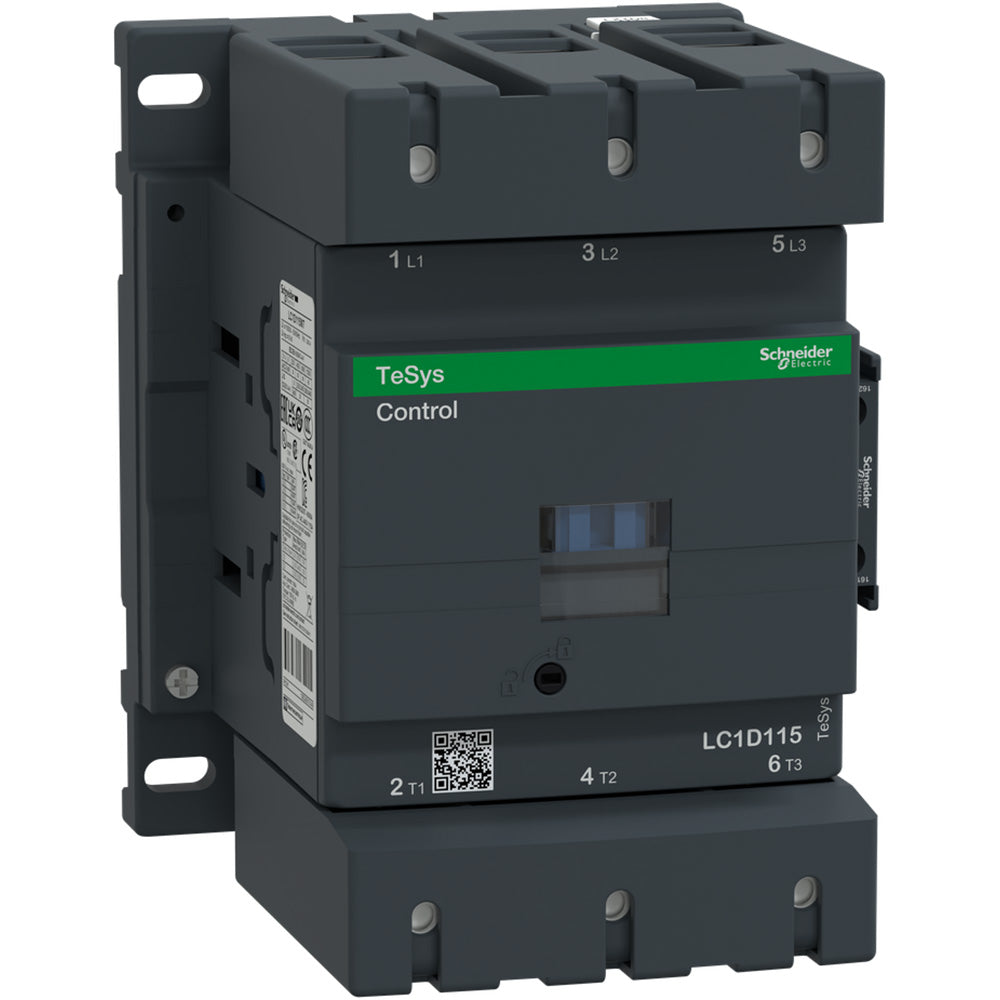

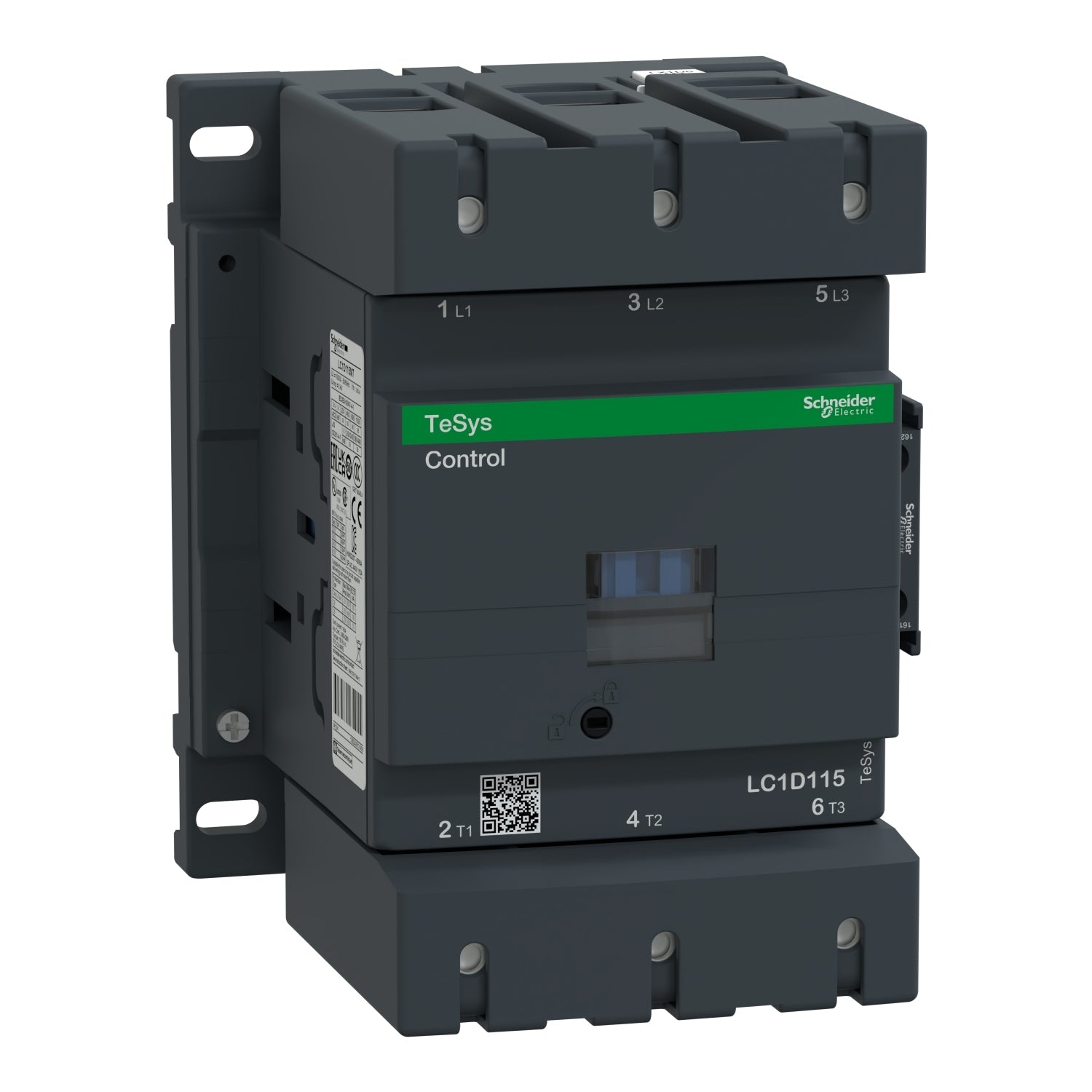

Schneider Electric LC1D115U7 Contactor 3P 600V 250A 240V Coil TeSys D

Product Description:
The Schneider Electric LC1D115U7 is a 3-pole contactor designed for motor control applications. It operates at 600V and 250A, supporting a range of horsepower ratings from 30 hp to 100 hp depending on the voltage. This unit comes complete with a 240V AC coil for reliable performance.

Key Features:
✔ Part Number: LC1D115U7
✔ Manufacturer: Schneider Electric/Telemecanique
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 250
✔ Poles: 3
✔ Horse Power: 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-40 hp at 230/240 V AC 50/60 Hz for 3 phases motors-75 hp at 460/480 V AC 50/60 Hz for 3 phases motors-100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 240
✔ Coil Voltage Minimum: 240
✔ Frequency: 50/60 Hz
✔ UPC: 038911037776
✔ GTIN: 03389110377767
✔ Country of Origin: Czechia
✔ Dimensions: 4.33 in x 4.33 in
✔ Weight: 2.27
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
