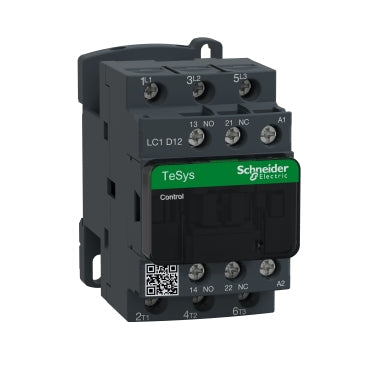

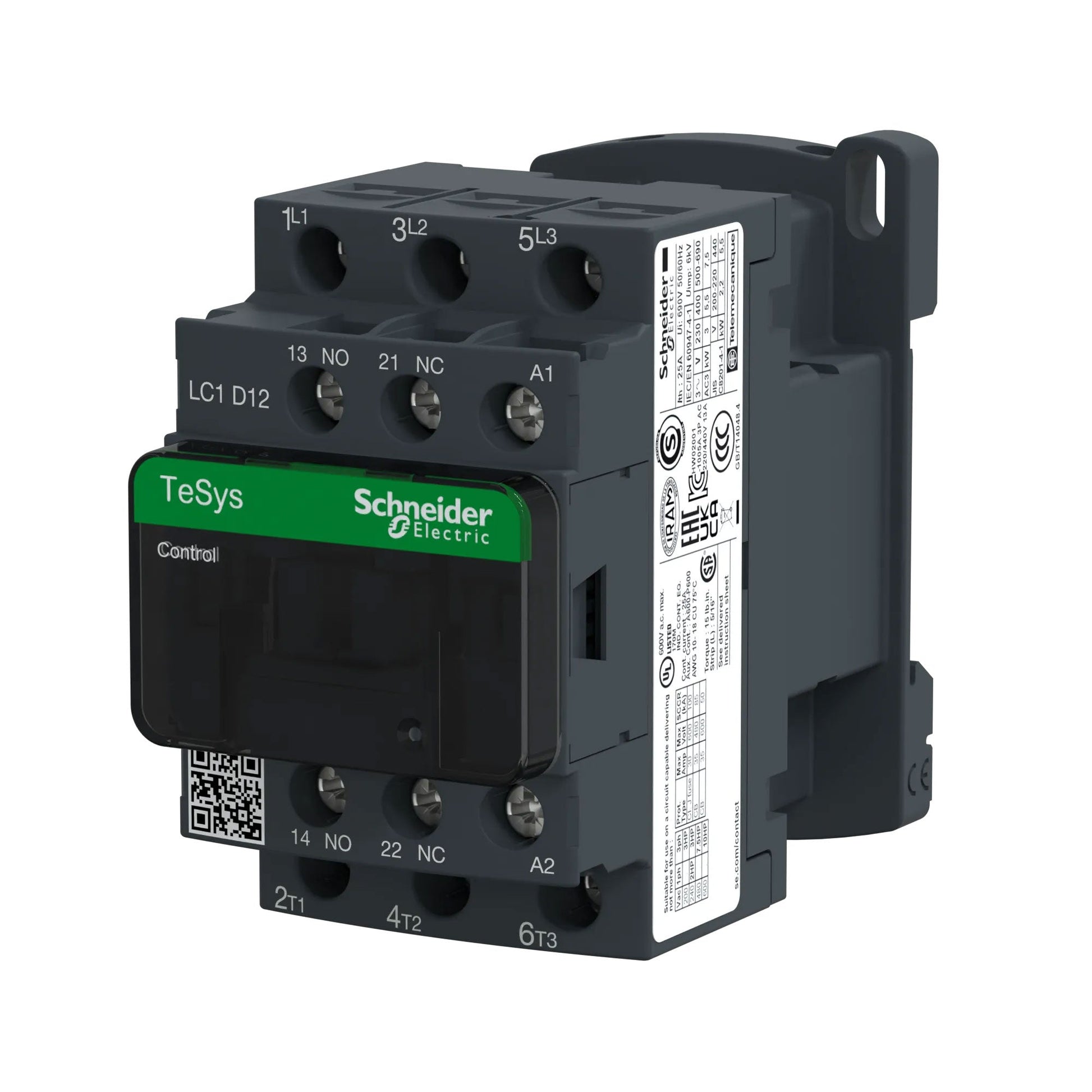

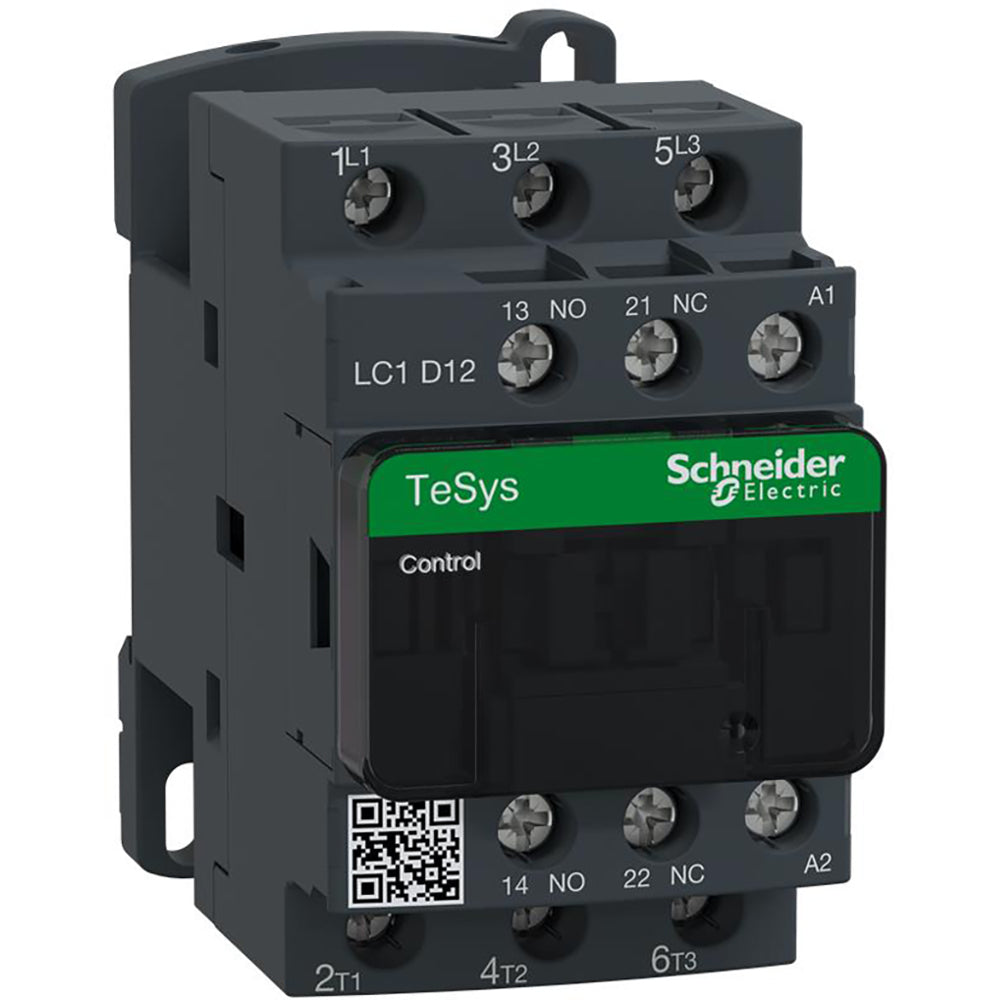

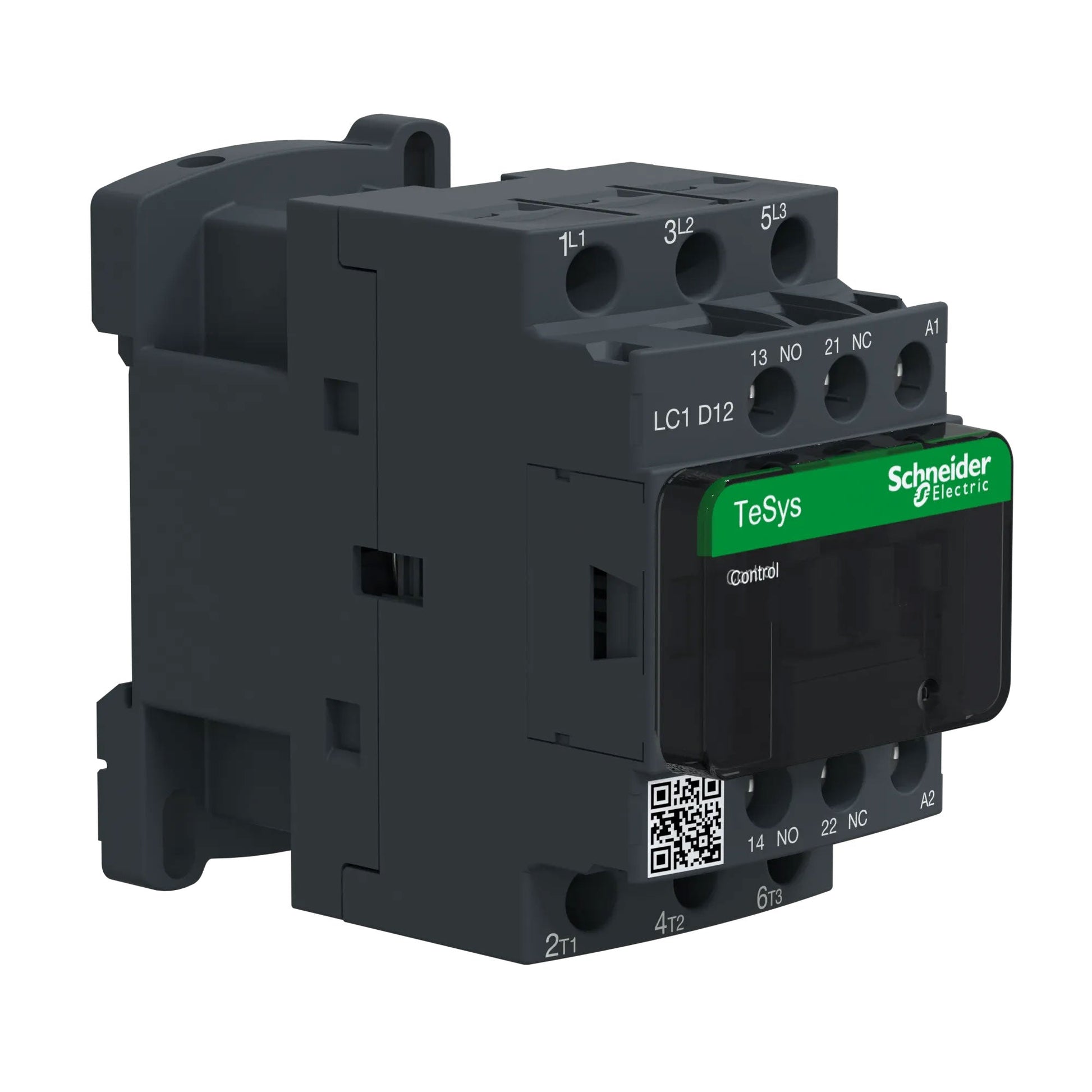

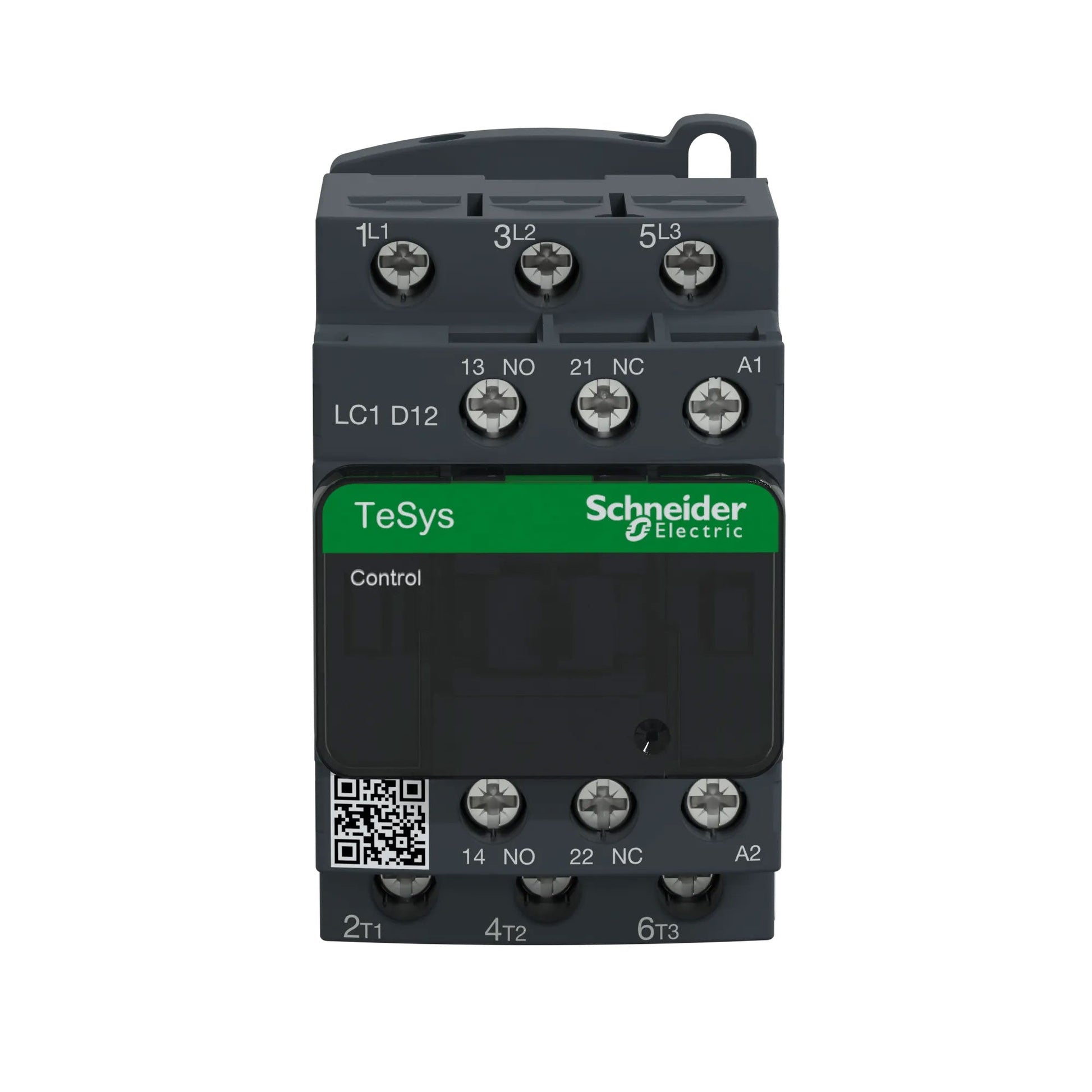

Schneider Electric LC1D12B7 Contactor | 3P 690V 12A 48V Coil TeSys D

Product Description:
The Schneider Electric LC1D12B7 is a 3-pole contactor designed for 3-phase motor control, rated for 690V and 12A. It supports a range of horsepower ratings across different voltages and phases, making it versatile for various motor applications. This TeSys D IEC Contactor is equipped with a 48V coil and includes 3 normally open auxiliary contacts. It is suitable for industrial control systems requiring reliable motor starting and stopping.

Key Features:
✔ Part Number: LC1D12B7
✔ Manufacturer: Schneider Electric
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 690
✔ Amperage: 12
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 48
✔ Full Load Amps: Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
✔ Coil Voltage Minimum: 48
✔ Frequency: 50/60 Hz
✔ UPC: 785901207016
✔ GTIN: 03389110349160
✔ Country of Origin: Indonesia

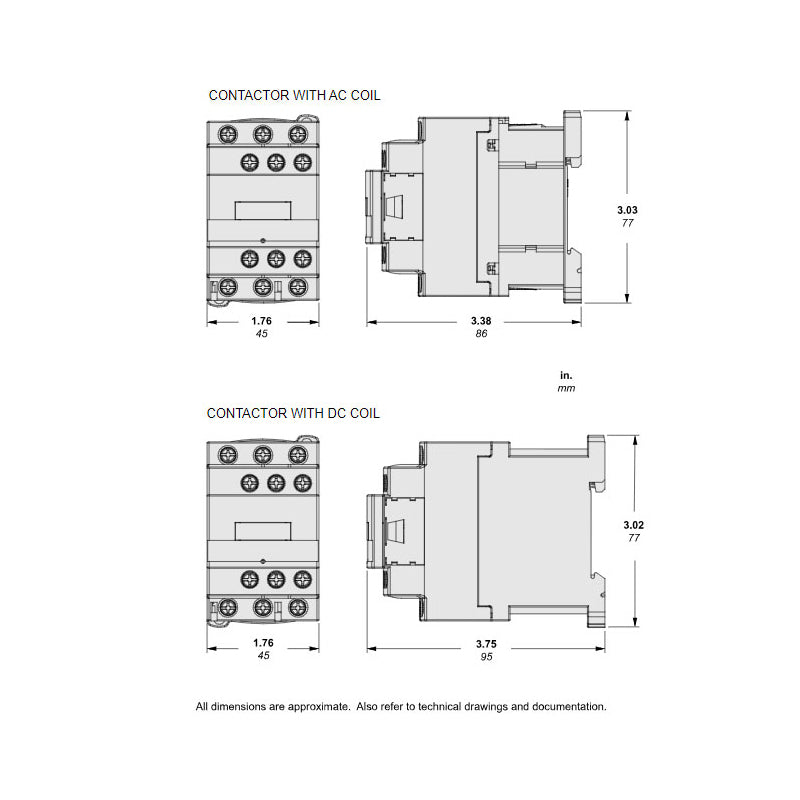

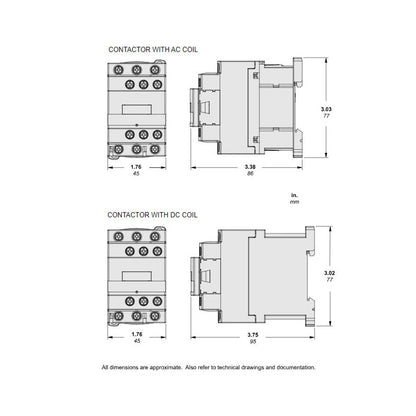

✔ Dimensions: 1.77 in x 3.03 in
✔ Weight: 0.79
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
