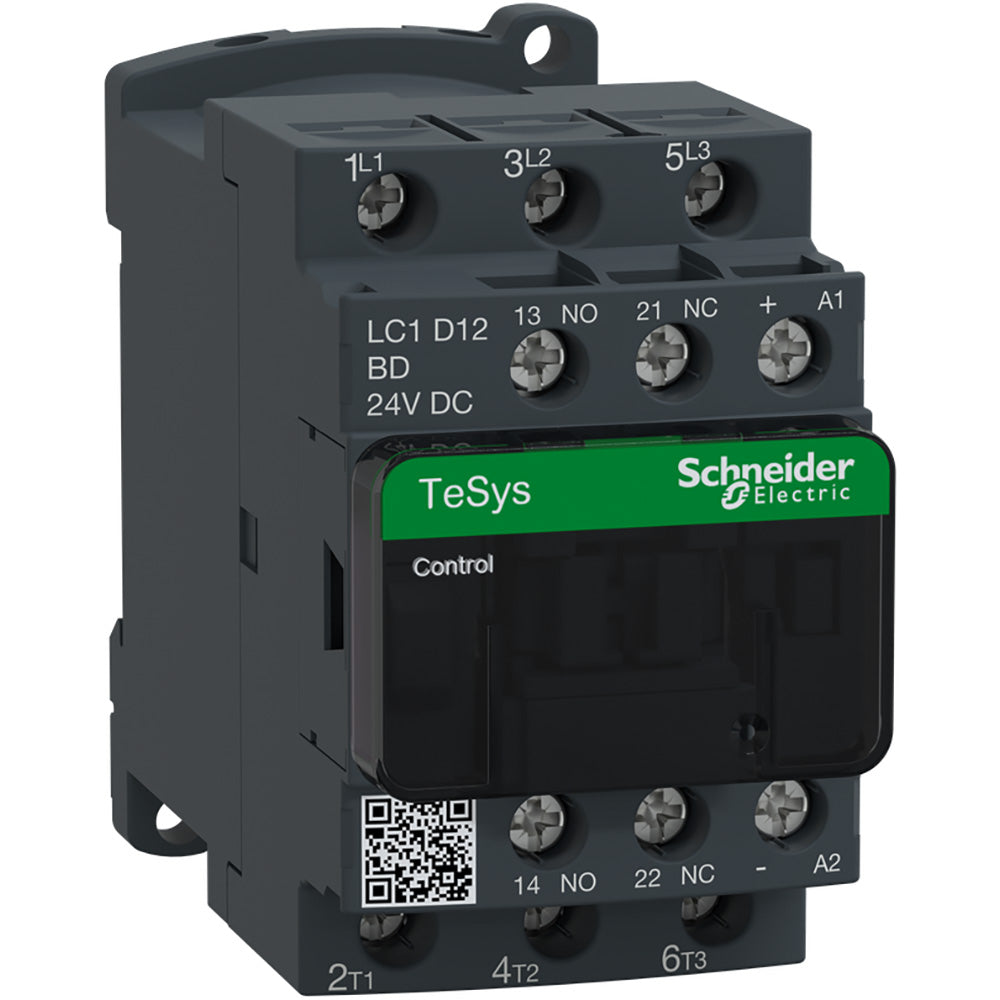

Square D LC1D12BD Contactor 3P 690V 12A 24V Coil TeSys D

Product Description:
The Square D LC1D12BD TeSys D Contactor is a 3-phase, 3-pole starter rated for 690V and 12A. It is designed for motor control applications with a 24V coil and supports various horsepower ratings across different voltages. This contactor includes 1 normally open and 1 normally closed auxiliary contact for flexible control wiring. It is suitable for a wide range of industrial and commercial motor starting needs.

Key Features:
✔ Part Number: LC1D12BD
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: TeSys D
✔ Type: LC1D
✔ Voltage: 690
✔ Amperage: 12
✔ Phase: 3
✔ Poles: 3
✔ Aux Contacts: 1NO/1NC
✔ Coil Voltage: 24
✔ Full Load Amps: Inductive 12A, Resistive 25A
✔ UPC: 038911035371
✔ GTIN: 03389110353716
✔ Country of Origin: Indonesia
✔ Dimensions: 1.77 in x 3.03 in
✔ Weight: 2
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
