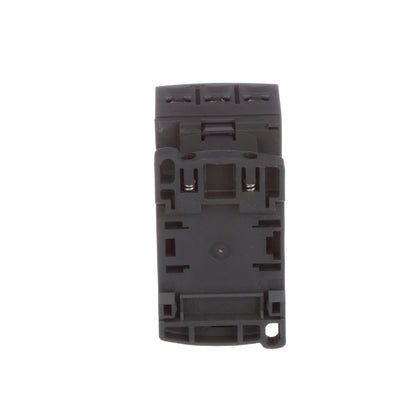

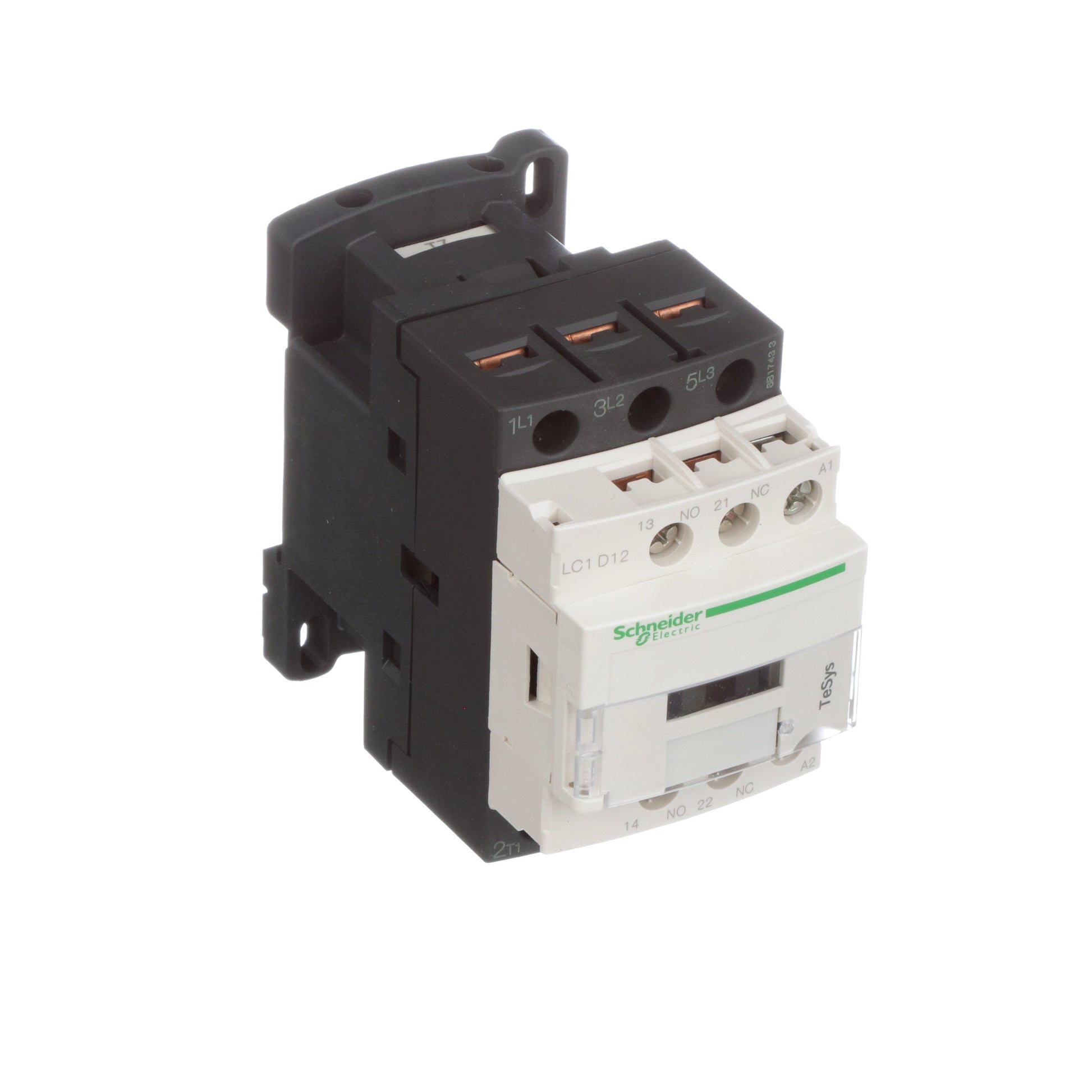

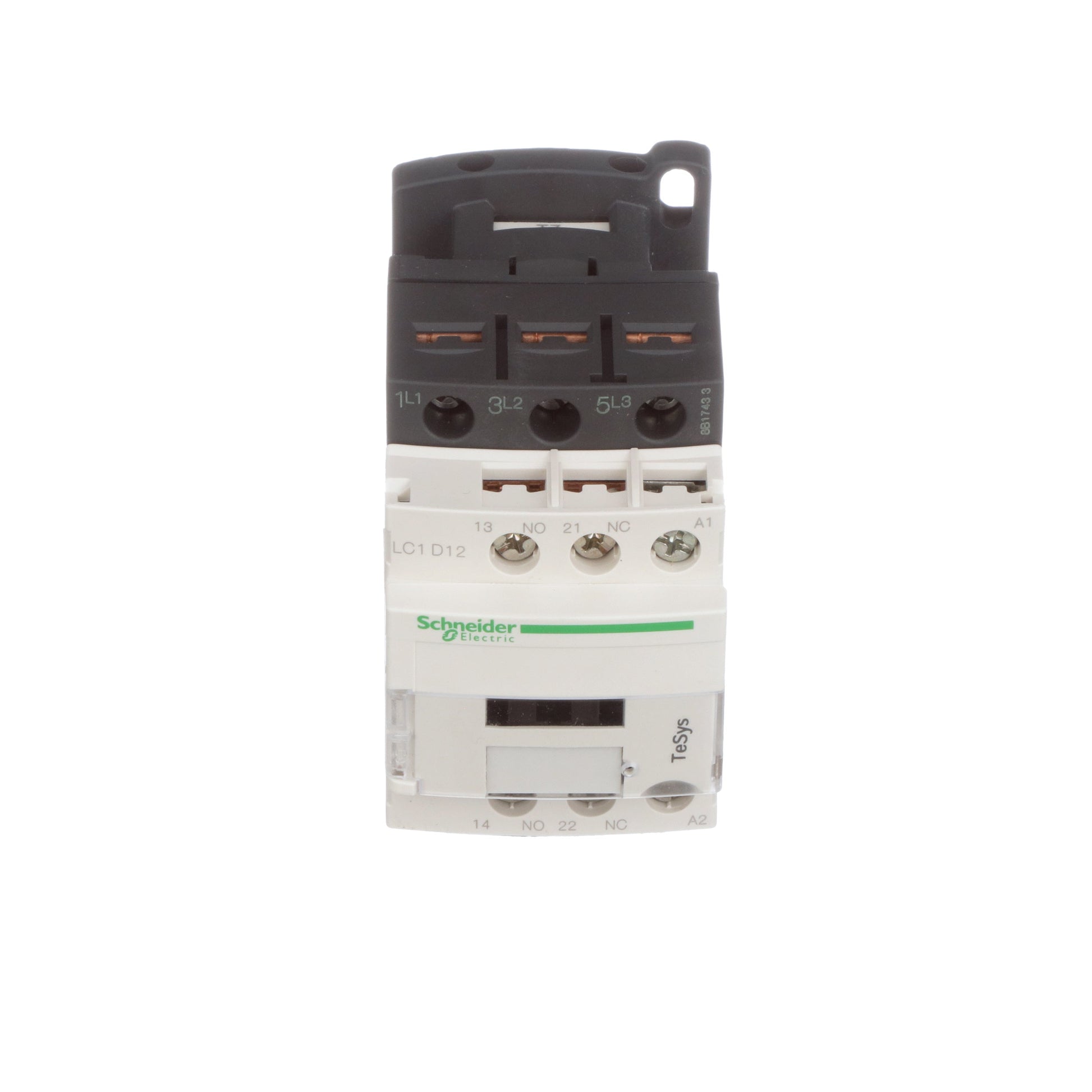

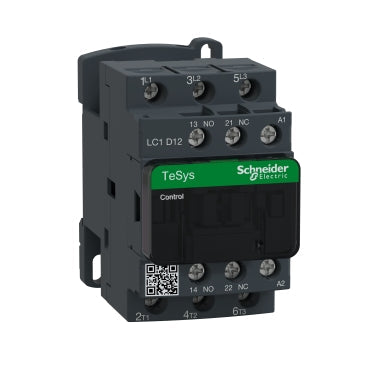

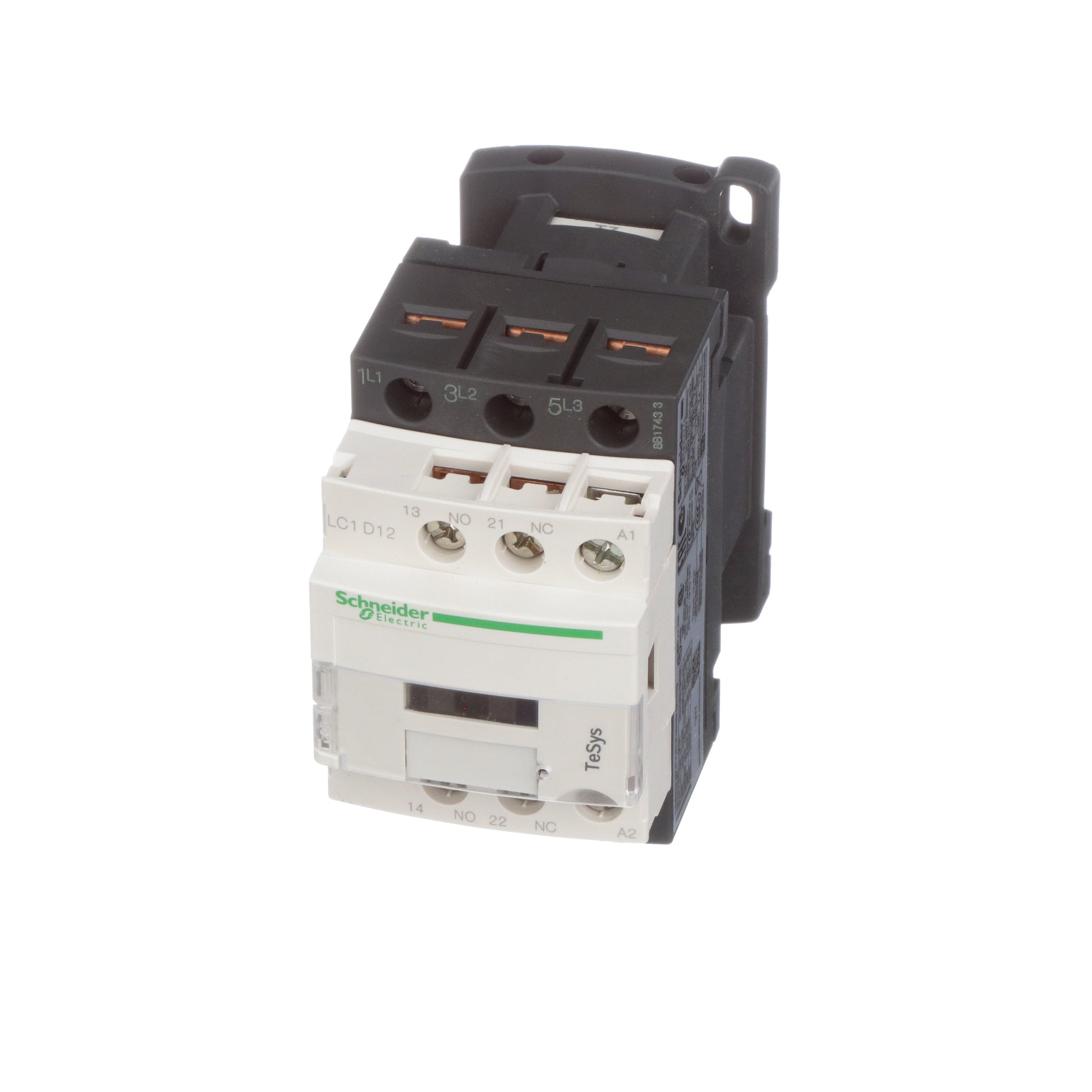

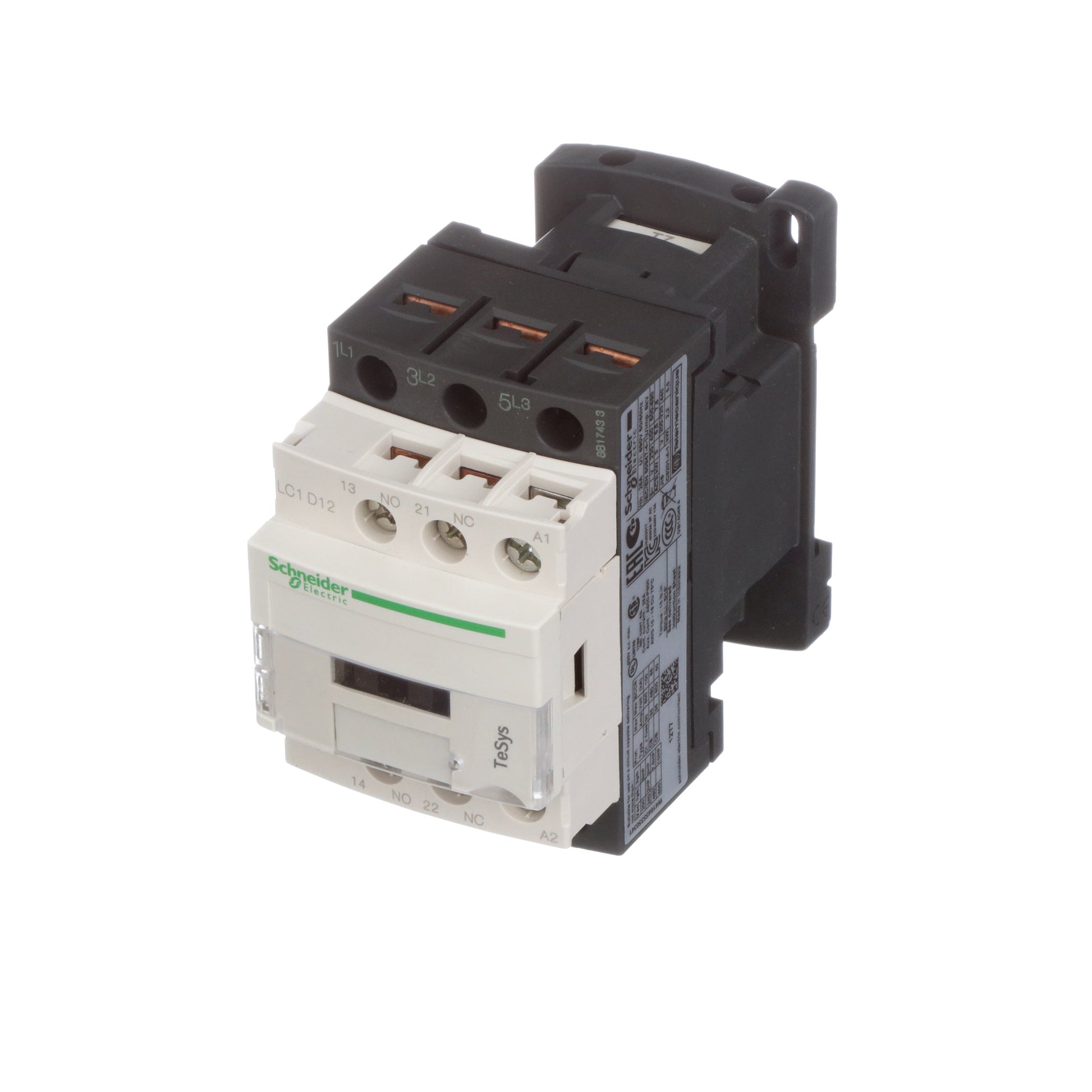

Square D LC1D12T7 Contactor 3P 690V 12A 480V Coil TeSys D

Product Description:
The Square D LC1D12T7 TeSys D Contactor is a 3-phase, 3-pole starter rated for 690V and 12A. It is designed for motor control applications with a 480V coil and supports various horsepower ratings across different voltage levels. This contactor is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: LC1D12T7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: TeSys D
✔ Type: LC1D
✔ Voltage: 690
✔ Amperage: 12
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 480
✔ Full Load Amps: Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
✔ Coil Voltage Minimum: 480
✔ Frequency: 50/60 Hz
✔ UPC: 785901207030
✔ GTIN: 03389110349238
✔ Country of Origin: Indonesia
✔ Dimensions: 1.77 in x 3.03 in
✔ Weight: 2
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
