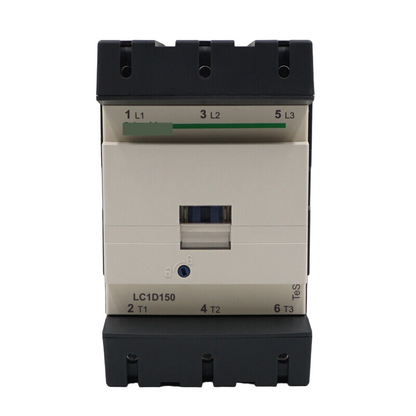

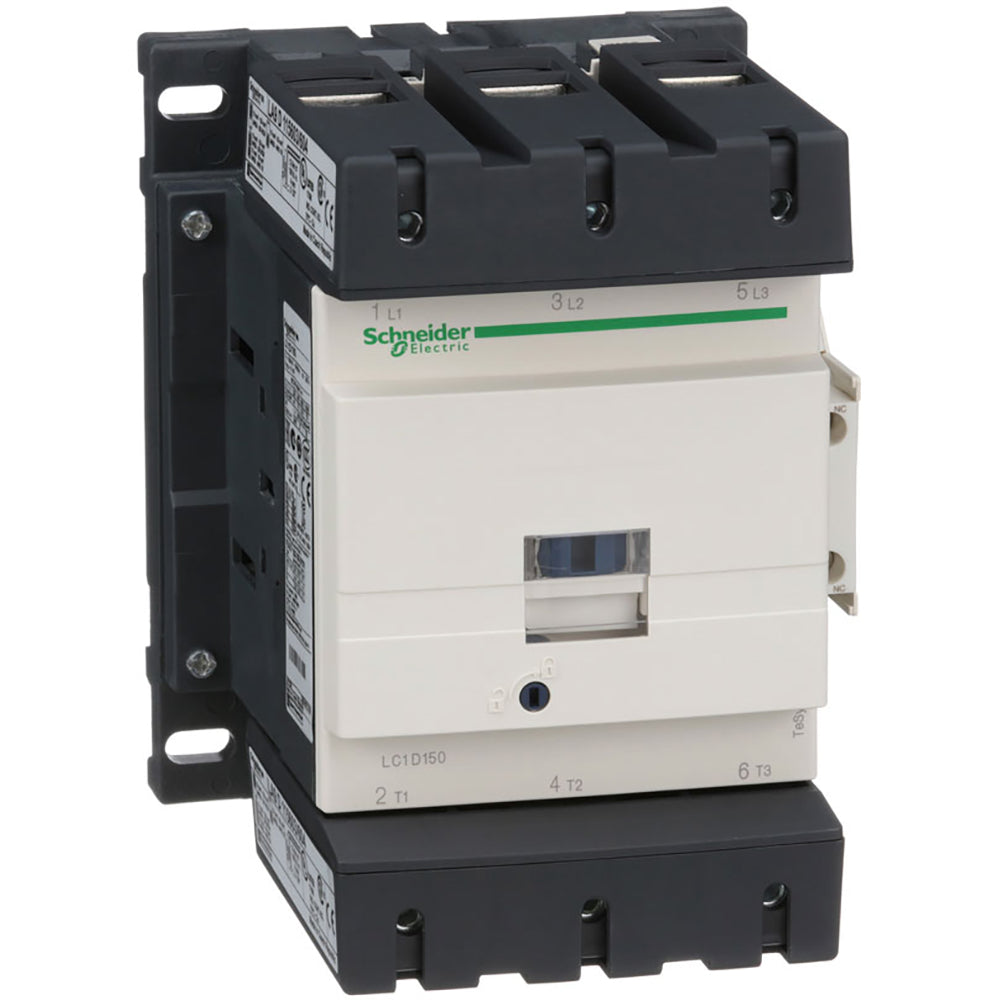

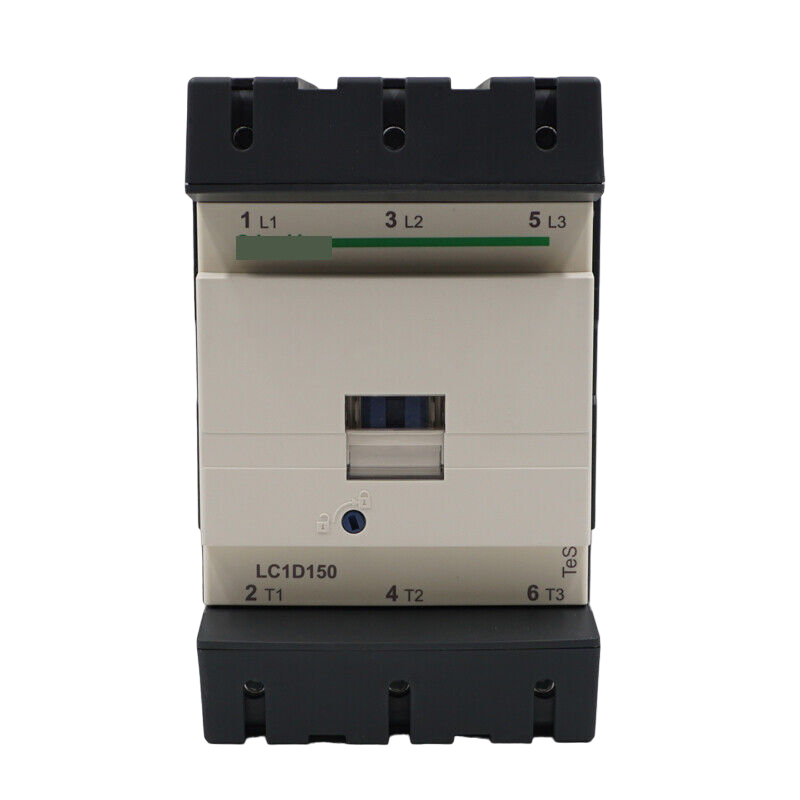

Square D LC1D150B7 Contactor | 3P 3P 600V 150A 24V Coil TeSys D

Product Description:
The Square D LC1D150B7 is a 3-phase contactor designed for heavy-duty motor control applications. It operates at 600V and 150A, supporting motors up to 125 hp at higher voltages. This 3-pole starter is equipped with a 24V coil and includes three normally open auxiliary contacts. It is suitable for use in industrial environments with 50/60 Hz power systems.

Key Features:
✔ Part Number: LC1D150B7
✔ Manufacturer: Telemecanique, Square D, Schneider Electric
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 40 hp at 200/208 V AC 50/60 Hz for 3 phases motors-50 hp at 230/240 V AC 50/60 Hz for 3 phases motors-100 hp at 460/480 V AC 50/60 Hz for 3 phases motors-125 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Full Load Amps: Full Load Amps-Inductive 150A Full Load Amps-Resistive 200A
✔ Coil Voltage Minimum: 24
✔ Mounting: Rail, Plate
✔ Frequency: 50/60 Hz
✔ UPC: 038911047599
✔ GTIN: 03389110475999
✔ Country of Origin: Czechia
✔ Dimensions: 4.33 in x 4.33 in
✔ Weight: 0.75
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
