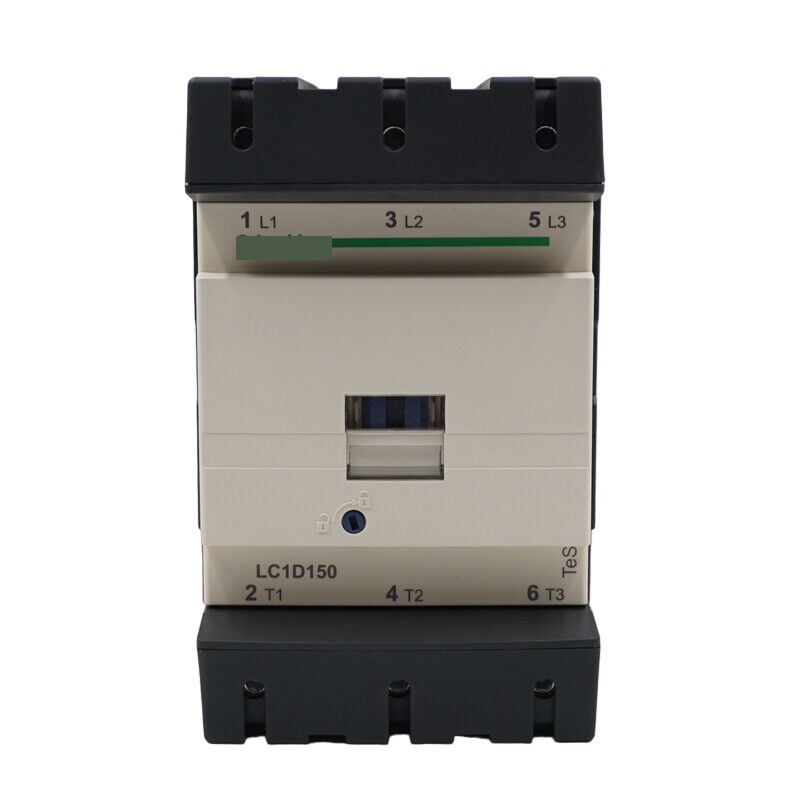

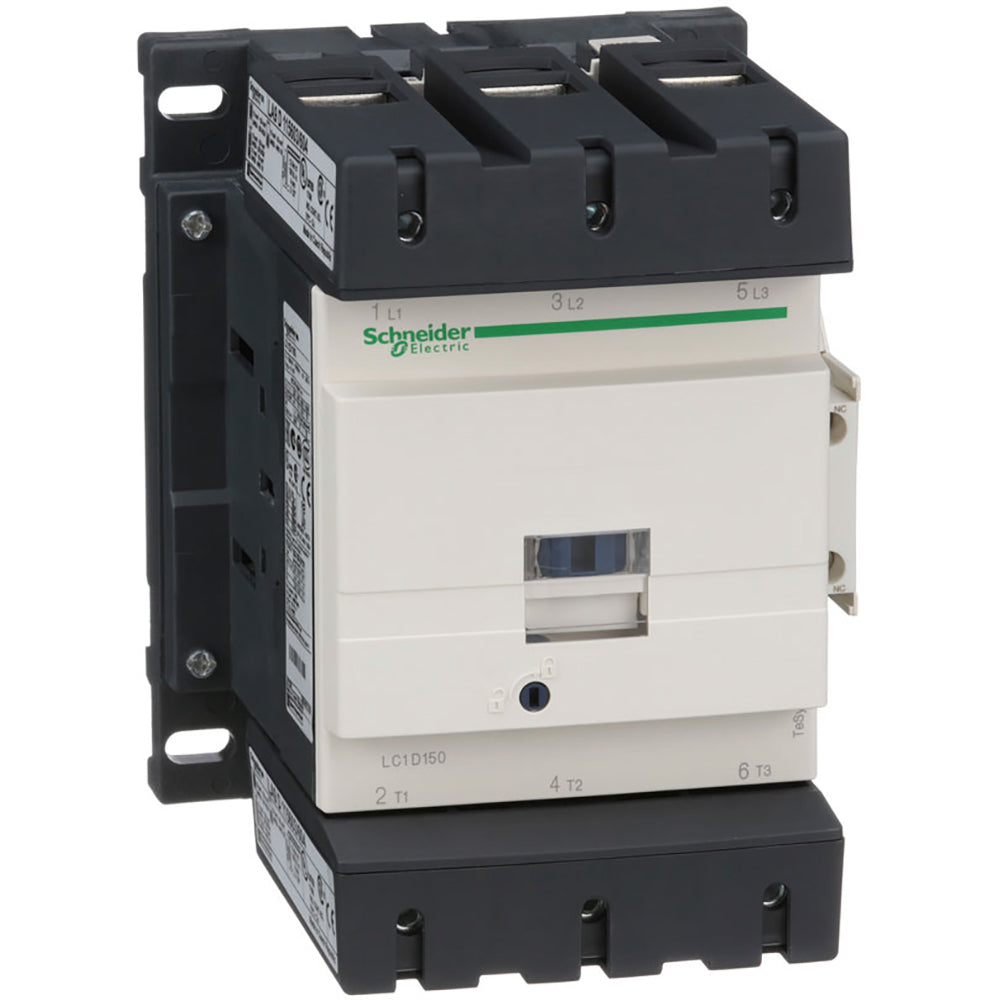

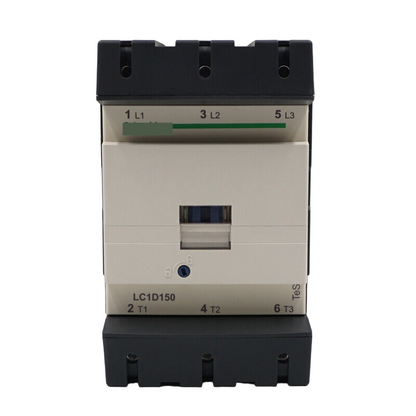

Square D LC1D150T7 Contactor 3P 600V 150A 3 Phase TeSys D

Product Description:
The Square D LC1D150T7 is a 600V 3-phase 150A 3-pole contactor starter designed for industrial motor control. It supports a range of horsepower ratings from 40 hp at 200/208V up to 125 hp at 575/600V AC. This TeSys D IEC contactor includes a 480 VAC coil and is suitable for 50/60 Hz three-phase motor applications.

Key Features:
✔ Part Number: LC1D150T7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 40 hp at 200/208 V AC 50/60 Hz for 3 phases motors-50 hp at 230/240 V AC 50/60 Hz for 3 phases motors-100 hp at 460/480 V AC 50/60 Hz for 3 phases motors-125 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Full Load Amps: Full Load Amps-Inductive 150A Full Load Amps-Resistive 200A
✔ Mounting: Rail, Plate
✔ Frequency: 50/60 Hz
✔ UPC: 038911047928
✔ GTIN: 03389110479287
✔ Country of Origin: Czechia
✔ Dimensions: 4.33 in x 4.33 in
✔ Weight: 2.44
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
