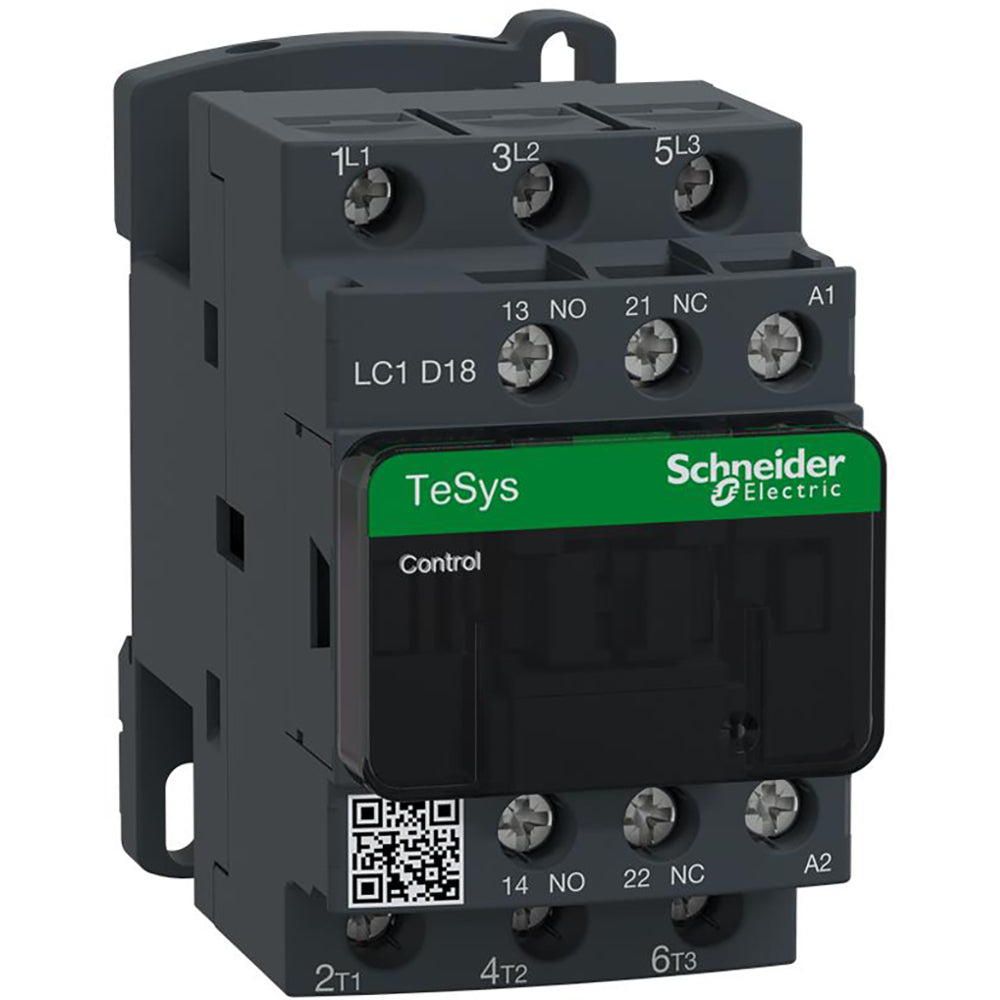

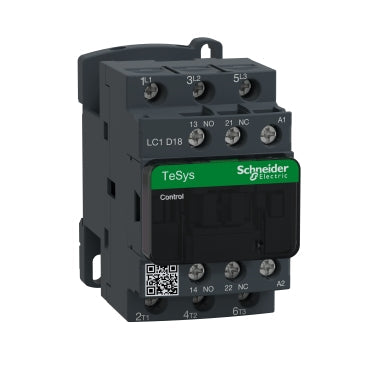

Square D LC1D18M7 Contactor 3P 600V 32A 220V Coil TeSys D

Product Description:
The Square D LC1D18M7 is a 3-pole contactor designed for 3-phase motor control applications. It operates at 600V and 32A, with horsepower ratings up to 15 hp depending on voltage and phase. This unit includes a 220VAC coil and is suitable for a wide range of industrial uses.

Key Features:
✔ Part Number: LC1D18M7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 32
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Full Load Amps: Full Load Amps-Inductive 18A Full Load Amps-Resistive 32A
✔ Coil Voltage Minimum: 220
✔ Mounting: Plate,Rail
✔ Frequency: 50/60 Hz
✔ UPC: 785901213284
✔ GTIN: 03389110349504
✔ Country of Origin: Indonesia
✔ Dimensions: 1.77 in x 3.03 in
✔ Weight: 1
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
