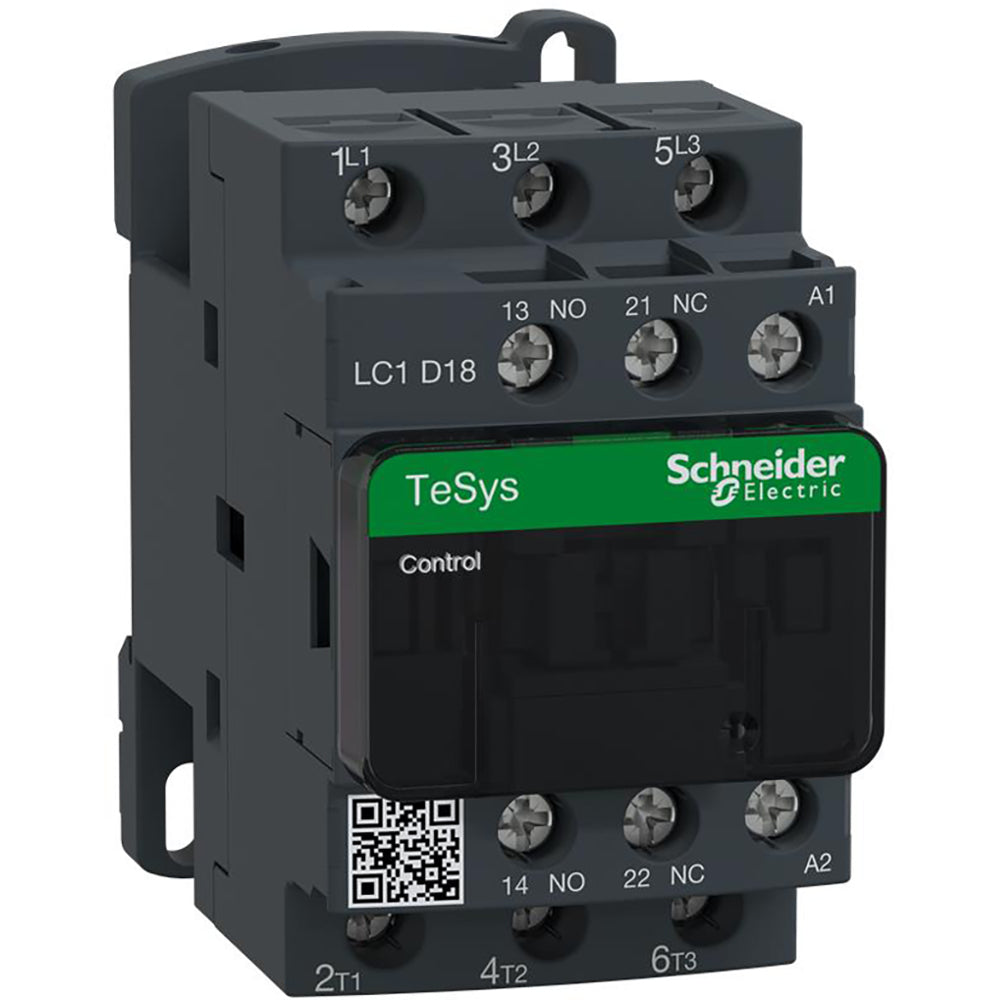

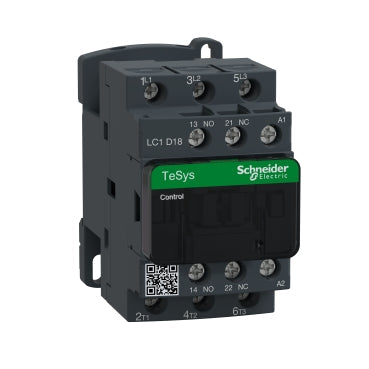

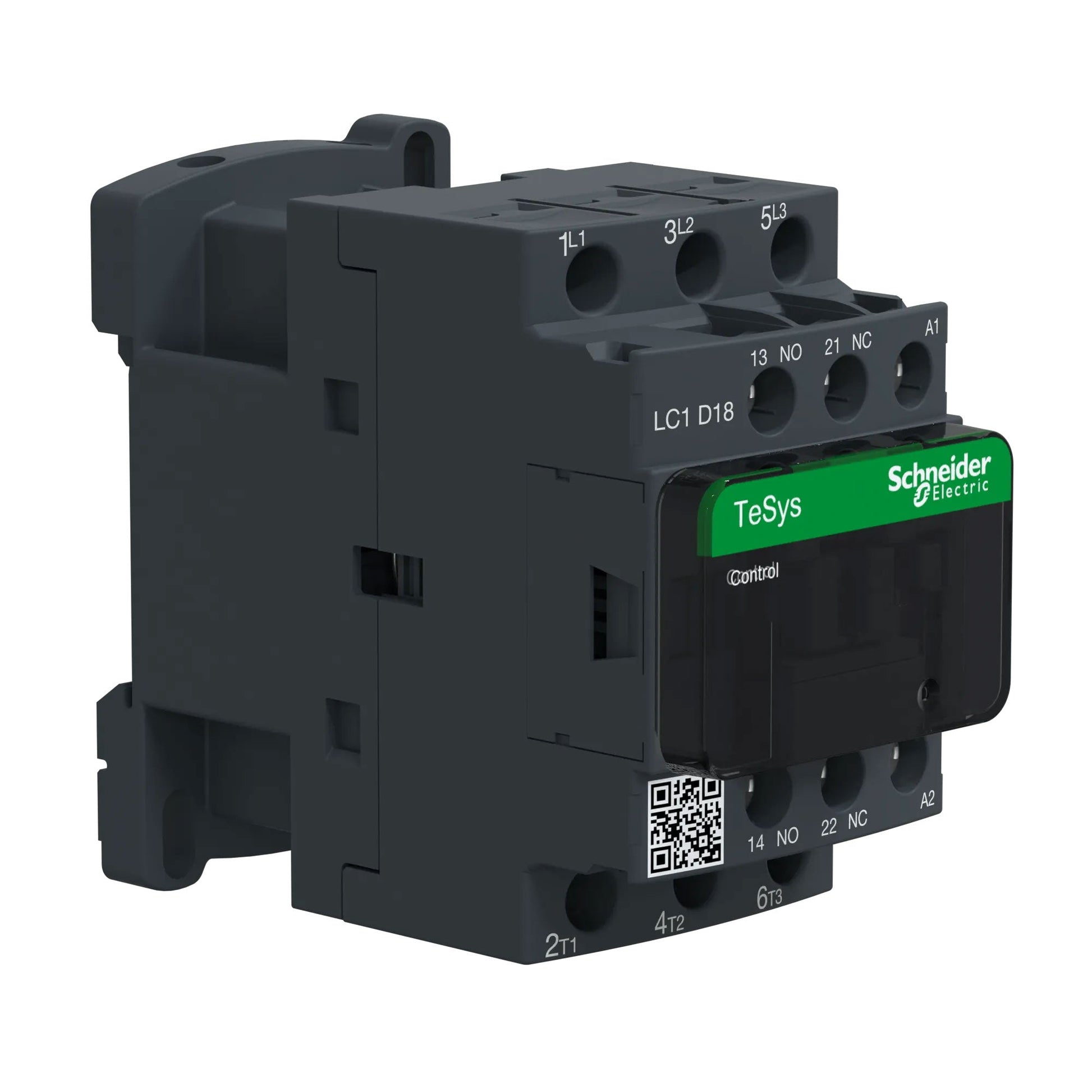

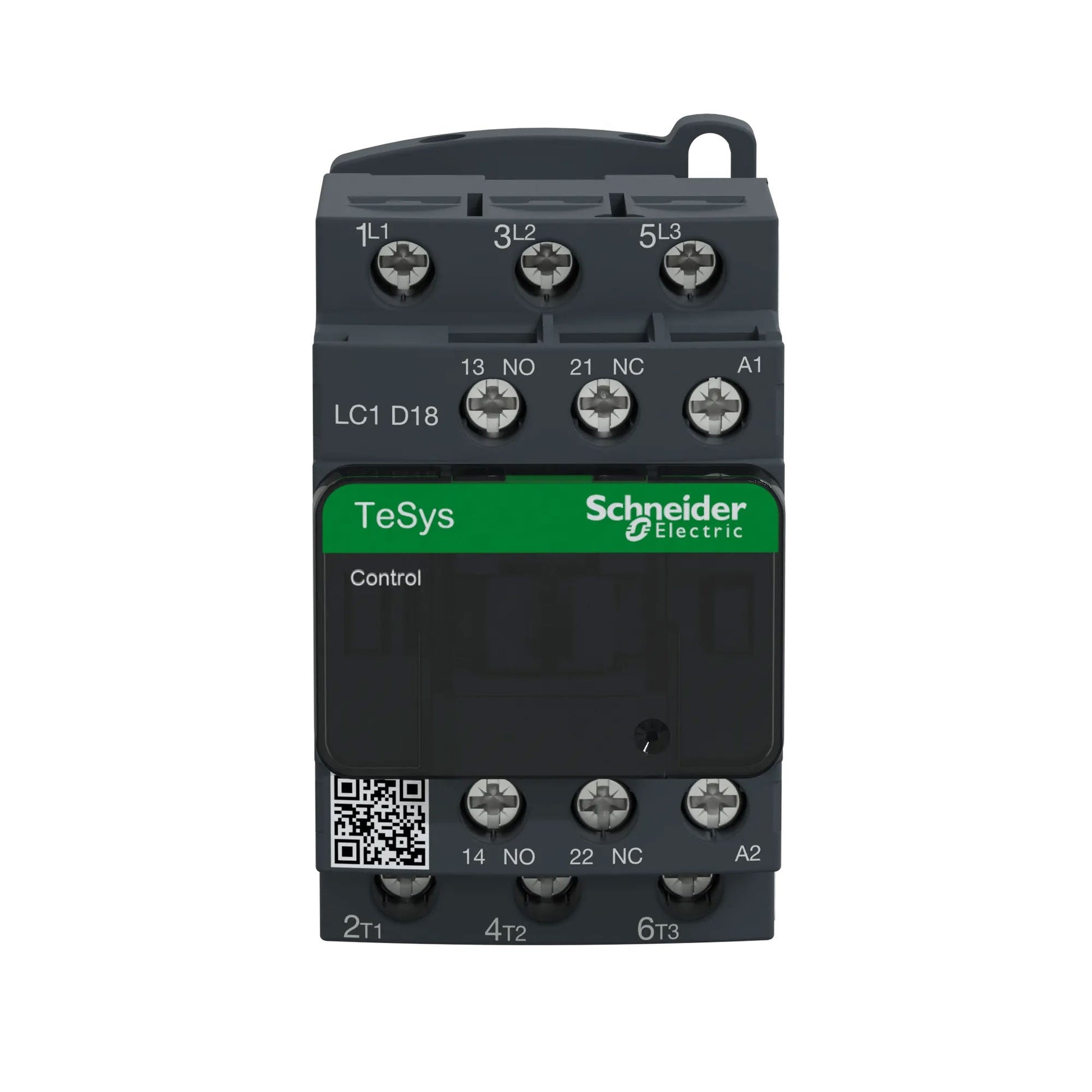

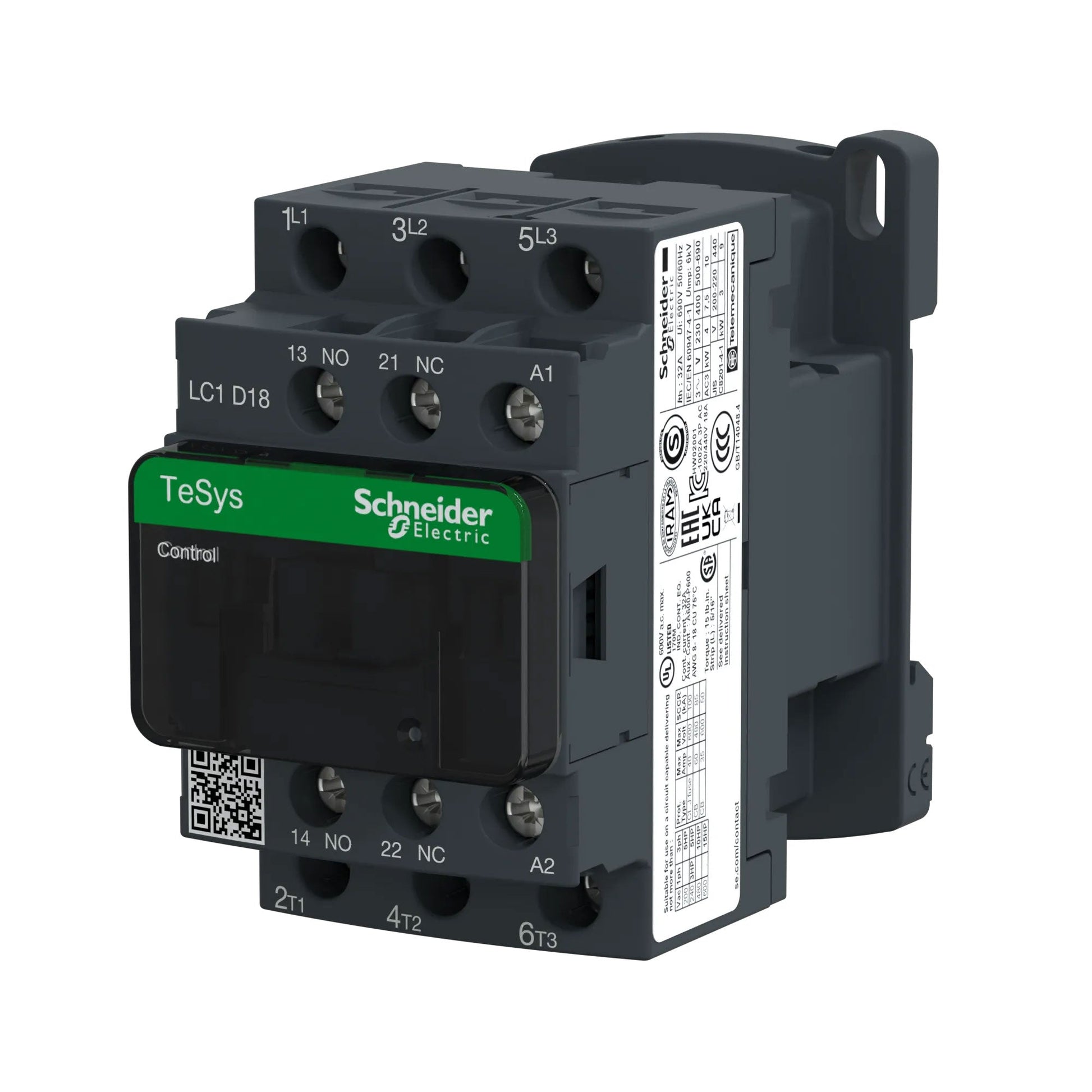

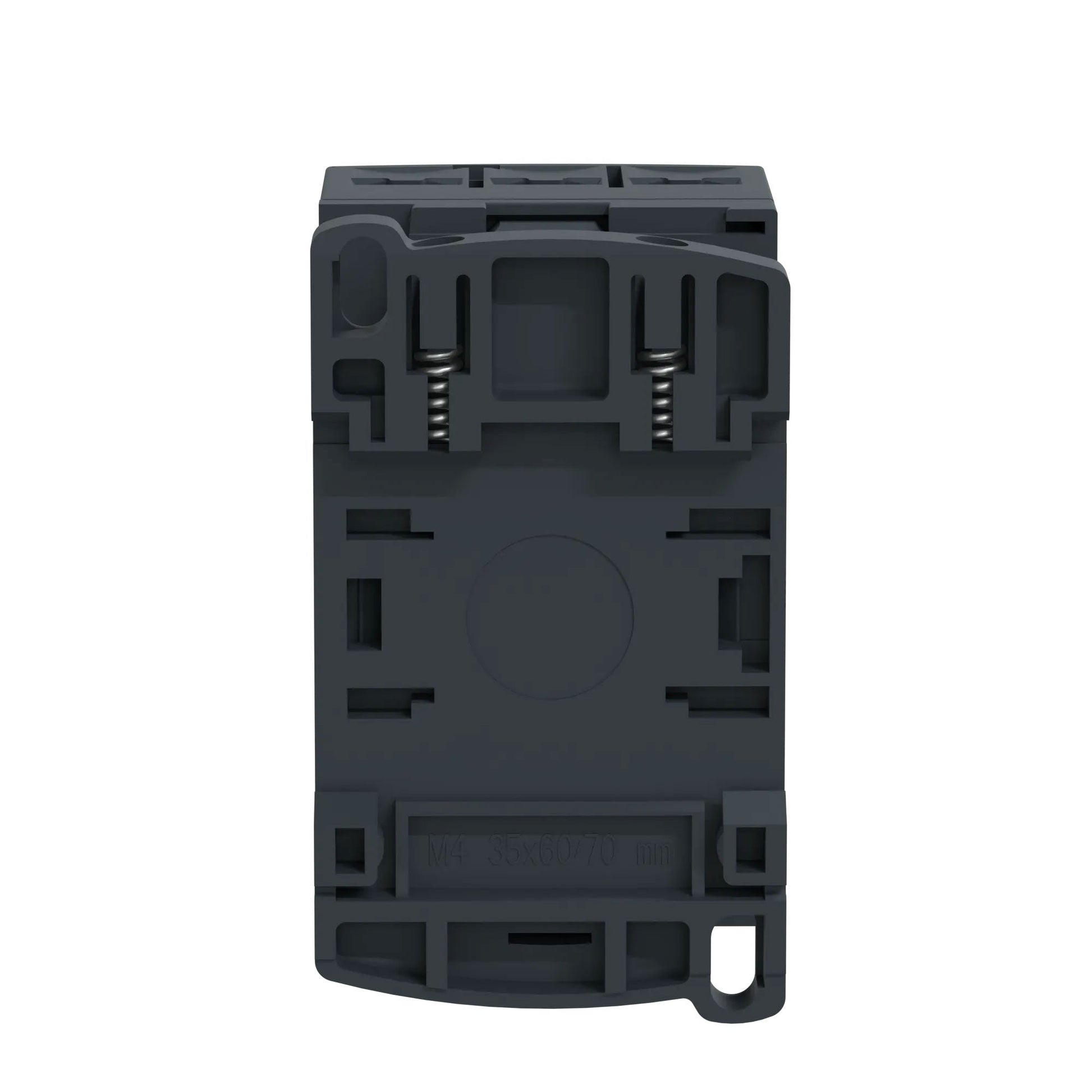

Square D LC1D18U7 Contactor 3P 3P 690V 18A 240V Coil TeSys D

Product Description:
The Square D LC1D18U7 is a 3-pole contactor designed for 3-phase motor control up to 690V and 18A.
It supports a range of horsepower ratings for both single-phase and three-phase motors across various voltages.
This TeSys D IEC Contactor comes equipped with a 240V AC coil and includes three normally open auxiliary contacts.

Key Features:
✔ Part Number: LC1D18U7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 690
✔ Amperage: 18
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 240
✔ Full Load Amps: Full Load Amps-Inductive 18A Full Load Amps-Resistive 32A
✔ Coil Voltage Minimum: 240
✔ Frequency: 50/60 Hz
✔ UPC: 078590120711
✔ GTIN: 03389110349597
✔ Country of Origin: Czechia

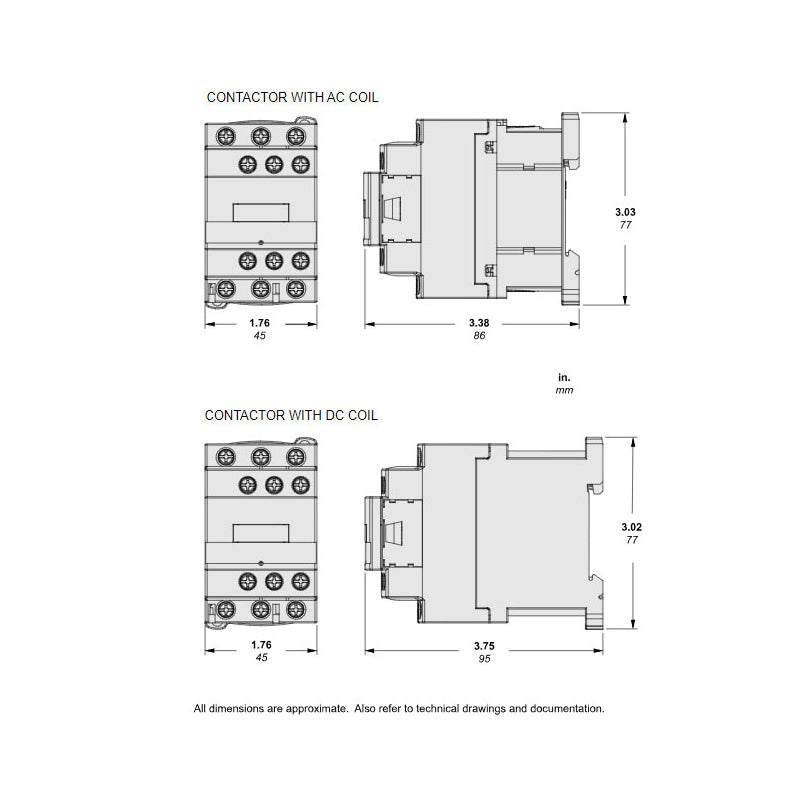

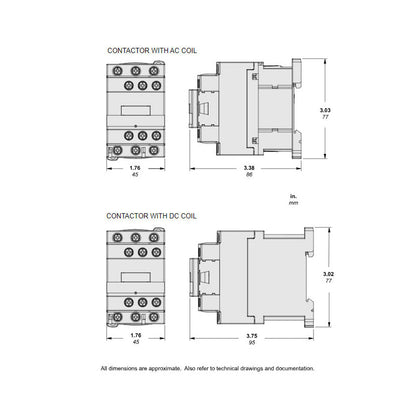

✔ Dimensions: 1.77 in (45 mm) x 3.03 in (77 mm)
✔ Weight: 0.8
✔ Certification: CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1; IEC 60947-5-1; UL 508; IEC 60335-1
