Product Description:

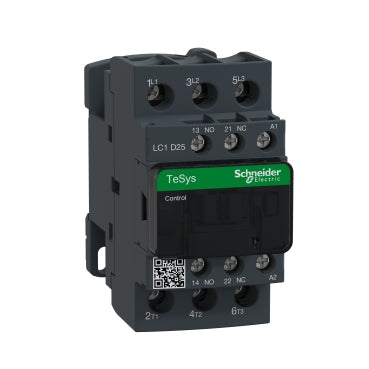

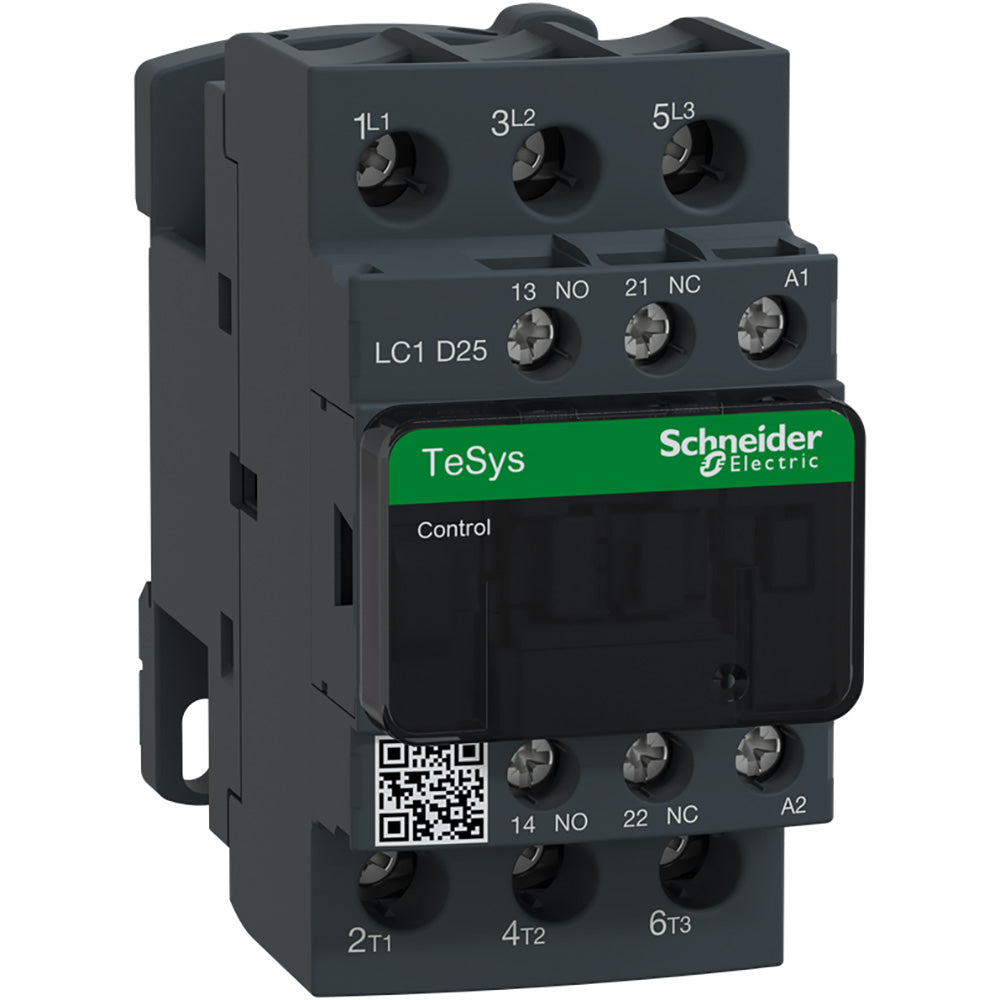

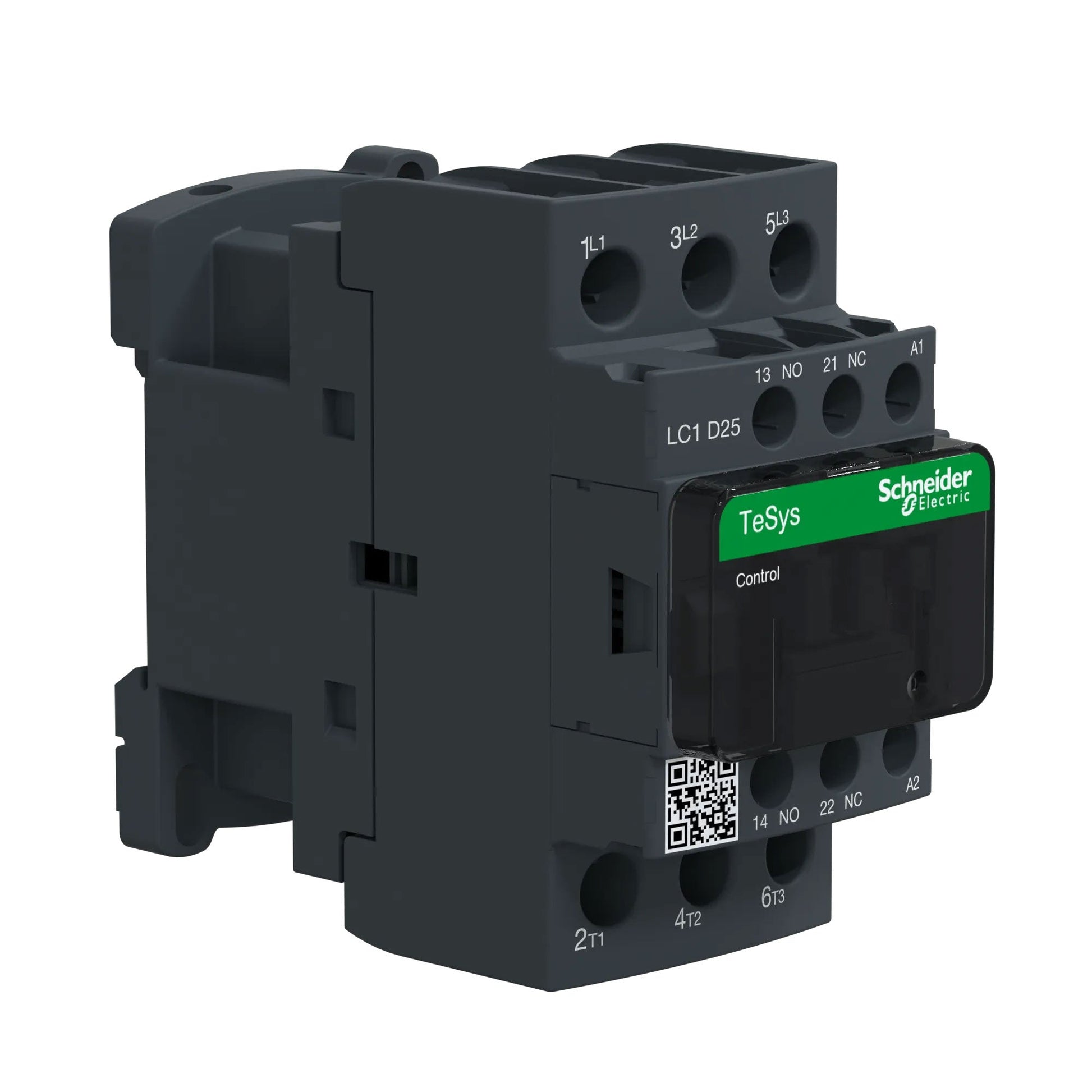

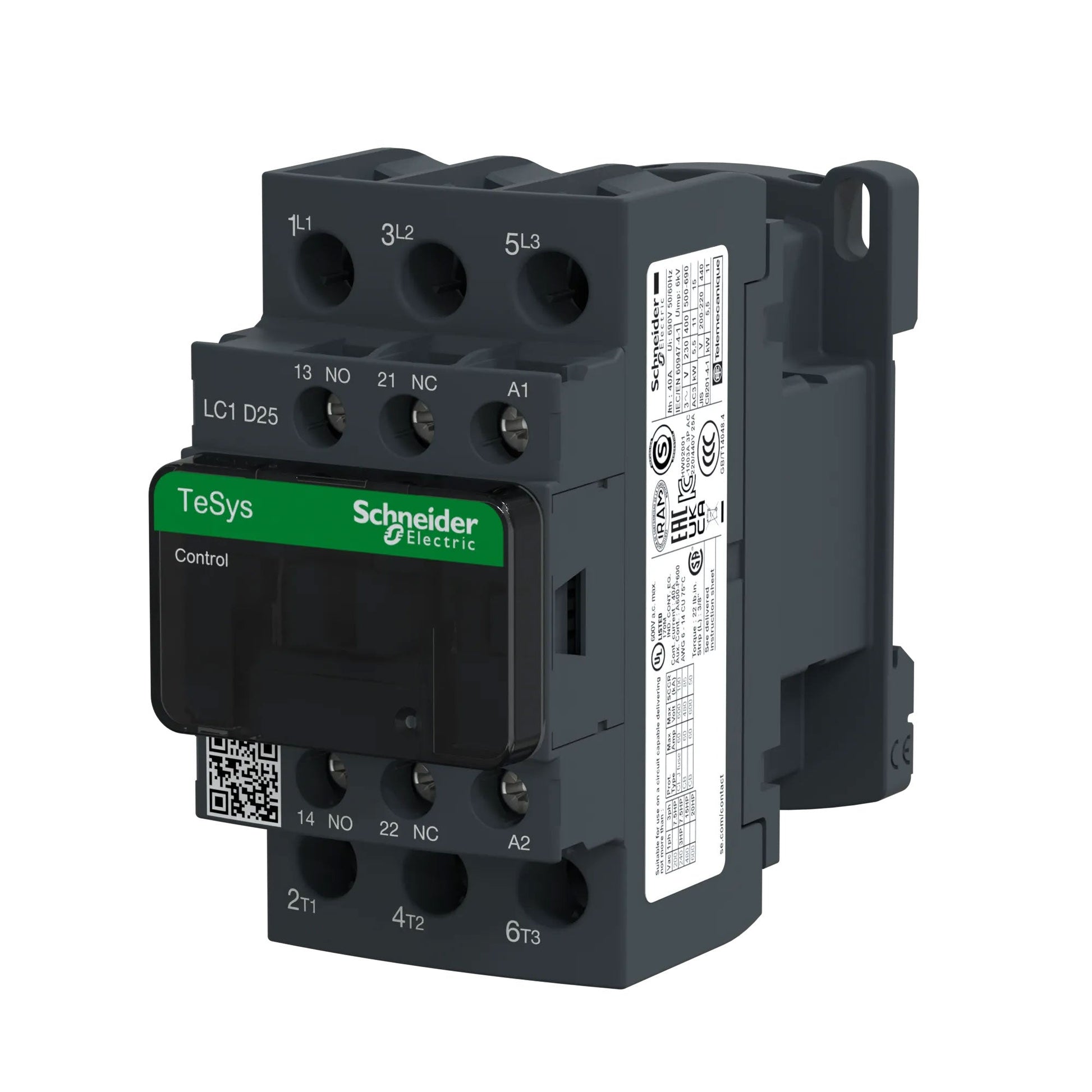

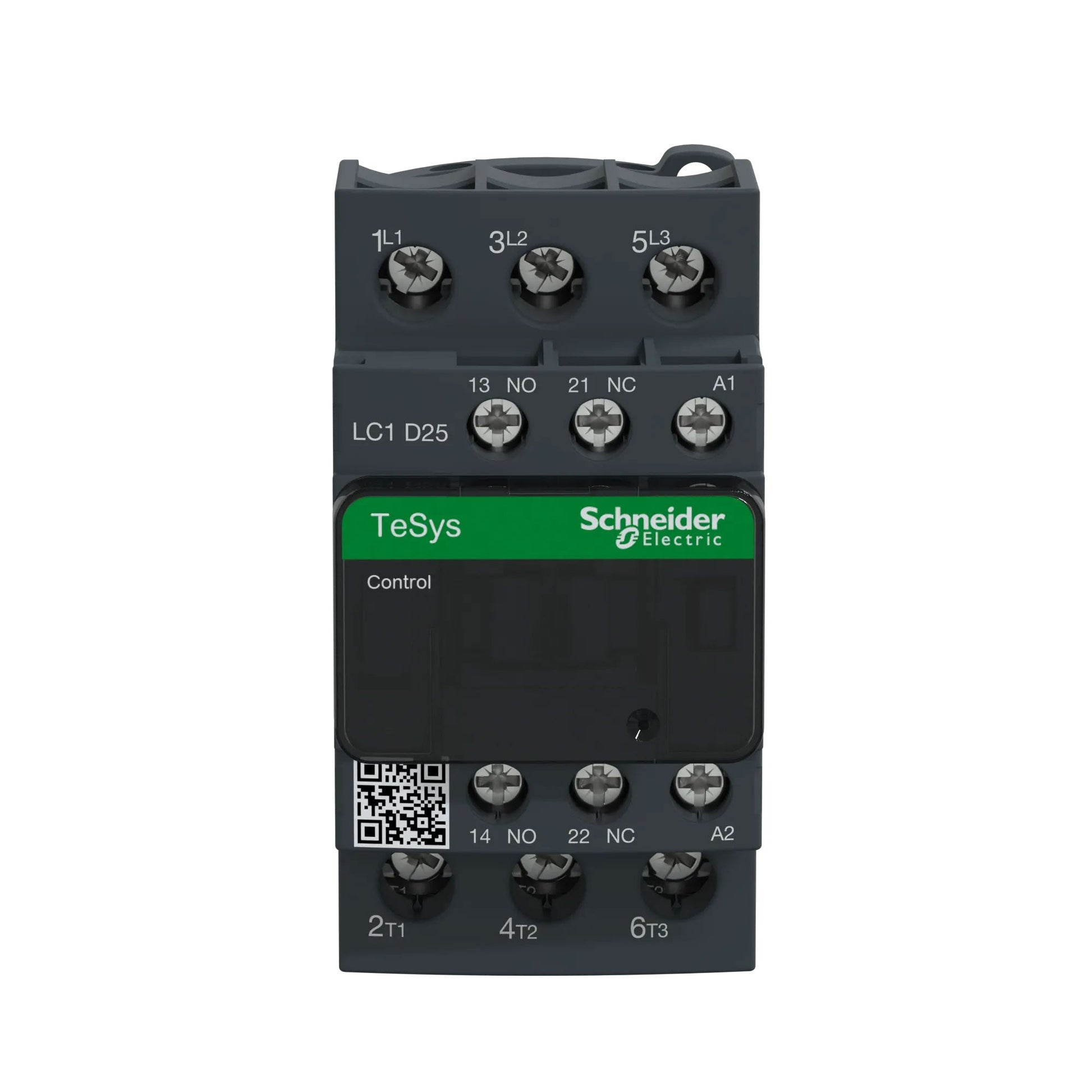

The Schneider Electric LC1D25G7 TeSys D Contactor is a 600V 3-phase 40A 3-pole starter designed for motor control applications. It supports various horsepower ratings, including 3 hp at 230/240V AC for single-phase motors and up to 20 hp at 575/600V AC for three-phase motors. This model includes a 110V coil and is built for reliable performance in industrial settings.
Key Features:
✔ Part Number: LC1D25G7
✔ Manufacturer: Schneider Electric
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: TeSys D
✔ Type: LC1D
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 3 hp at 230/240V AC (1-phase), 20 hp at 575/600V AC (3-phase)
✔ Aux Contacts: 1NO/1NC
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: 25A (Inductive), 40A (Resistive)
✔ Coil Voltage Minimum: 110

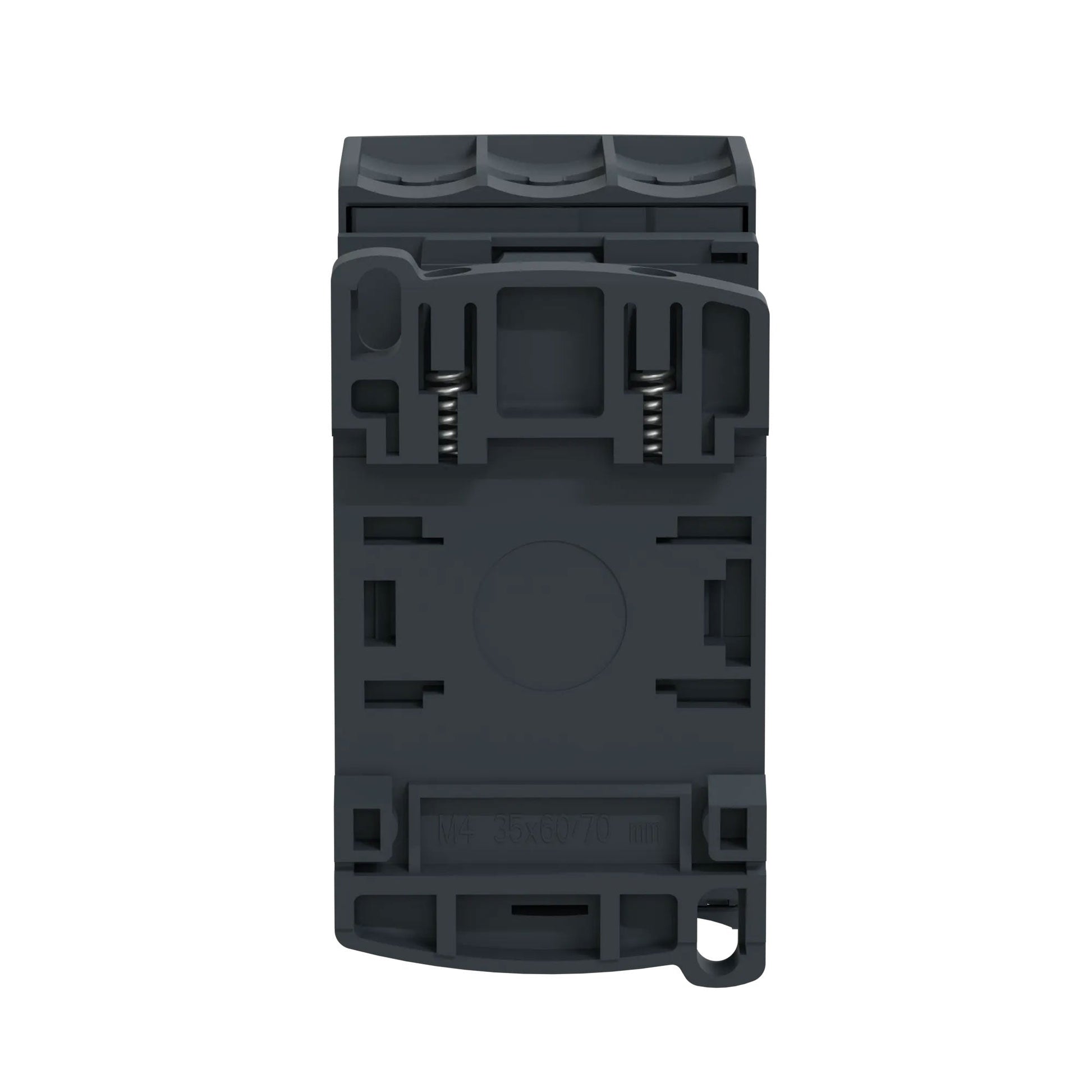

✔ Mounting: Rail/Plate
✔ UPC: 785901207153
✔ GTIN: 03389110349733
✔ Country of Origin: France
✔ Dimensions: 1.77 in (45 mm) x 3.35 in (85 mm)
✔ Weight: 1 lb
✔ Certification: CSA C22.2 No 14, EN 60947-4-1, UL 508, IEC 60335-1
