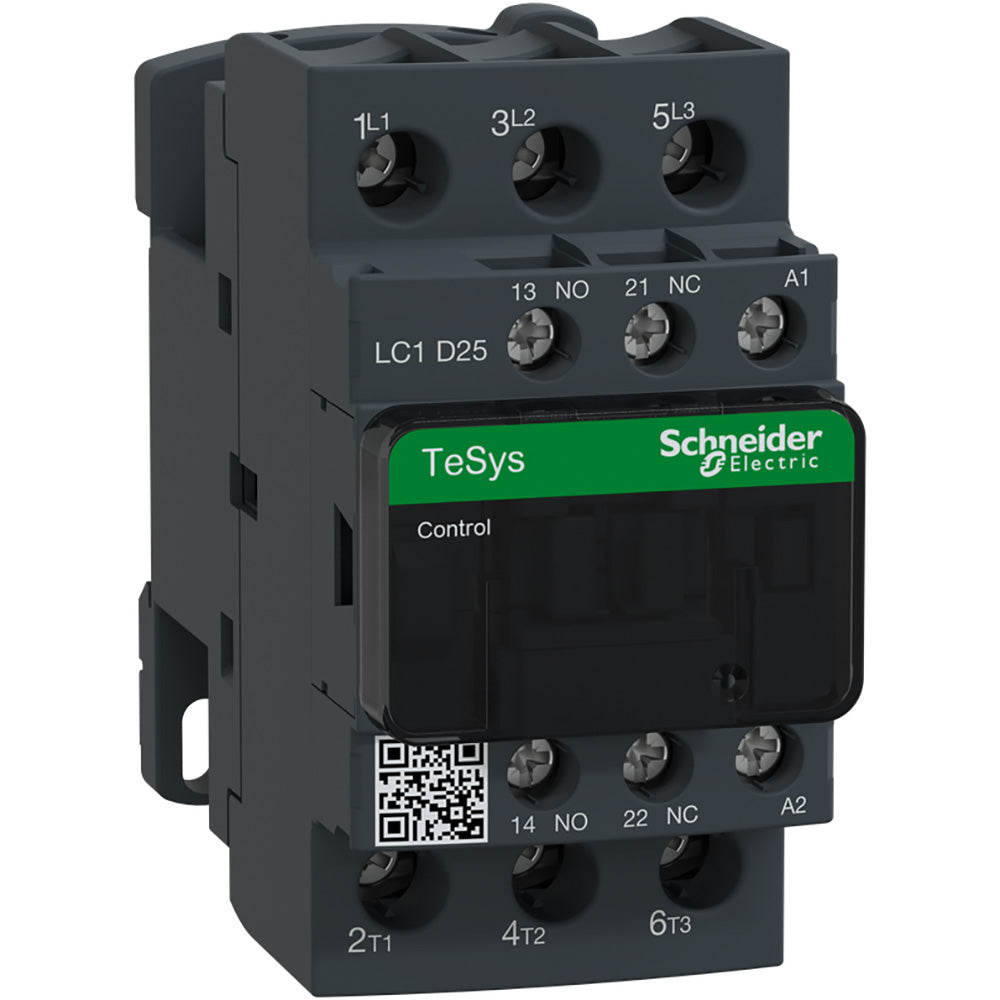

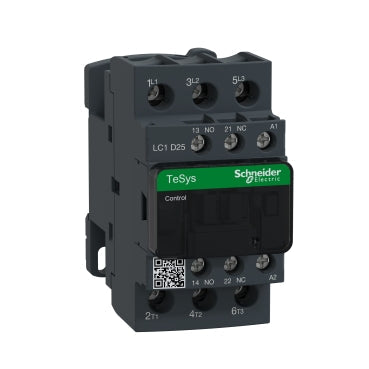

Schneider Electric LC1D25M7 Contactor | 25A 600V 3NO TeSys D

Product Description:
The Square D LC1D25M7 is a motor contactor designed for reliable motor control applications. It features a 220 VAC coil and is rated for 600V operation with a 25A inductive full load current. This contactor supports a wide range of horsepower ratings for both single-phase and three-phase motors. It is suitable for various industrial and commercial electrical systems.

Key Features:
✔ Part Number: LC1D25M7
✔ Manufacturer: Schneider Electric
✔ Category: Motor Control
✔ Subcategory: Motor Control Part And Accessory
✔ Voltage: 600
✔ Horse Power: 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 115 V AC 50/60 Hz for 1 phase motors-7.5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-15 hp at 460/480 V AC 50/60 Hz for 3 phases motors-20 hp at 575/600 V AC 50/60 Hz for 3 phases motors-7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Full Load Amps: Full Load Amps-Inductive 25A Full Load Amps-Resistive 40A
✔ Mounting: Plate,Rail
✔ Frequency: AC 50/60 Hz
✔ UPC: 785901207160
✔ GTIN: 03389110349764
✔ Country of Origin: Indonesia
✔ Dimensions: 45 mm x 85 mm
✔ Weight: 1
✔ Certification: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, BV, GL, LROS, GOST, UL, DNV, CCC, CSA, RINA, UKCA, THIEC 60068-2-30
