Square D LC1D25U7 Contactor 3P 690V 25A 240V Coil TeSys D

Product Description:

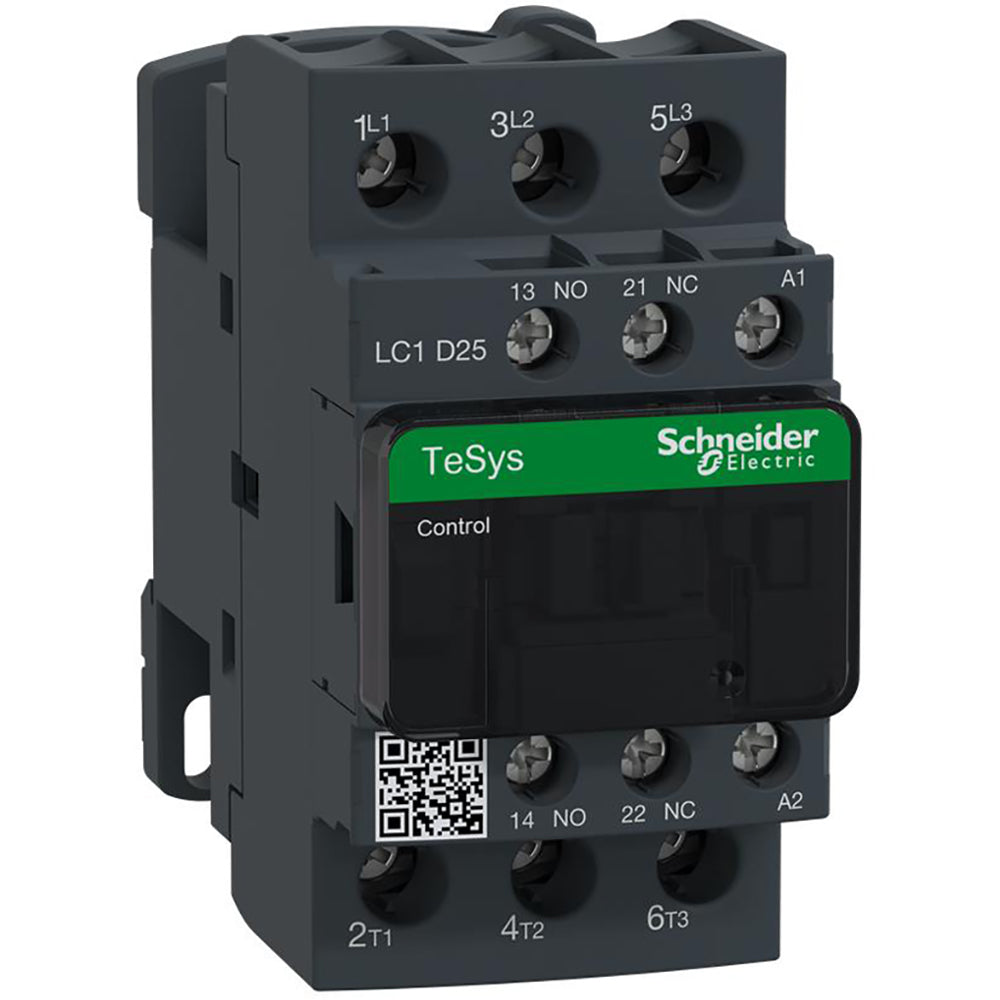

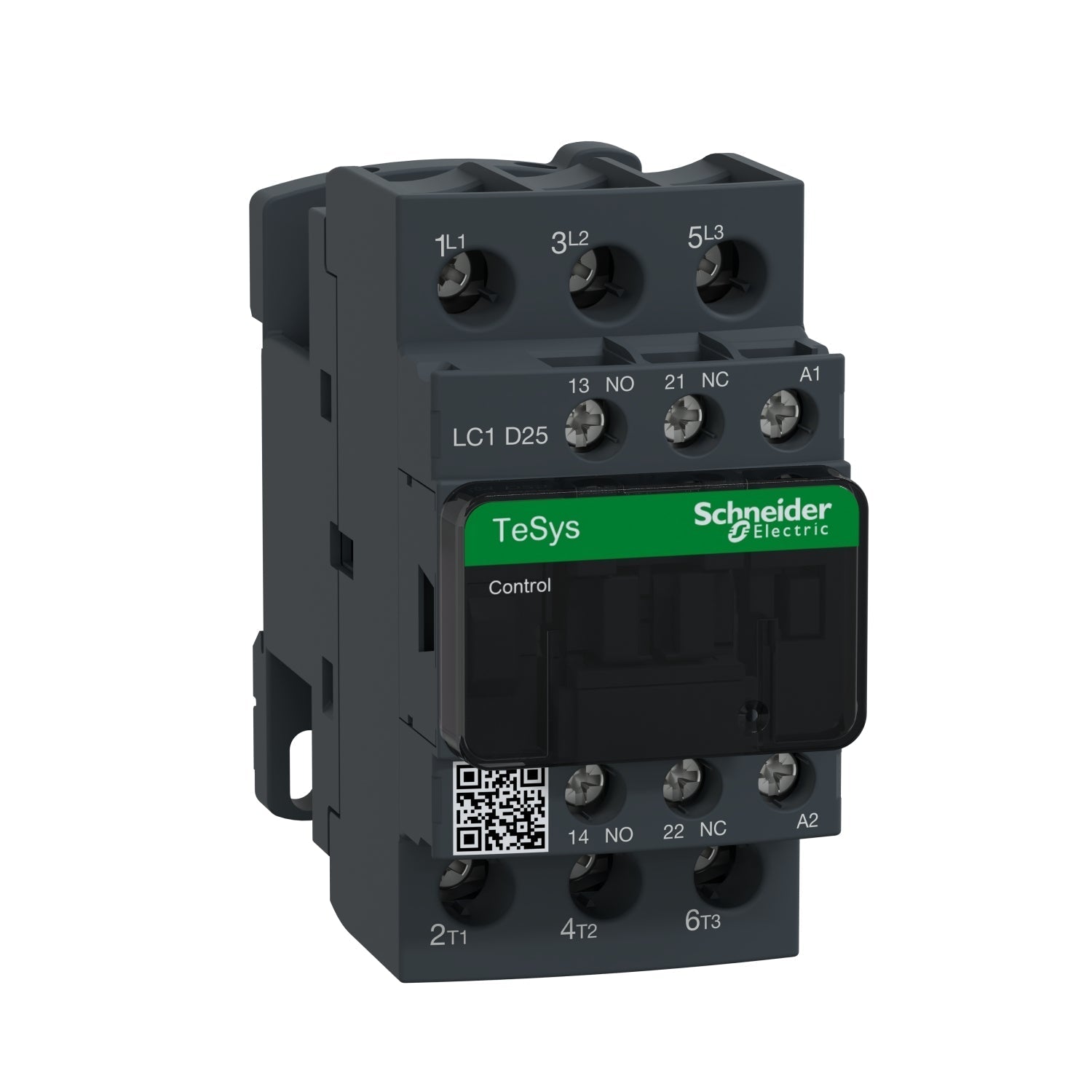

The Square D LC1D25U7 TeSys D Contactor is a 3-pole, 3-phase starter rated for 690V and 25A. It supports a range of horsepower ratings for both single-phase and three-phase motors, including 3 hp at 230/240V and 20 hp at 575/600V. This model comes equipped with a 240V AC coil and is designed for reliable motor control in industrial applications.

Key Features:
✔ Part Number: LC1D25U7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: TeSys D
✔ Type: LC1D
✔ Voltage: 690
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 115 V AC 50/60 Hz for 1 phase motors-7.5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-15 hp at 460/480 V AC 50/60 Hz for 3 phases motors-20 hp at 575/600 V AC 50/60 Hz for 3 phases motors-7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 240
✔ Full Load Amps: Full Load Amps-Inductive 25A Full Load Amps-Resistive 40A
✔ Coil Voltage Minimum: 240
✔ Frequency: AC 50/60 Hz
✔ UPC: 785901207177
✔ GTIN: 03389110350081
✔ Country of Origin: Indonesia
✔ Dimensions: 1.77 in x 3.36 in
✔ Weight: 2
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
