Product Description:

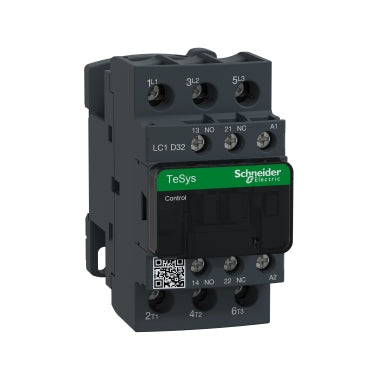

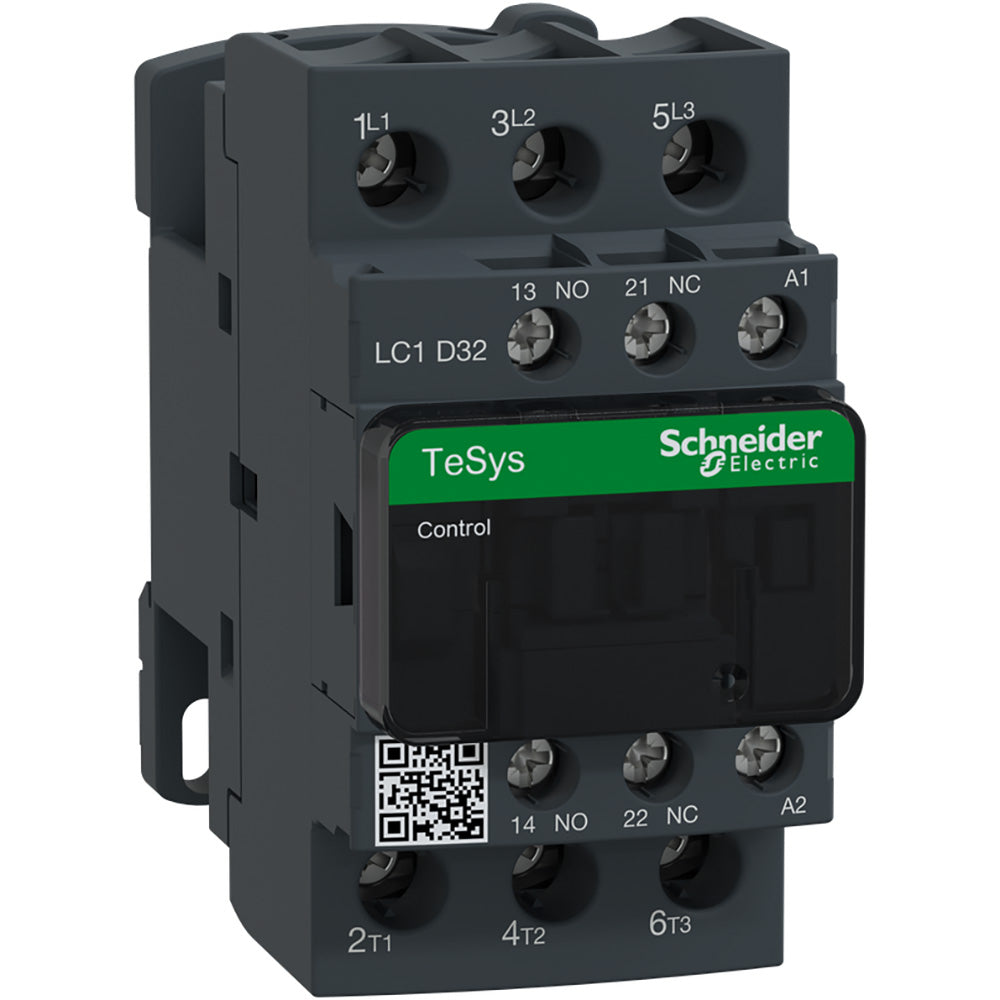

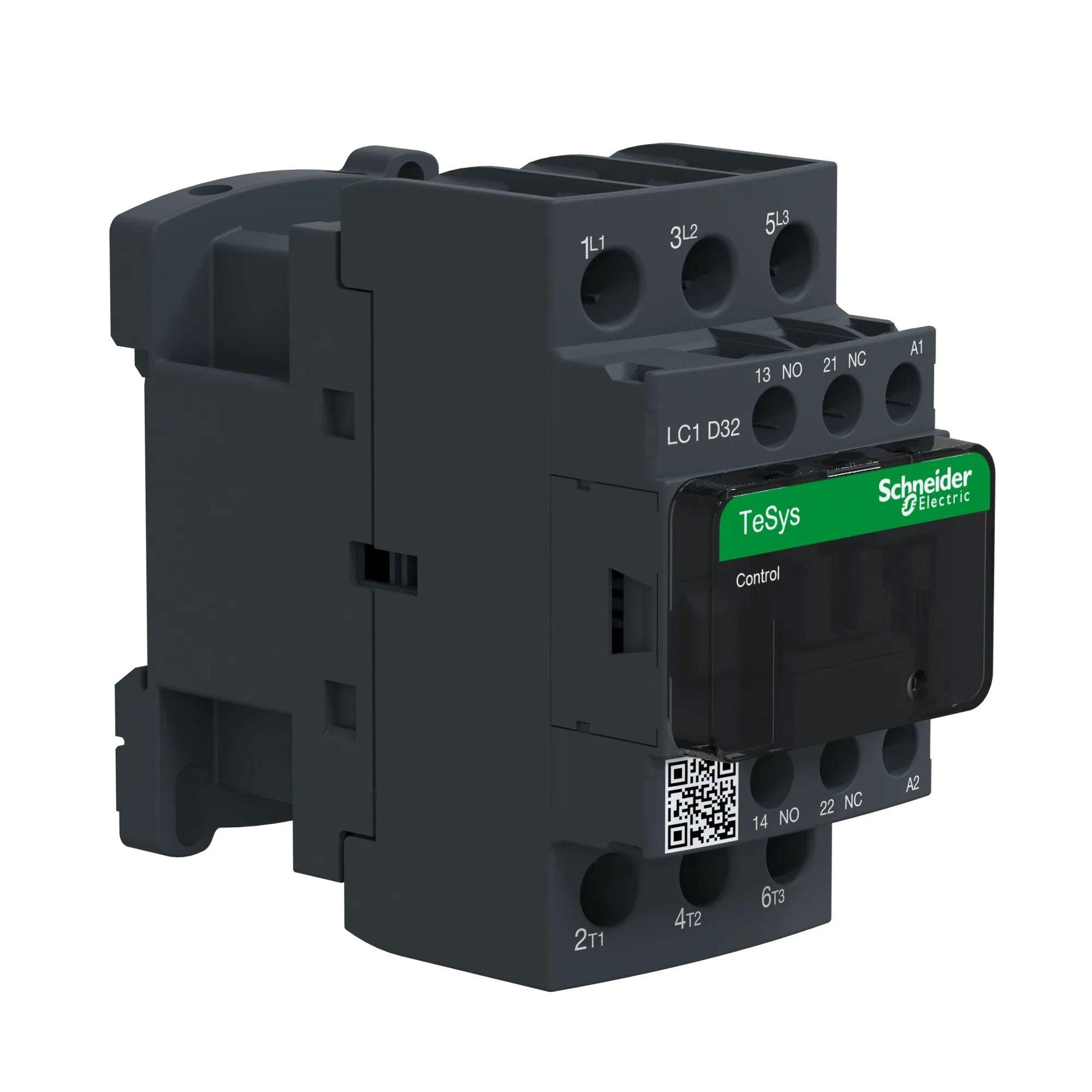

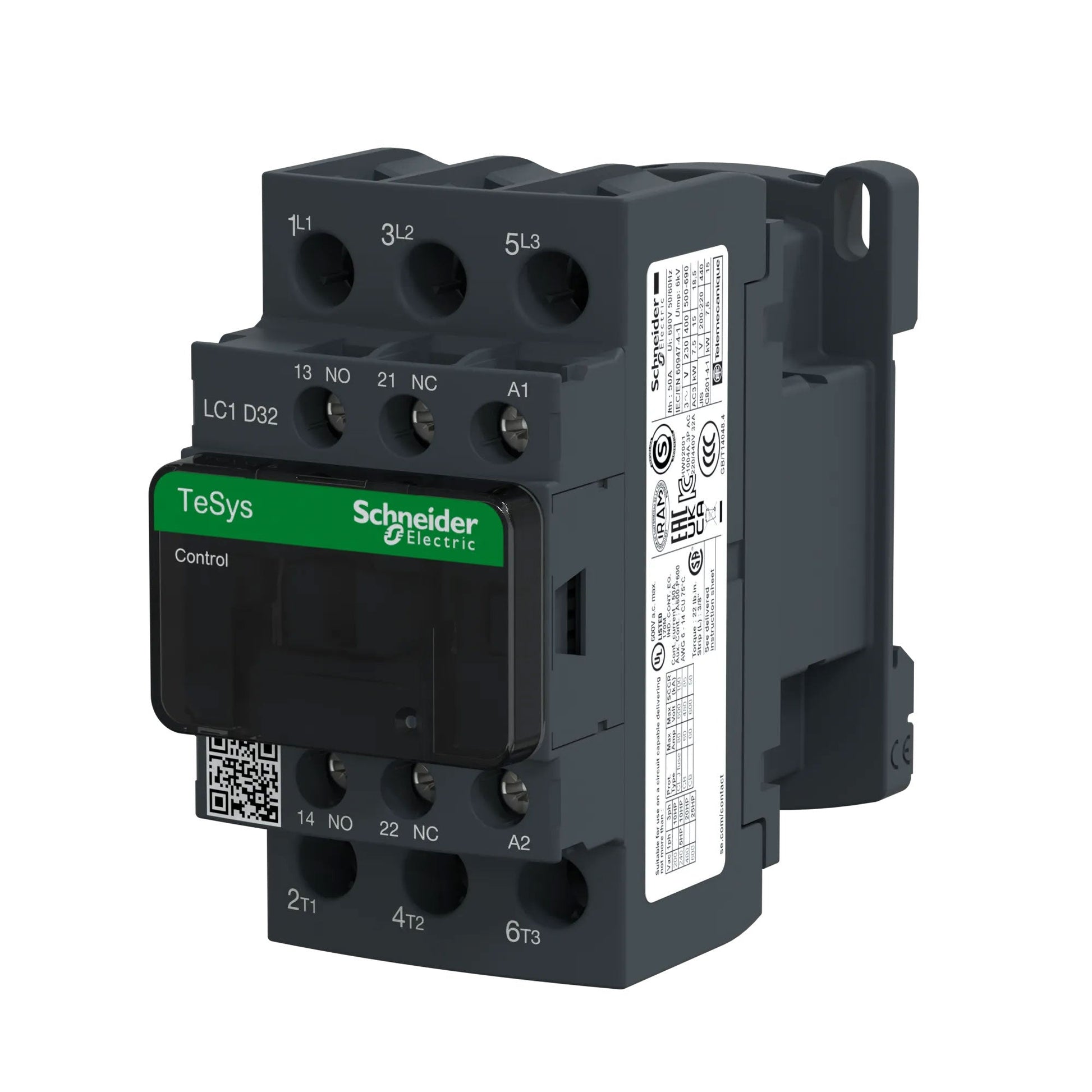

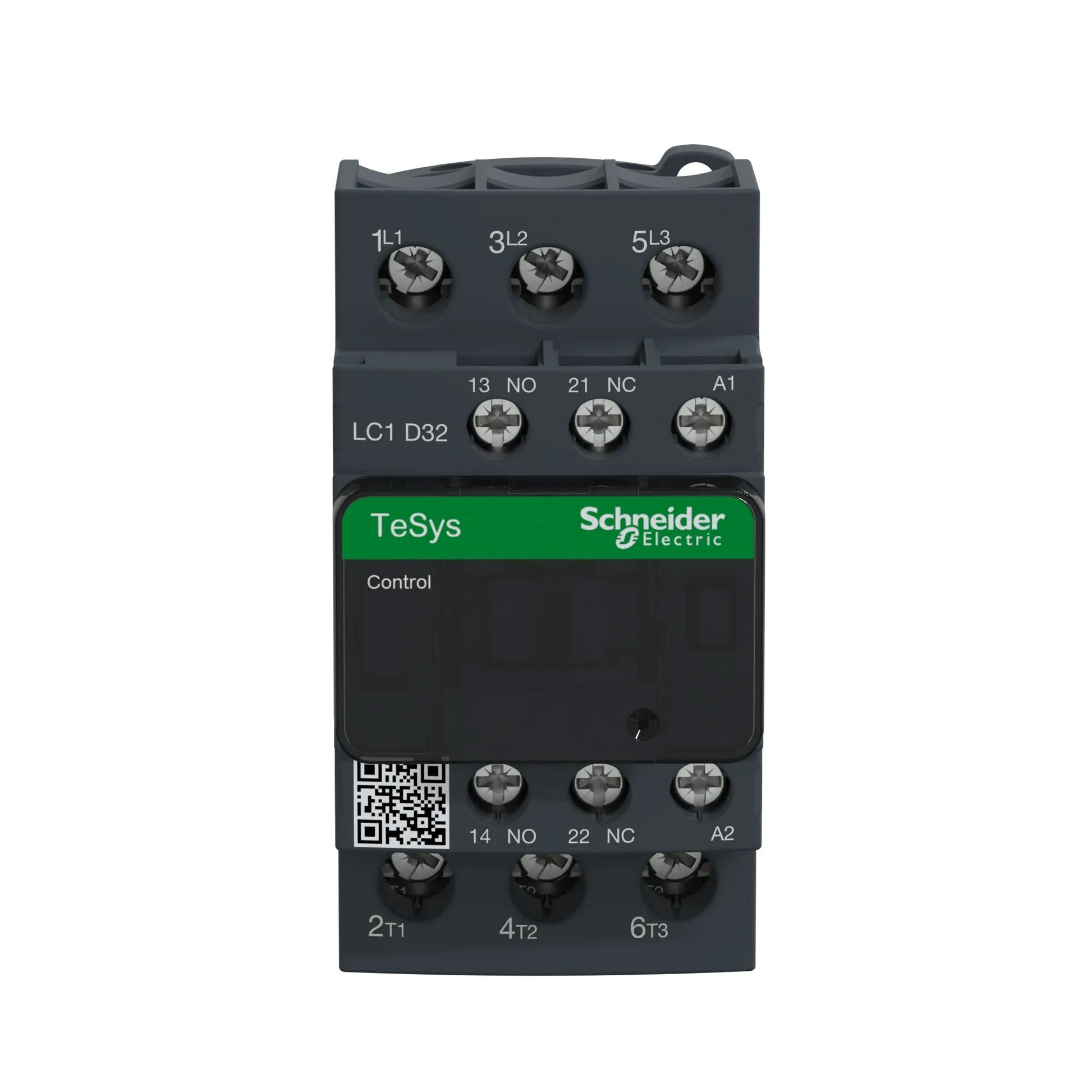

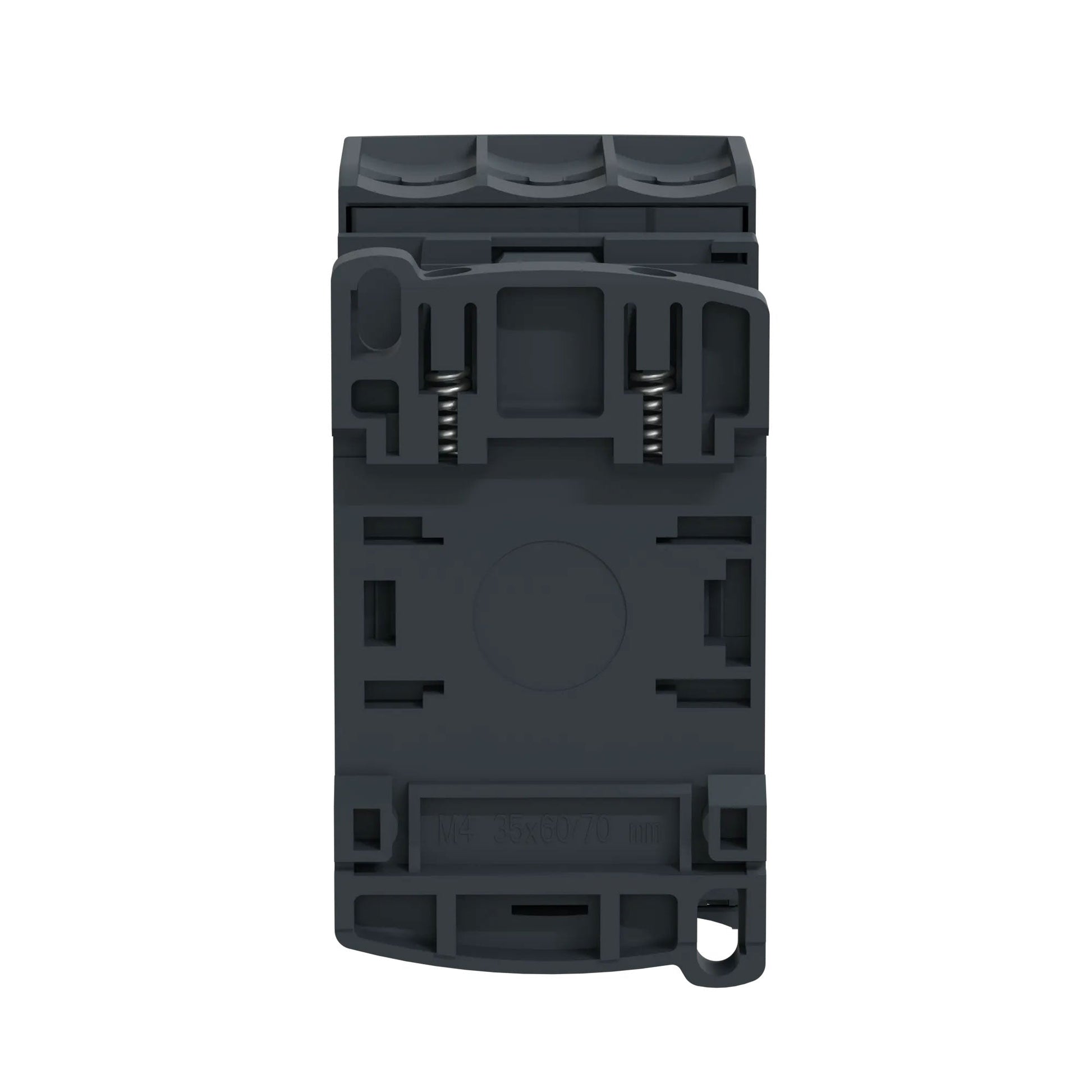

The Square D LC1D32G7 is a 600V 3-phase 50A 3-pole contactor starter with a 120V coil. It supports various horsepower ratings, including 2 hp at 115V for single-phase motors and up to 25 hp at 575/600V for three-phase motors. This contactor is designed for reliable motor control in industrial applications.
Key Features:
✔ Part Number: LC1D32G7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 2 hp at 115V AC 50/60 Hz (1 phase)-5 hp at 230/240V AC 50/60 Hz (1 phase)-10 hp at 200/208V AC 50/60 Hz (3 phase)-10 hp at 230/240V AC 50/60 Hz (3 phase)-20 hp at 460/480V AC 50/60 Hz (3 phase)-25 hp at 575/600V AC 50/60 Hz (3 phase)
✔ Aux Contacts: 1NO/1NC
✔ Full Load Amps: Inductive 32A, Resistive 50A
✔ Coil Voltage Minimum: 120
✔ Mounting: Rail/Plate
✔ UPC: 785901207207
✔ GTIN: 03389110350814
✔ Country of Origin: Indonesia
✔ Dimensions: 1.77 in x 3.36 in
✔ Weight: 0.91
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
