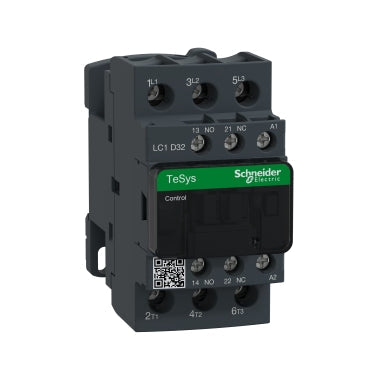

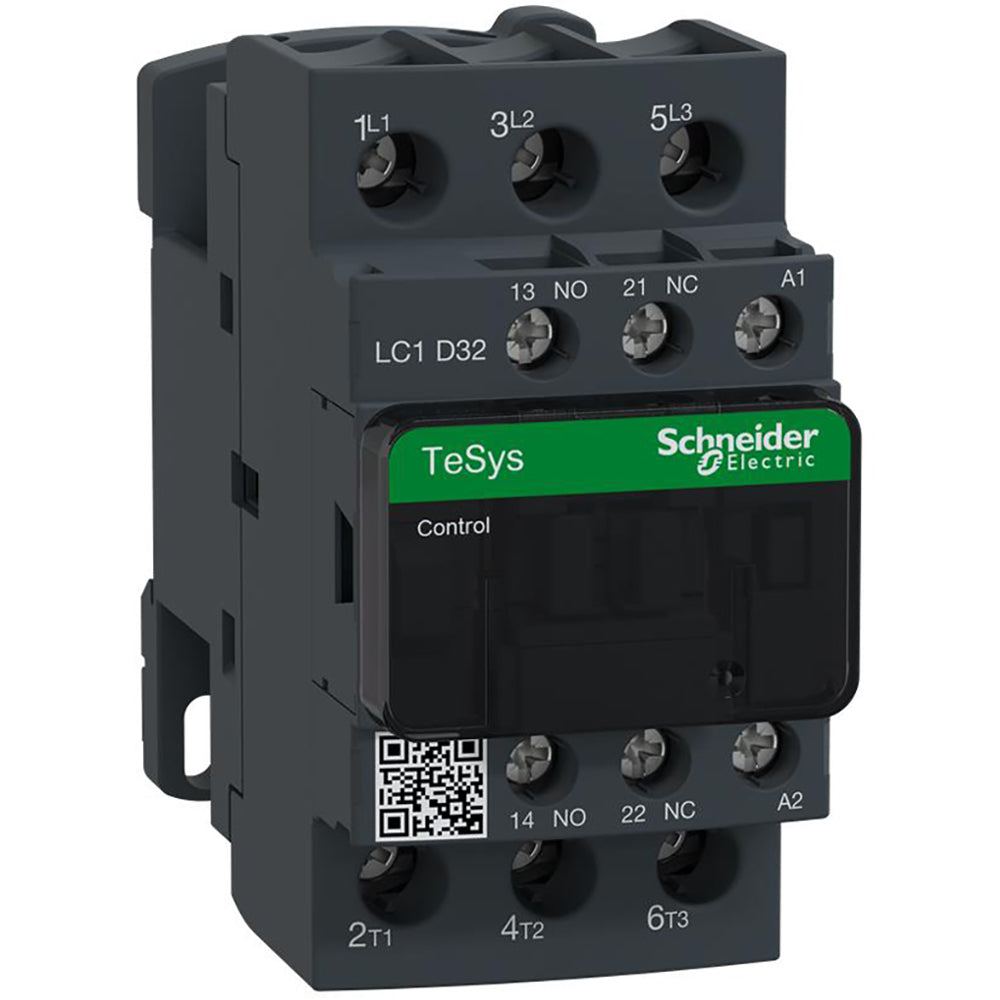

Schneider Electric LC1D32U7 Contactor 3 Phase 240V Coil 3 NO Aux Contacts TeSys D

Product Description:
The Schneider Electric LC1D32U7 is a 3-phase contactor designed for reliable motor control. It supports a range of horsepower ratings for both single-phase and three-phase motors, including 2 hp at 115V AC and up to 25 hp at 575/600V AC. This unit comes equipped with a 240V AC coil and includes three normally open auxiliary contacts for flexible integration into control systems.

Key Features:
✔ Part Number: LC1D32U7
✔ Manufacturer: Telemecanique/Schneider Electric
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Phase: 3
✔ Horse Power: 2 hp at 115 V AC 50/60 Hz for 1 phase motors-5 hp at 230/240 V AC 50/60 Hz for 1 phase motors-10 hp at 200/208 V AC 50/60 Hz for 3 phases motors-10 hp at 230/240 V AC 50/60 Hz for 3 phases motors-20 hp at 460/480 V AC 50/60 Hz for 3 phases motors-25 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Full Load Amps: Full Load Amps-Inductive 32A Full Load Amps-Resistive 50A
✔ Coil Voltage Minimum: 240
✔ Frequency: 50/60 Hz
✔ UPC: 785901207221
✔ GTIN: 03389110351729
✔ Country of Origin: Czechia
✔ Dimensions: 1.77 in x 3.36 in
✔ Weight: 0.924
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
