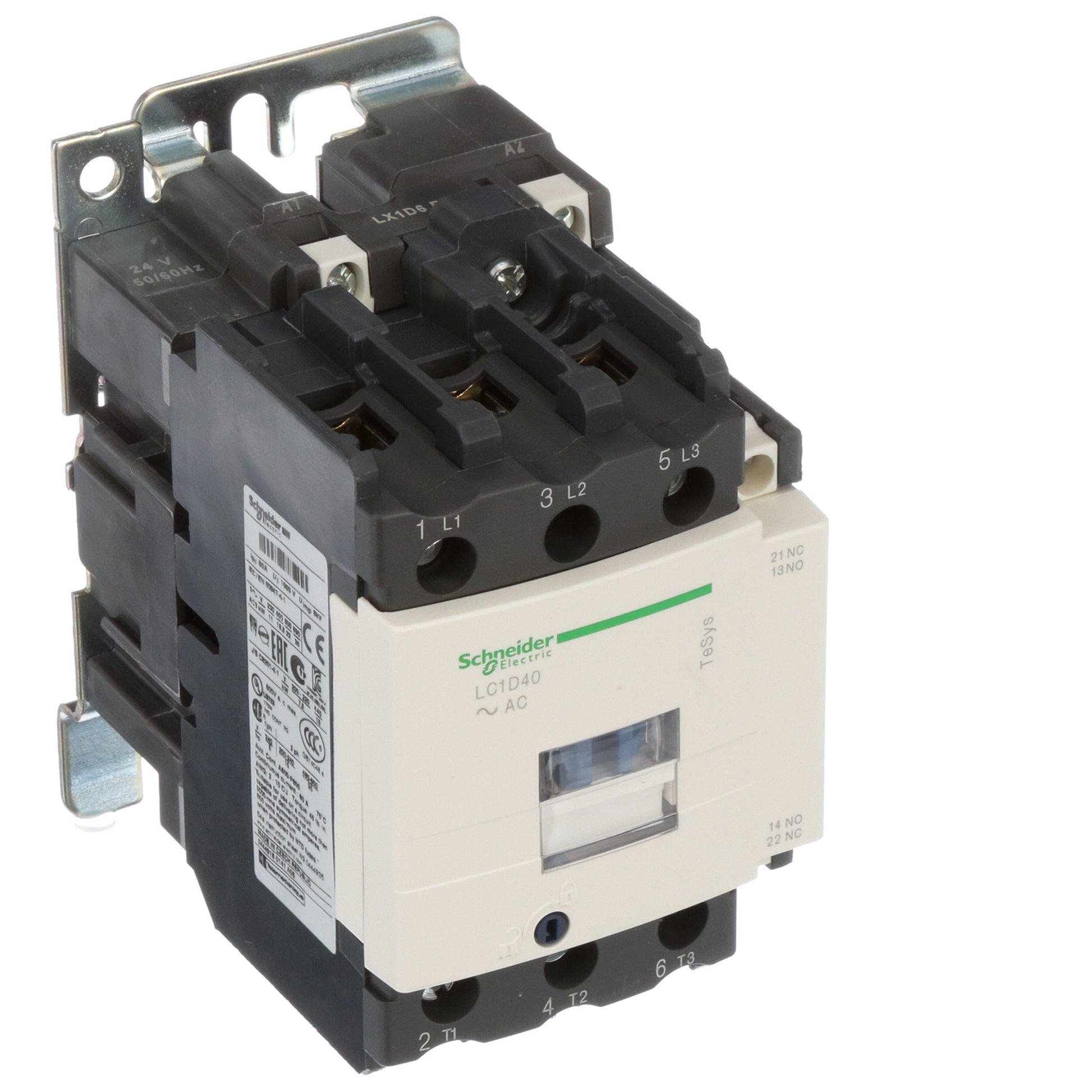

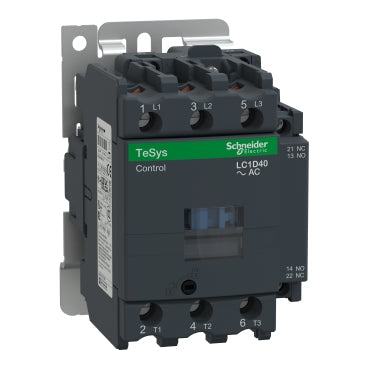

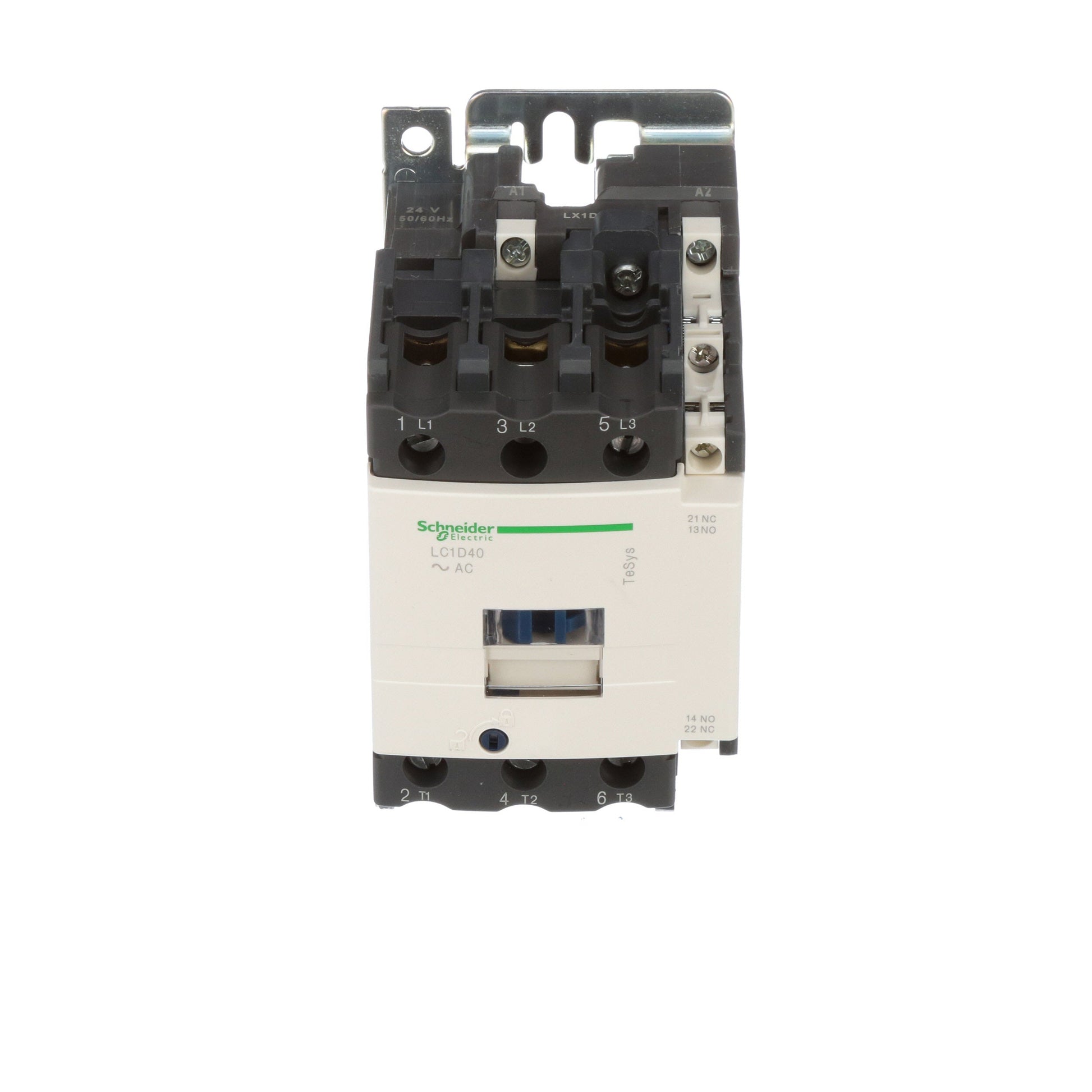

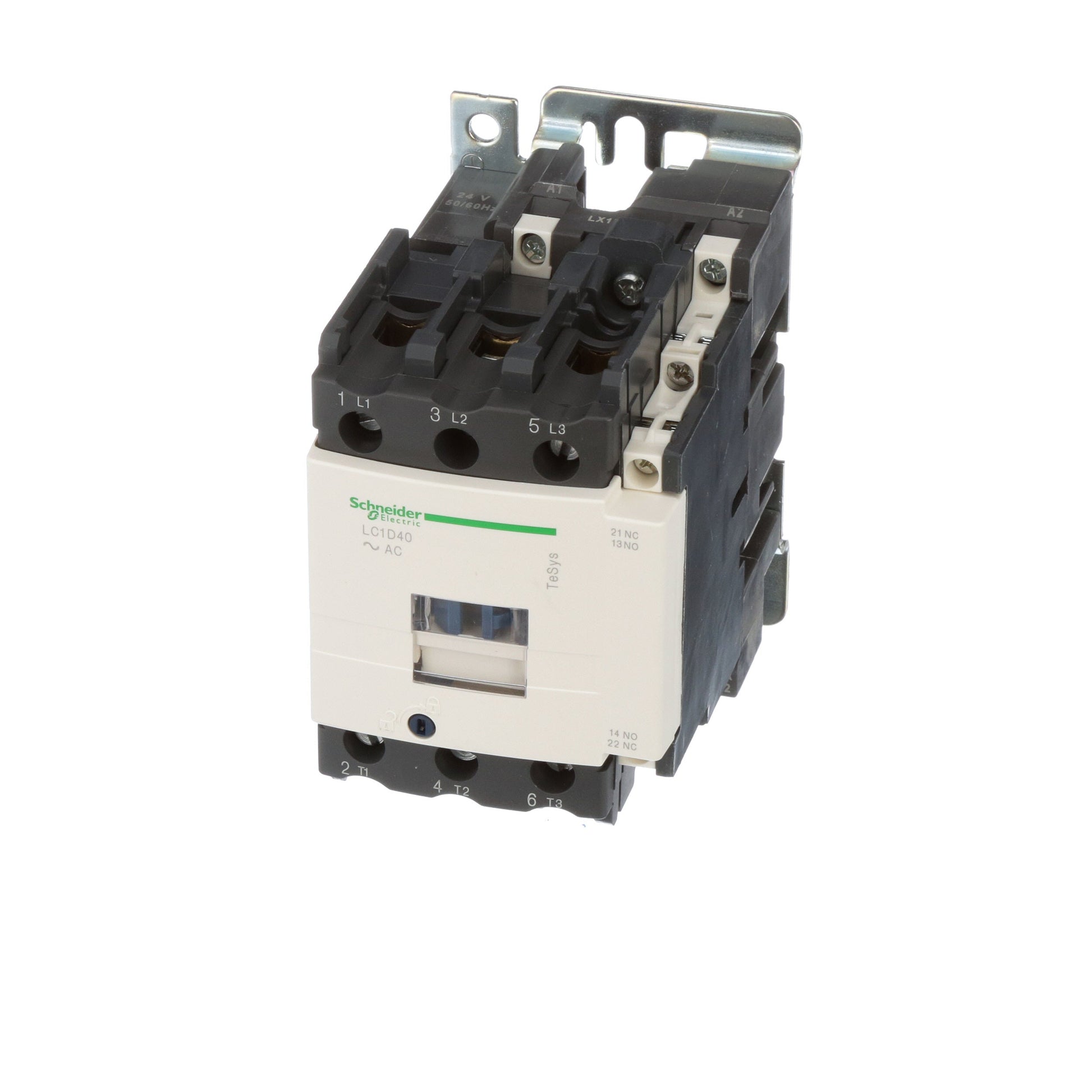

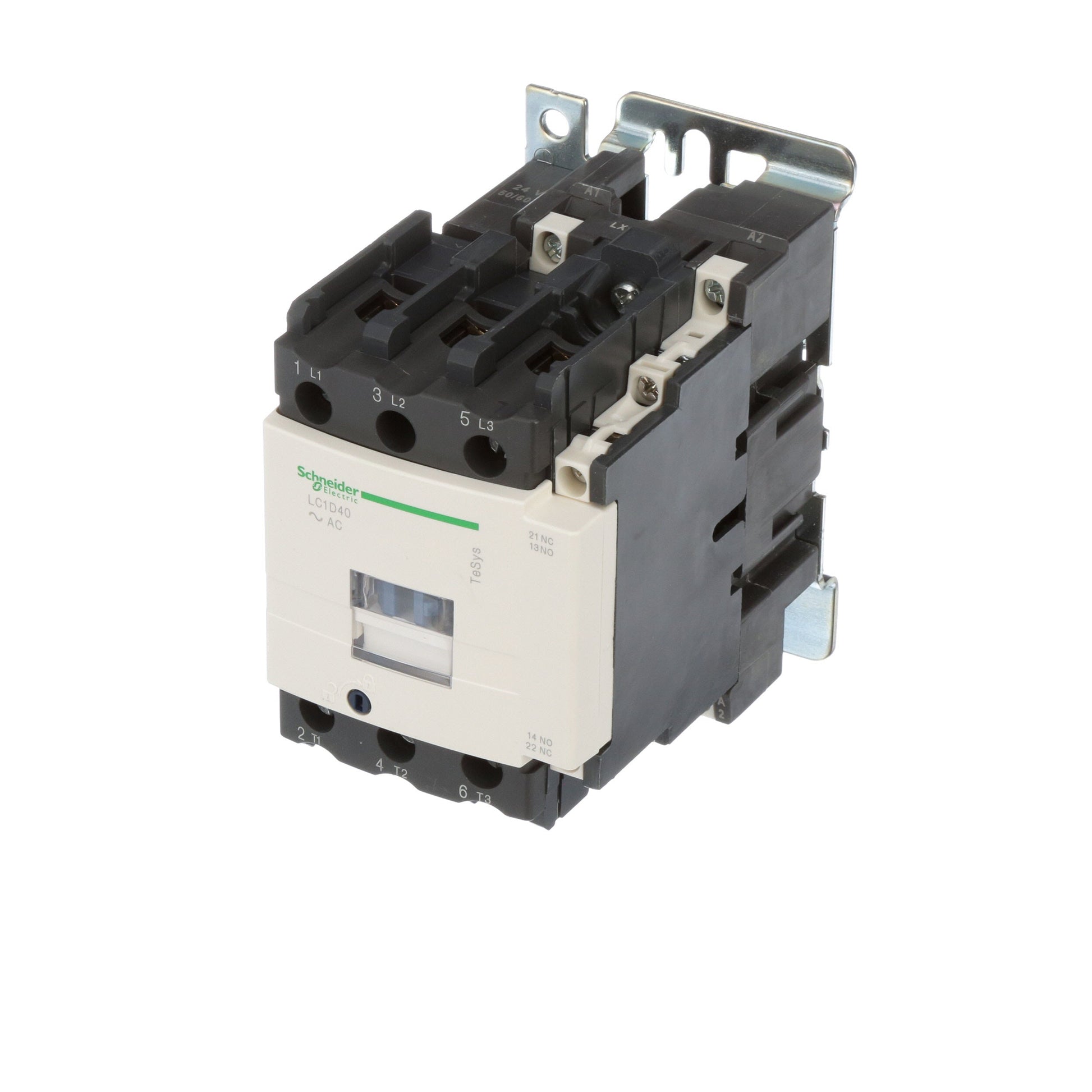

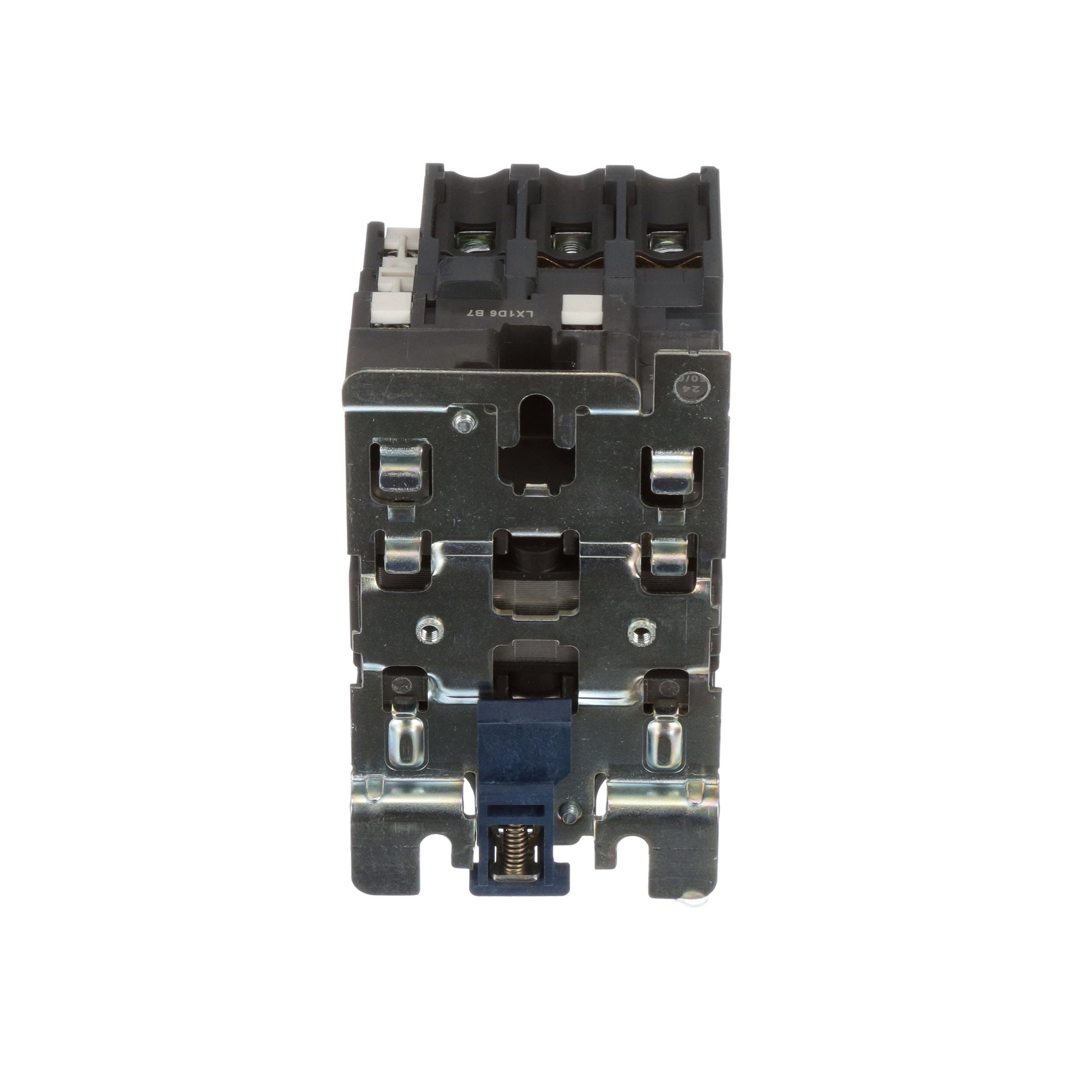

Square D LC1D40B7 Contactor | 3P 3Ph 600V 60A 24V Coil
Square D LC1D40B7 Contactor | 3P 3Ph 600V 60A 24V Coil
Price:
Sale
Sold out
Regular price
$447.89 USD
Regular price
$357.59 USD
Sale price
$447.89 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 7 left
Couldn't load pickup availability
Product Description:
The Square D LC1D40B7 is a 3-phase, 3-pole contactor rated for 600V and 60A operation. It is designed for motor starting applications with a 24V coil and supports a range of horsepower ratings across different voltages. This contactor is suitable for various industrial and commercial motor control needs.
Key Features:
✔ Part Number: LC1D40B7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 3 hp at 115 V AC 60 Hz for 1 phase motors-5 hp at 230/240 V AC 60 Hz for 1 phase motors-10 hp at 200/208 V AC 60 Hz for 3 phases motors-10 hp at 230/240 V AC 60 Hz for 3 phases motors-30 hp at 460/480 V AC 60 Hz for 3 phases motors-30 hp at 575/600 V AC 60 Hz for 3 phases motors
✔ Aux Contacts: 1 NO + 1 NC
✔ Full Load Amps: Full Load Amps-Inductive 40A Full Load Amps-Resistive 60A
✔ Coil Voltage Minimum: 24
✔ Mounting: Rail
✔ GTIN: 03389110416503
✔ Country of Origin: Czechia
✔ Dimensions: 75 mm x 127 mm
✔ Weight: 1.45
✔ Certification: EN 60947-5-1, IEC 60947-5-1, EN 60947-4-1, IEC 60947-4-1, CSA C22.2 No 14, UL 508, LROS, DNV, RINA, CSA, GL, UL, CCC, BV, GOST, UKCA
