Product Description:

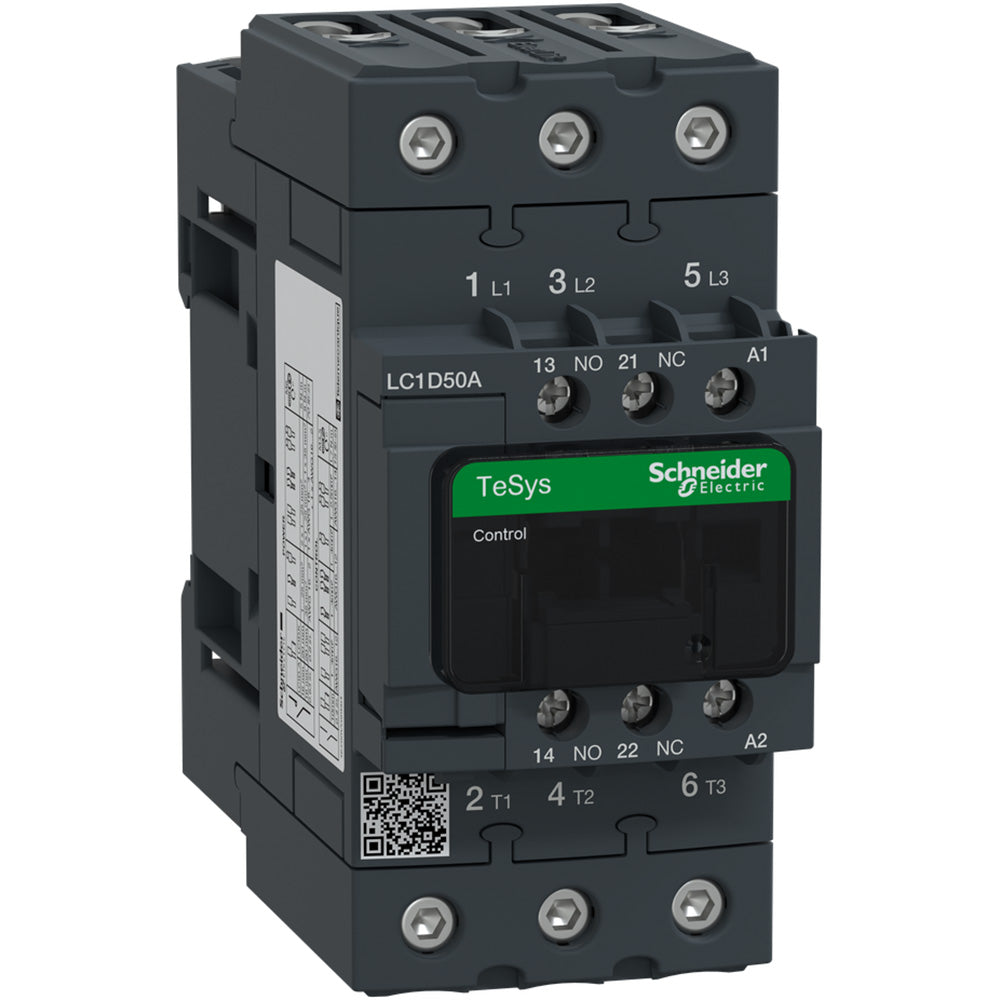

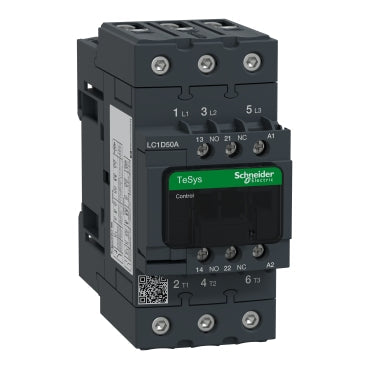

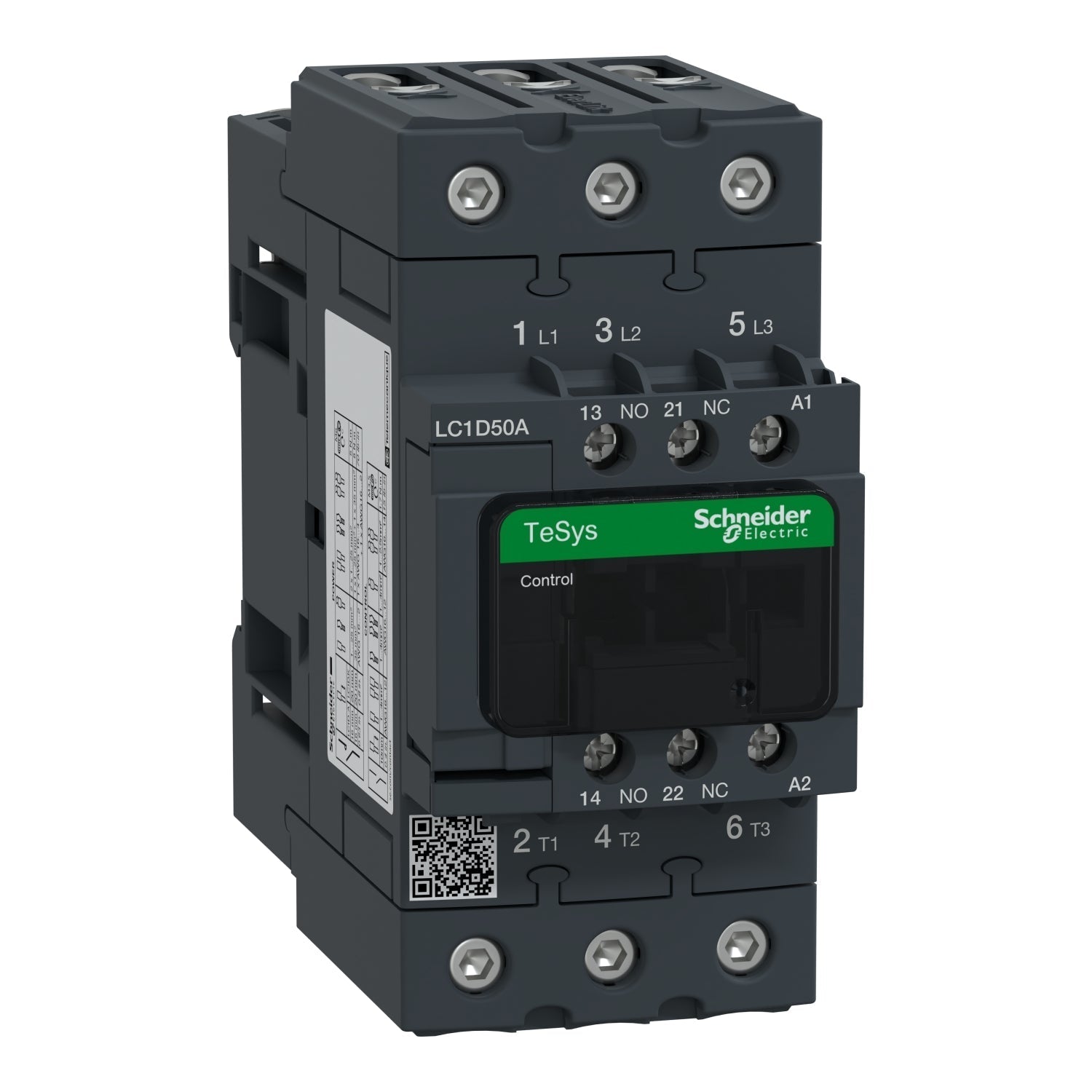

The Square D LC1D50AG7 TeSys D Contactor is a 600V 80A 3 pole starter designed for motor control. It supports various horsepower ratings, including 3 hp at 115V AC for single-phase motors and up to 40 hp at 575/600V AC for three-phase motors. This contactor comes with a 120V coil and includes 1NO/1NC auxiliary contacts for versatile applications.
Key Features:
✔ Part Number: LC1D50AG7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: TeSys D
✔ Type: LC1D
✔ Voltage: 600
✔ Amperage: 80
✔ Poles: 3
✔ Horse Power: 3 hp at 115 V AC 50/60 Hz for 1 phase motors-7.5 hp at 230/240 V AC 50/60 Hz for 1 phase motors-15 hp at 200/208 V AC 50/60 Hz for 3 phases motors-15 hp at 230/240 V AC 50/60 Hz for 3 phases motors-40 hp at 460/480 V AC 50/60 Hz for 3 phases motors-40 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 1NO/1NC
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 50A Full Load Amps-Resistive 80A
✔ Coil Voltage Minimum: 120
✔ UPC: 785901934622
✔ GTIN: 03389119408677
✔ Country of Origin: Indonesia
✔ Dimensions: 2.17 in x 2.17 in
✔ Weight: 3
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
