Product Description:

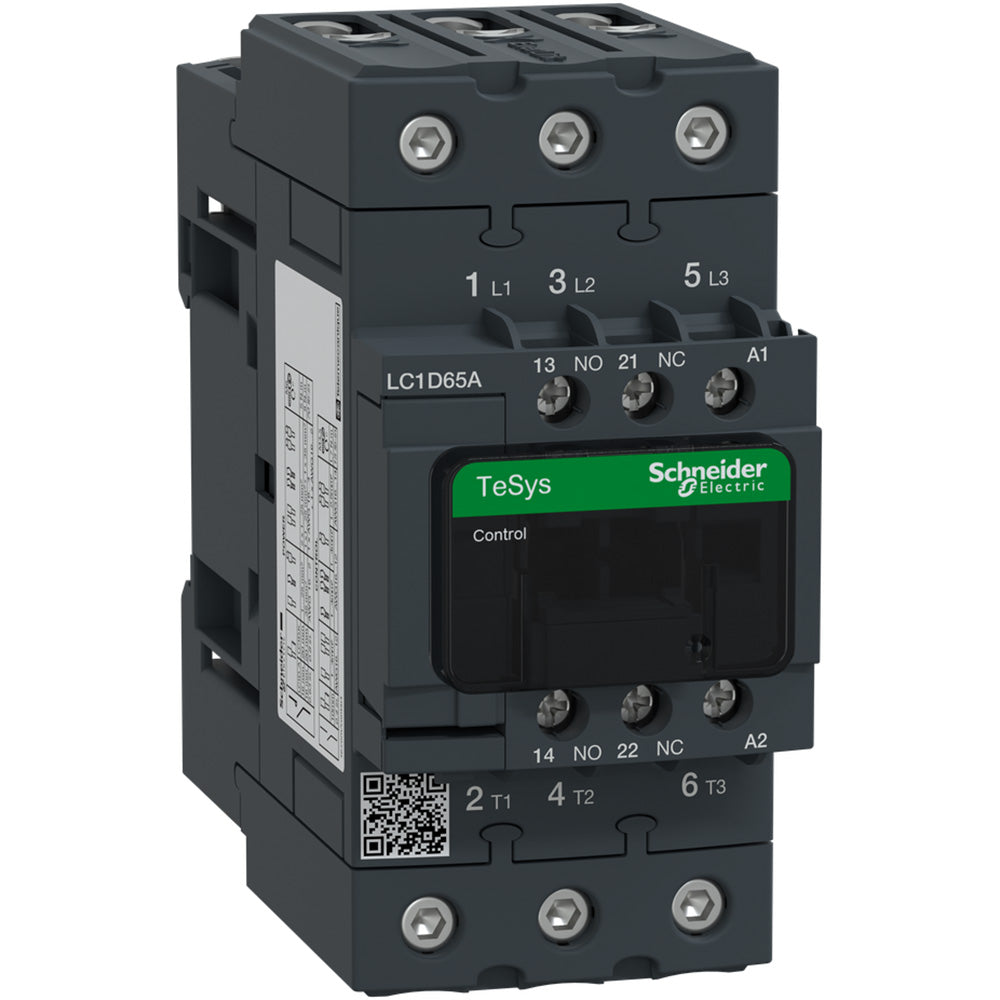

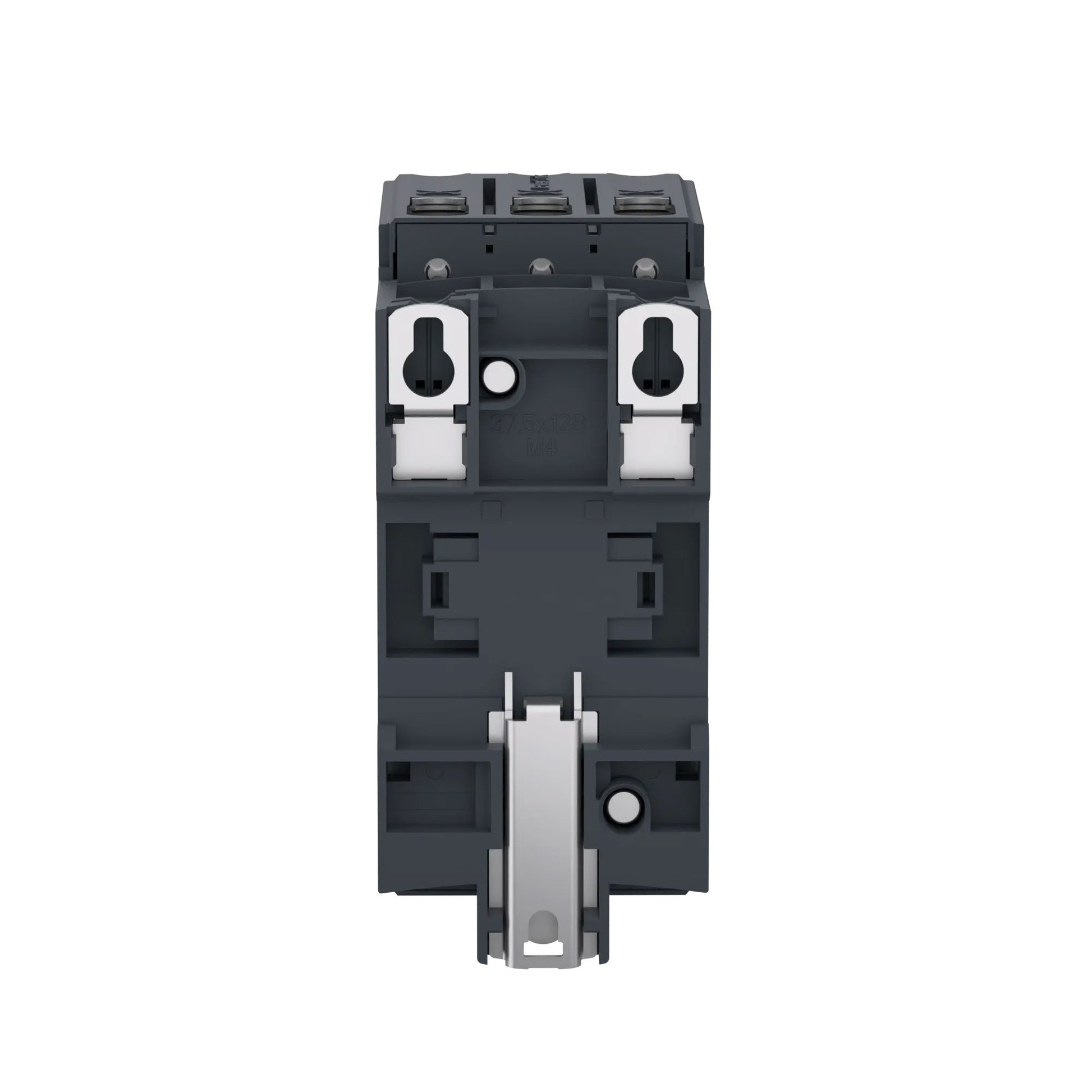

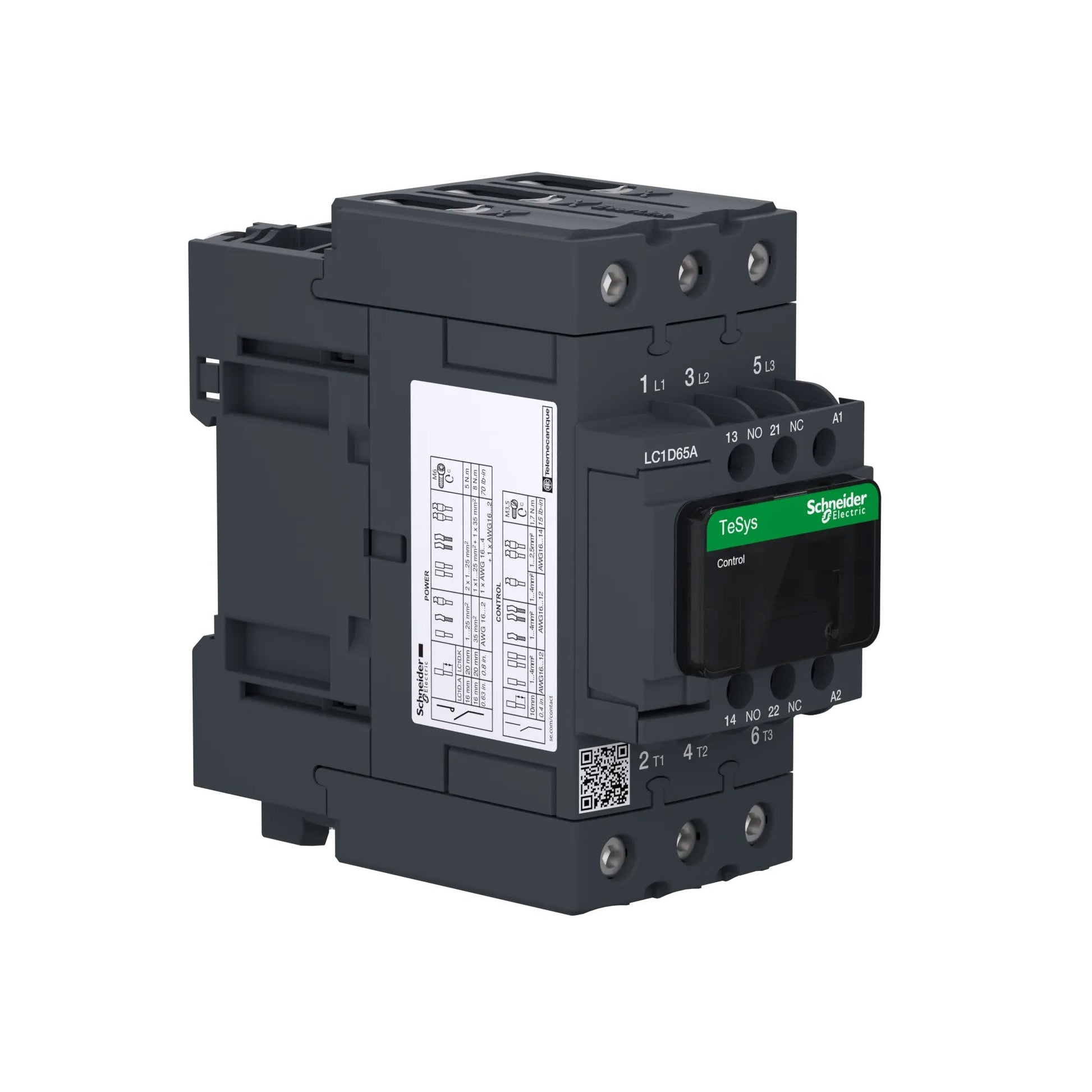

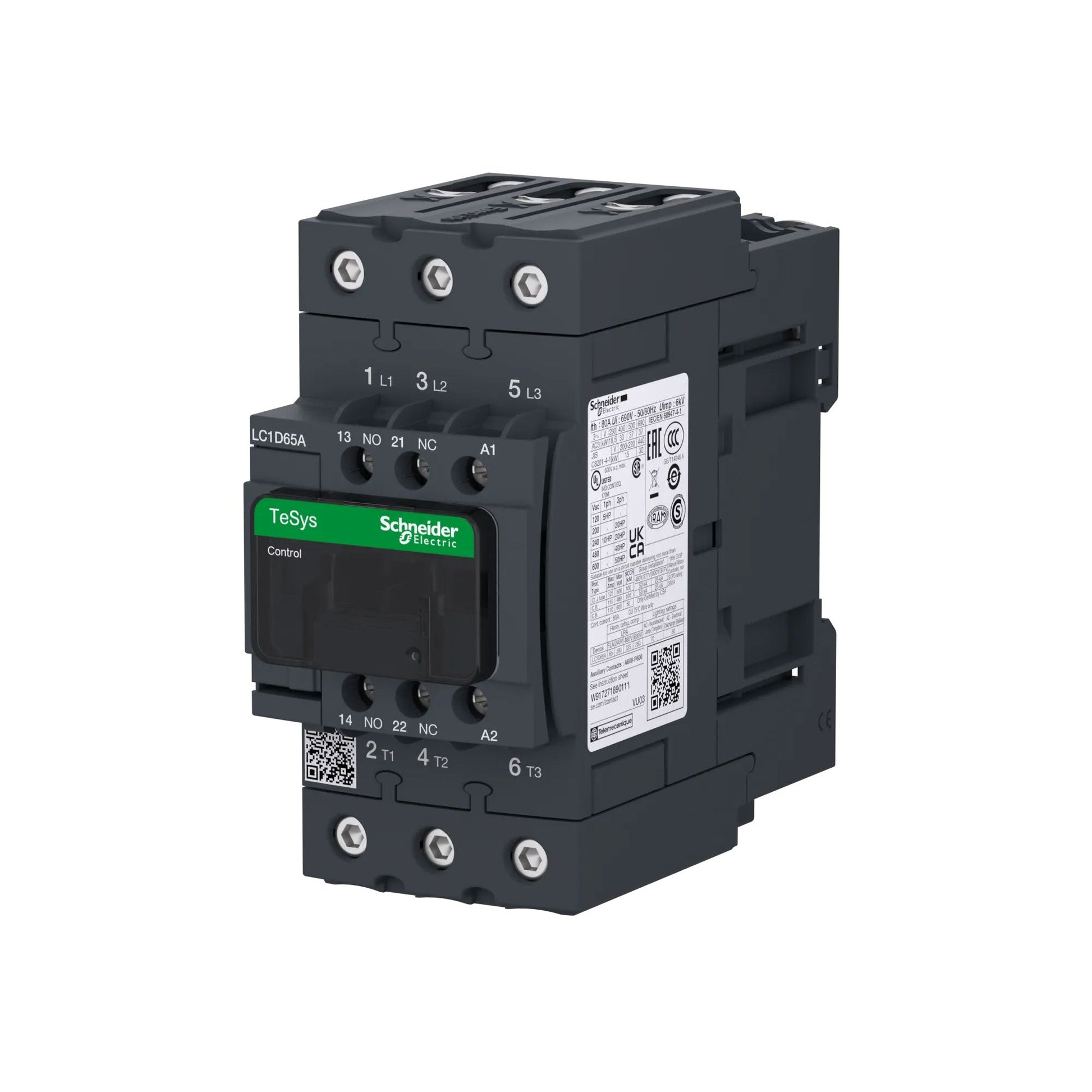

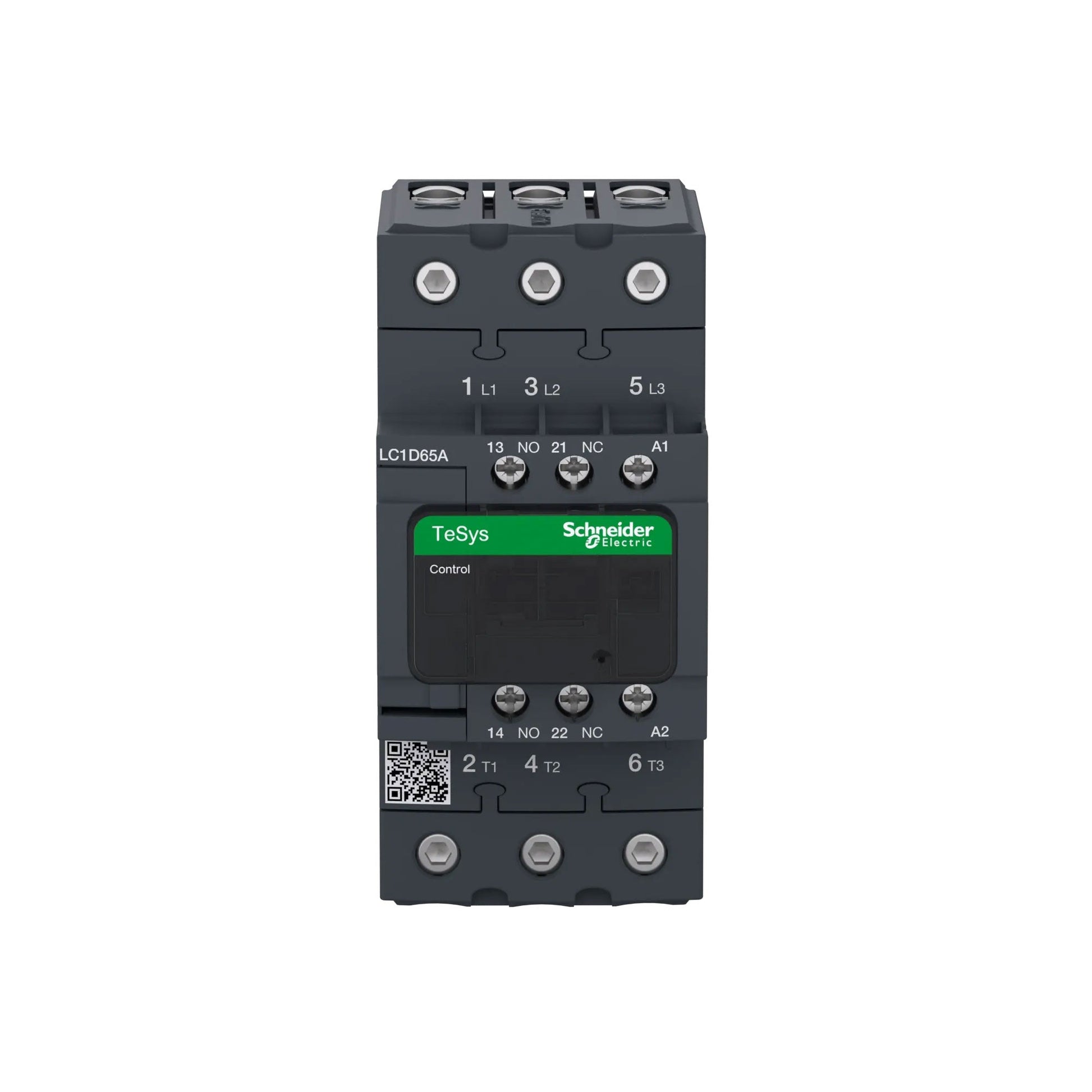

The Square D LC1D65AG7 is a 600V 3-phase 80A 3-pole contactor starter. It supports various horsepower ratings, including 40 hp at 460/480V AC for 3-phase motors and 50 hp at 575/600V AC. This model comes with a 120V coil and is suitable for industrial motor control applications.
Key Features:
✔ Part Number: LC1D65AG7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 40 hp at 460/480 V AC 50/60 Hz for 3 phases motors-5 hp at 115 V AC 50/60 Hz for 1 phase motors-10 hp at 230/240 V AC 50/60 Hz for 1 phase motors-20 hp at 200/208 V AC 50/60 Hz for 3 phases motors-20 hp at 230/240 V AC 50/60 Hz for 3 phases motors-50 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 1NO/1NC
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 65A Full Load Amps-Resistive 80A
✔ Coil Voltage Minimum: 120
✔ UPC: 785901565529
✔ GTIN: 03389119408998
✔ Country of Origin: Indonesia
✔ Dimensions: 2.17 in x 4.8 in
✔ Weight: 4
✔ Certification: CCC, CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, UL Listed
